Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |

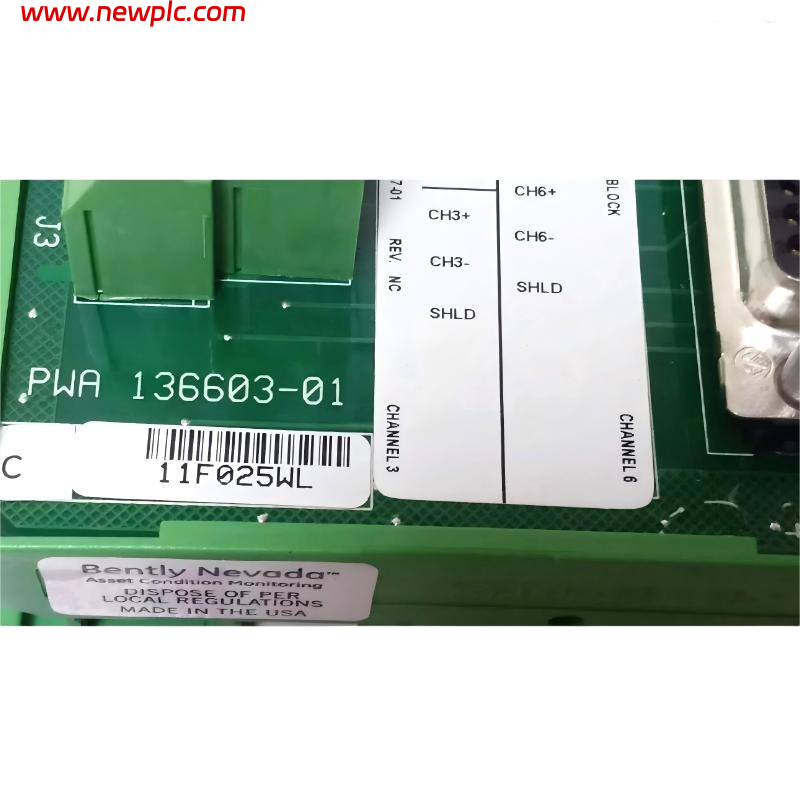

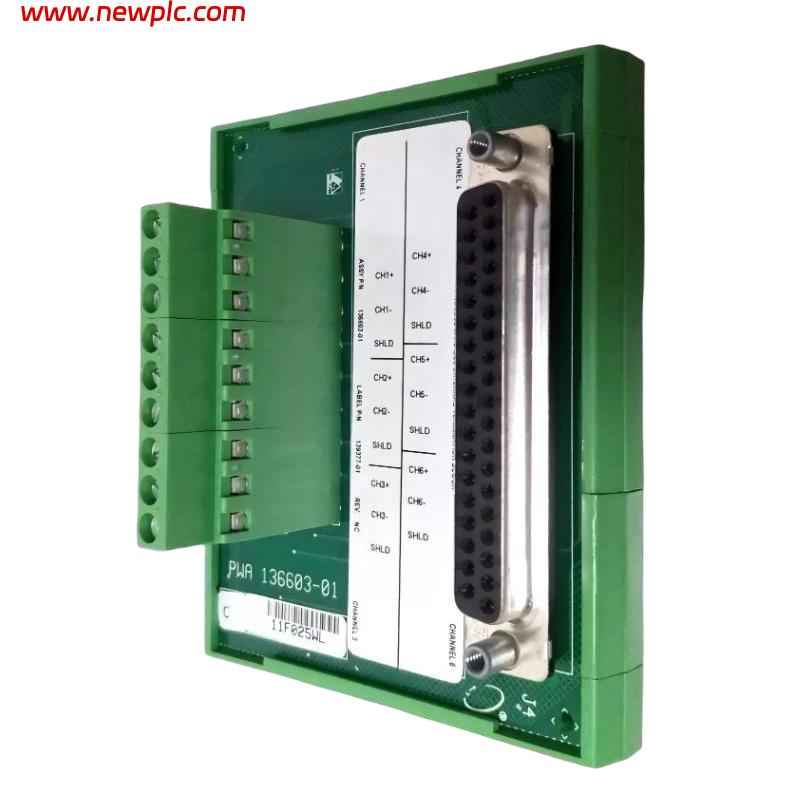

| Model / Part Number | 136603-01 |
| Product Type | Process Variable Monitor Module (3500/62 series) |
| Compatible System | Bently Nevada 3500 Machinery Protection System |
| Number of Input Channels | 6 channels for process variables |
| Supported Signal Types | 4–20 mA current; −10 V to +10 V voltage |
| Input Impedance | 250 Ω (current), 100 kΩ (voltage) |
| Output | Buffered outputs proportional to inputs |
| Accuracy | ±0.25 % of full scale |
| Power Supply | 18 VDC to 36 VDC |
| Power Consumption | Up to ~10.5 W |
| Measurement Range | Configurable 0–100 % of input span |
| Resolution | ~0.01 % of full scale |
| Frequency Response | DC to 100 Hz |
| Update Rate | ~100 ms per channel |
| Operating Temperature | −30 °C to +65 °C |
| Humidity | 0–95 % non-condensing |
| Dimensions (L × W × H) | 241 × 24.4 × 163 mm |
| Net Weight | 0.7 kg |
| Typical Use | Continuous monitoring of process variables (pressure, flow, temperature) in industrial machinery |
FAQ
FAQ
Q1: What is the Bently Nevada 136603-01 used for?
It continuously monitors process variables such as pressure, flow, and temperature and converts them into conditioned signals for machinery protection systems.
Q2: How many input channels does this module support?
It supports 6 independent input channels for different process signals.
Q3: What types of signals can be connected to this module?
It accepts 4–20 mA current loops and −10 V to +10 VDC voltage inputs.
Q4: What power supply does this module require?
The module operates from a DC voltage range of 18 V to 36 V with a maximum power consumption around 10.5 W.
Q5: What are the physical dimensions of the 136603-01 module?
The physical enclosure measures approximately 241 × 24.4 × 163 mm, making it suitable for rack mounting.
Q6: What is the net weight of this module?
The module’s net weight is about 0.7 kg, excluding packaging and accessories.
Q7: What environmental conditions can this monitor tolerate?
It is designed to operate in industrial environments with temperatures from −30 °C to +65 °C and non-condensing humidity up to 95 %.
Q8: What kind of systems is this module compatible with?
It integrates with the Bently Nevada 3500 Machinery Protection System for continuous process monitoring.
