Technical Specifications
| Parameter | Specification |
|---|---|

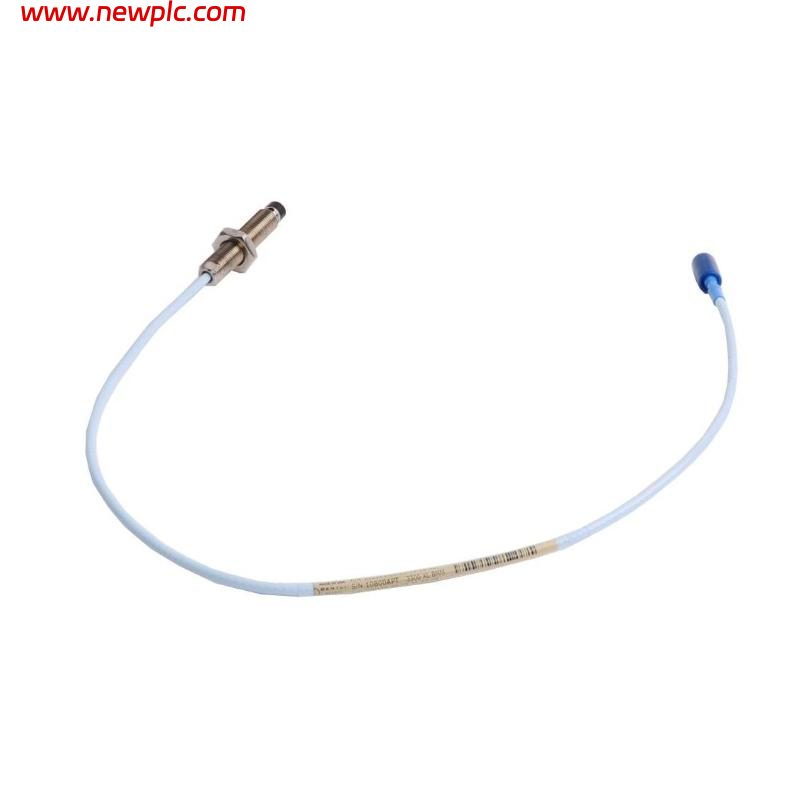

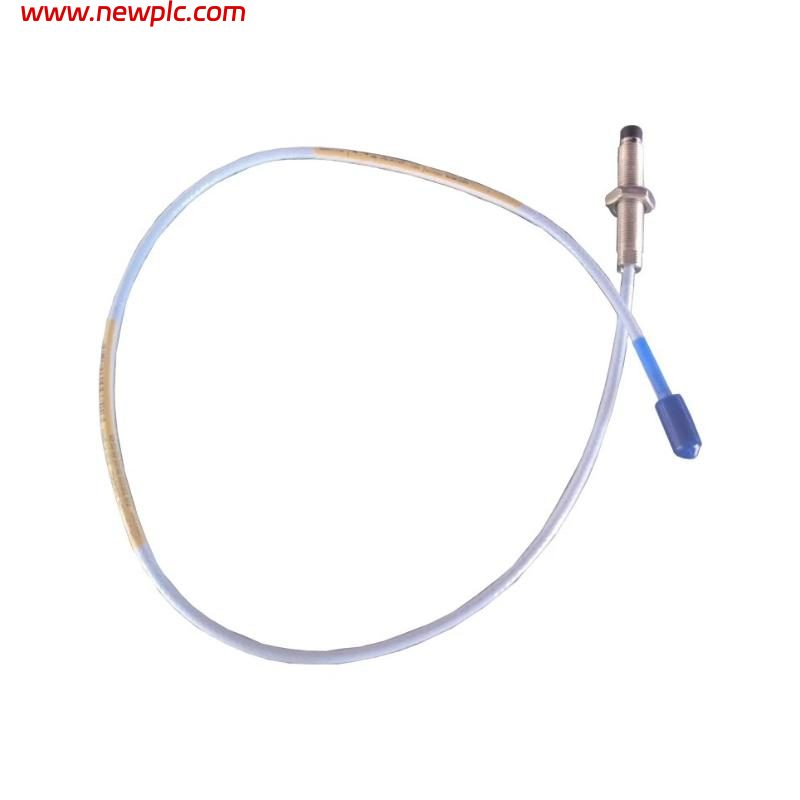

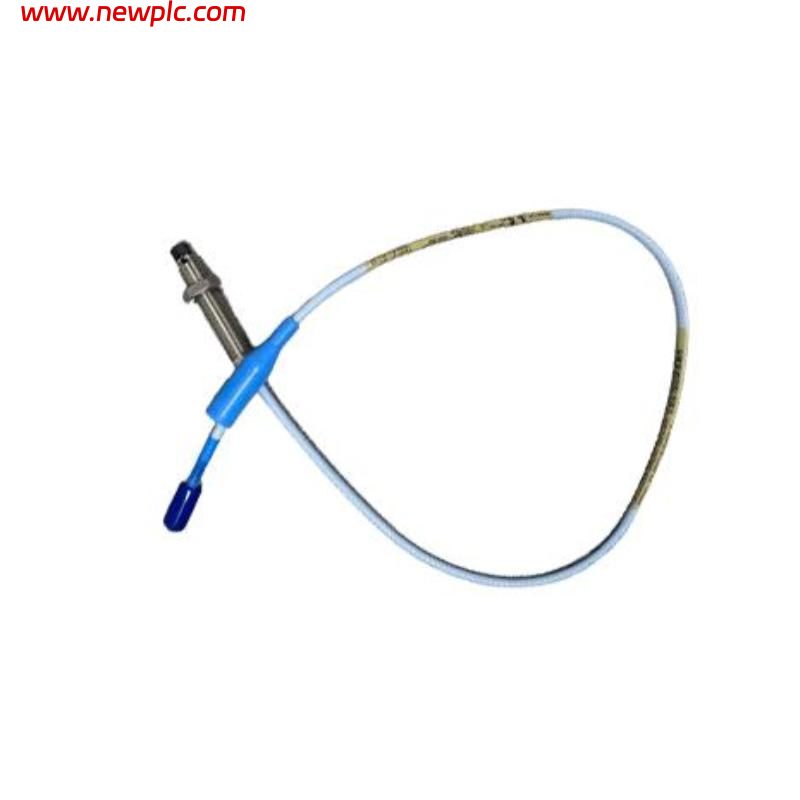

| Product Name | Bently Nevada 146054-08-05-02-05 |
| Product ID | 146054-08-05-02-05 |
| Manufacturer | Bently Nevada |
| Product Type | Interconnect / Extension Cable Assembly |
| Series | 3300 XL NSv Proximitor® Transducer System |
| Function | Provides calibrated signal transmission between NSv proximity probe and Proximitor® sensor |
| Cable Type | 75 Ω Triaxial Extension Cable |
| Cable Length | 0.8 m (Option 08) |
| Connector Type | Miniature Coaxial ClickLoc™ Connectors |
| Shielding | Double-Shielded EMI/RFI Protection |
| Conductor Material | Copper |
| Jacket Material | Industrial-Grade Fluoropolymer |
| Electrical Impedance | 75 Ω |
| Operating Temperature | −51°C to +177°C |
| System Compatibility | Bently Nevada 3300 XL NSv Proximitor® Sensor System |
| Probe Compatibility | 3300 XL NSv 5 mm Proximity Probe Assemblies |
| Installation Type | Probe-to-Proximitor Signal Extension |
| Environmental Rating | Suitable for Industrial and Hazardous Area Installations |
| Vibration Resistance | Designed for Continuous Machinery Monitoring Applications |
| Application | Turbines, Compressors, Pumps, Motors, Generators, Gearboxes |
| Dimensions | Approx. 800 mm (L) × 4.5 mm (Cable Ø) |
| Weight | Approx. 0.10–0.20 kg |
| Country of Origin | United States |
FAQ
FAQ
Q1: What is the Bently Nevada 146054-08-05-02-05 used for?
It is an extension cable assembly used within the 3300 XL NSv transducer system to connect the proximity probe to the Proximitor® sensor.
Q2: What does option 08 indicate?
Option 08 specifies a cable length of 0.8 meter (800 mm).
Q3: Can this cable be used with standard 3300 XL 8 mm probes?
No. It is designed specifically for the 3300 XL NSv transducer system and should be matched with NSv components.
Q4: Is the cable part of the system calibration?
Yes. The extension cable length is a calibrated part of the complete transducer system.
Q5: Can the cable be shortened or repaired?
No. Any modification may affect impedance and measurement accuracy.
Q6: What are the dimensions and weight?
The cable is approximately 800 mm long, 4.5 mm in diameter, and weighs approximately 0.10–0.20 kg.
Q7: What type of shielding is used?
The cable incorporates dual-layer shielding to protect low-level sensor signals from electromagnetic interference.
Q8: What should be verified before replacement?
Verify cable length, NSv system compatibility, connector style, and probe configuration to maintain proper calibration and performance.
