Technical Specifications
| Parameter | Specification |
|---|---|

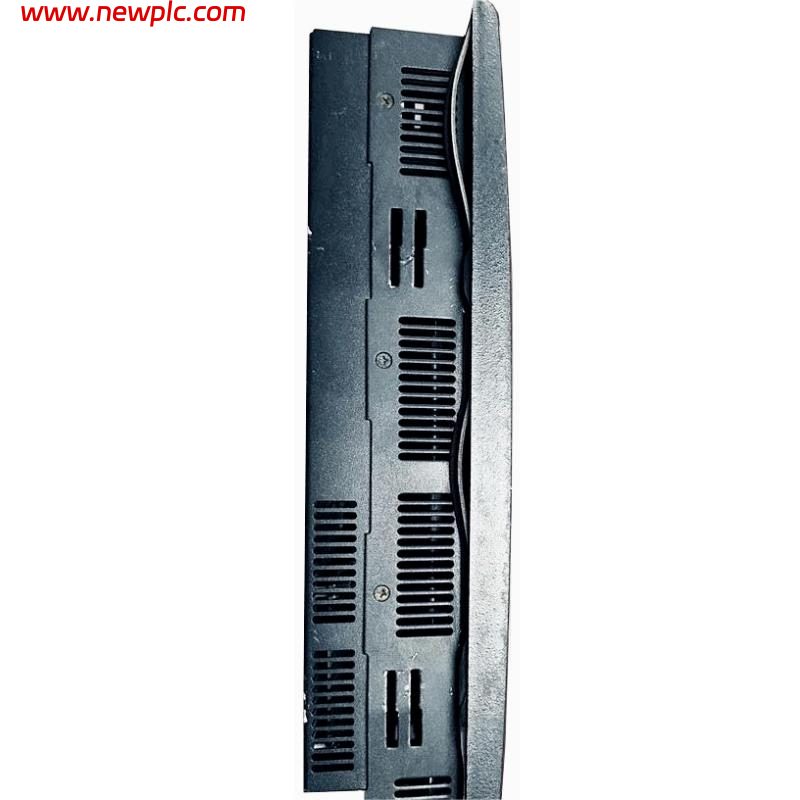

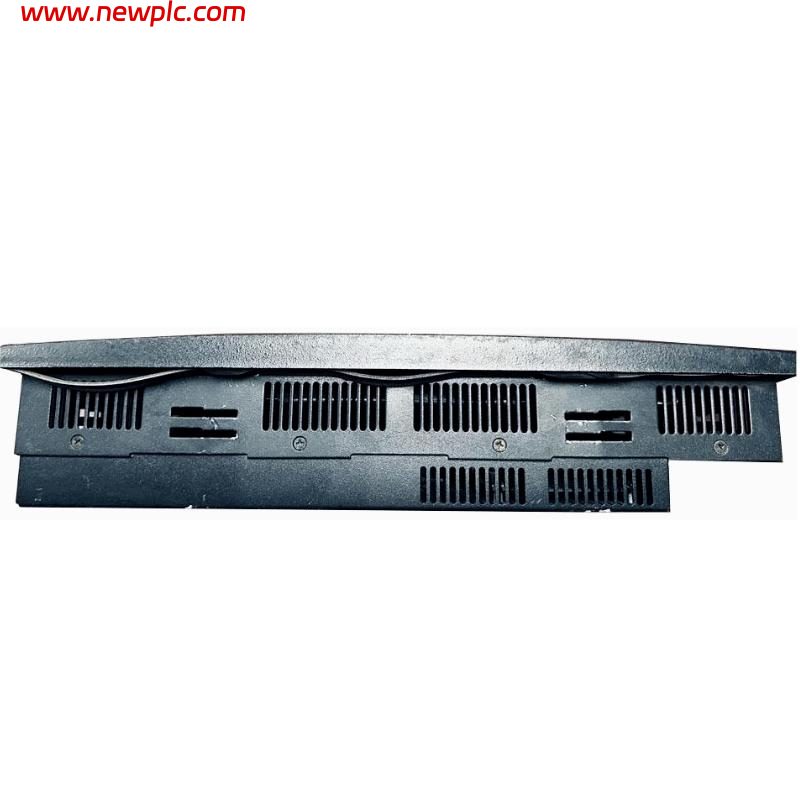

| Product Name | Bently Nevada 148654-01 |
| Product ID | 148654-01 |
| Manufacturer | Bently Nevada |
| Product Type | Spare Display for RS Power Station |
| Series | 3500/94 VGA Display System |
| Function | Replacement touch-screen display for the 3500/94 VGA Display System RS Power Station |
| Display Type | Industrial Color VGA Touch Screen Display |
| Interface | VGA and Serial Touchscreen Communication |
| Display Technology | TFT LCD Industrial Monitor |
| Touchscreen | Resistive Touchscreen |
| Mounting Type | RS Power Station Mounting |
| Compatible Main Module | 145988-01 (3500/94 Main Module) |
| Compatible I/O Module | 147663-01 (3500/94 I/O Module) |
| Compatible System | Bently Nevada 3500 Machinery Protection System |
| Display Function | Real-time machinery monitoring, vibration data display, alarm visualization, and system status monitoring |
| Environmental Rating | Industrial Duty |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | Up to 95% non-condensing |
| Power Supply | Via RS Power Station Assembly |
| Dimensions (H × W × D) | Approx. 330 × 270 × 65 mm |
| Weight | Approx. 2.0 kg |
| Application | Turbines, compressors, generators, pumps, and critical rotating machinery monitoring |
| Country of Origin | United States |
FAQ
FAQ
Q1: What is the Bently Nevada 148654-01 used for?
It is a replacement display unit used with the 3500/94 VGA Display System RS Power Station for visualizing machinery protection and condition monitoring data.
Q2: Is 148654-01 a complete 3500/94 monitor module?
No. It is the spare display component only and is used together with the 3500/94 Main Module (145988-01) and associated I/O hardware.
Q3: Which system is it compatible with?
It is designed specifically for the Bently Nevada 3500/94 VGA Display System within the 3500 Machinery Protection System.
Q4: Does the display support touchscreen operation?
Yes. The 3500/94 VGA Display platform uses a touchscreen interface for navigation and system monitoring.
Q5: What information can be displayed?
The display provides vibration values, shaft position data, alarm status, machine health information, and rack diagnostics from the 3500 monitoring system.
Q6: Is this display suitable for industrial environments?
Yes. It is designed for continuous operation in industrial machinery monitoring applications and supports harsh operating conditions.
Q7: What are the typical dimensions and weight?
The spare display assembly is approximately 330 × 270 × 65 mm and weighs about 2.0 kg, depending on the display revision and mounting hardware.
Q8: What should be verified before replacement?
Verify compatibility with the 3500/94 VGA Display System, RS Power Station configuration, display cable connections, touchscreen interface requirements, and mounting arrangement before installation.
