Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 164517-025-10-02-00 |

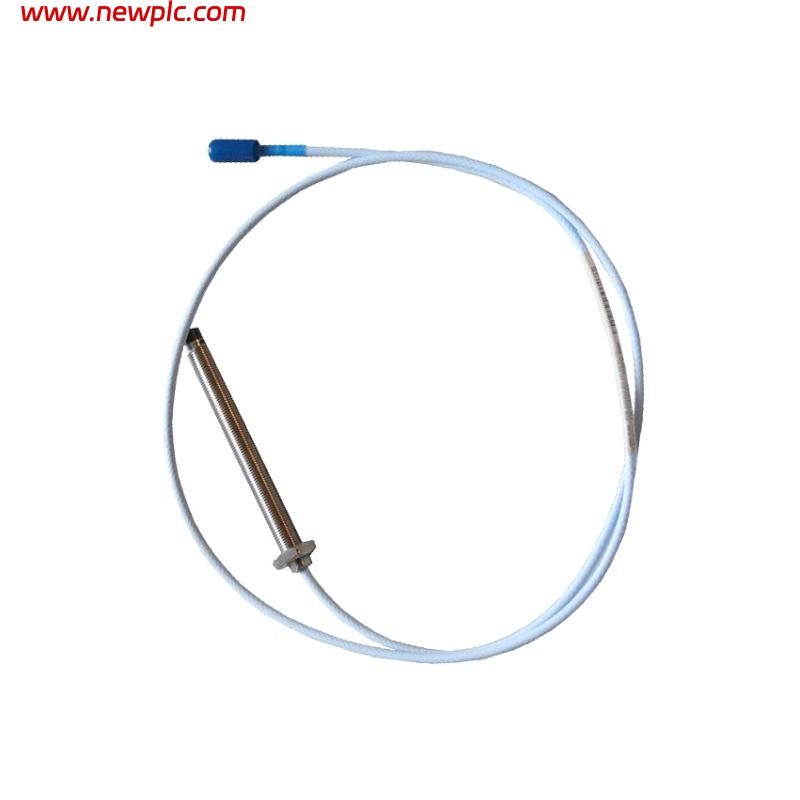

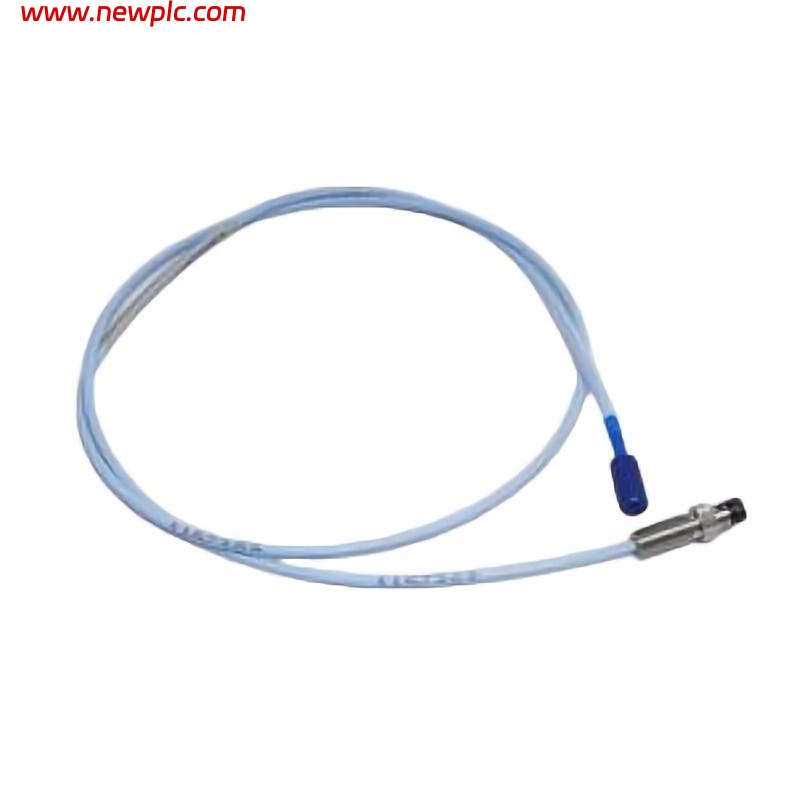

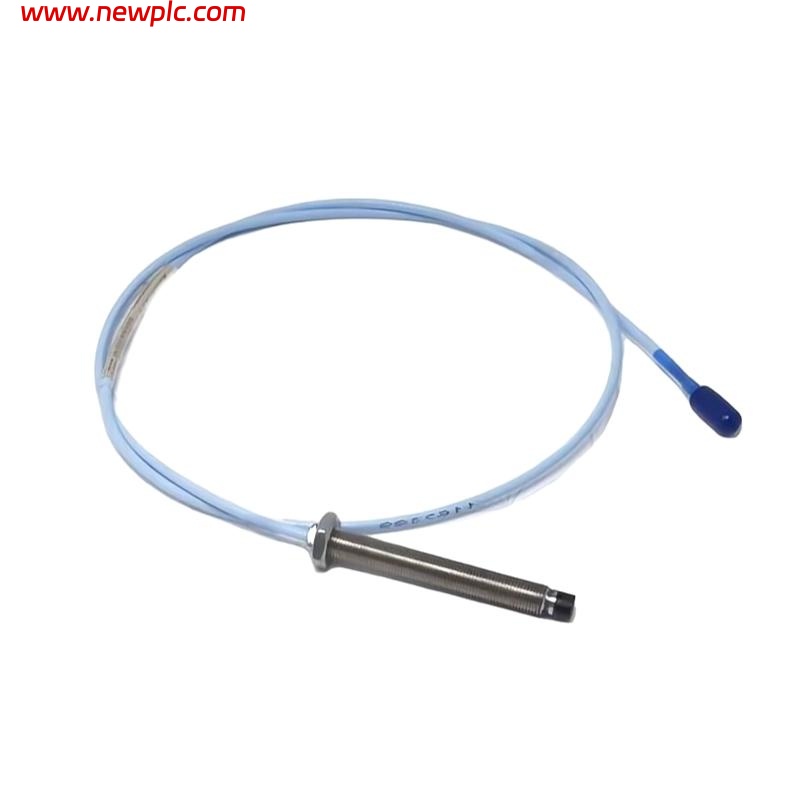

| Product Type | 3300 Ceramic Capped Proximity Probe |
| Manufacturer | Bently Nevada |
| Series | 3300 Series |
| Probe Tip Material | Ceramic tip for enhanced durability and stability |
| Thread Size | M8 x 1 or 3/8-24 UNF (depending on configuration) |
| Probe Body Material | Stainless steel housing for industrial environments |
| Sensitivity | 7.87 mV/μm (200 mV/mil) typical |
| Linear Range | 2 mm (80 mils) nominal |
| Frequency Range | DC to 10 kHz |
| Operating Gap | 1.0 mm nominal |
| System Compatibility | Works with 3300 XL Proximitor Sensor and Extension Cable |
| Cable Length | 1.0 meter (fixed length) |
| Mounting Type | Threaded mounting with locknut |
| Power Supply (via driver) | ±15 VDC typical |
| Operating Temperature Range | -35°C to +177°C |
| Storage Temperature Range | -50°C to +200°C |
| Vibration Tolerance | 10 g, 10–2000 Hz |
| Shock Resistance | 500 g peak |
| Environmental Protection | IP68 (fully sealed, oil and dust resistant) |
| Total Length | 1.0 meter |
| Shipping Weight | 3 kg |
FAQ
FAQ
Q1: What is the primary function of the Bently Nevada 164517-025-10-02-00 proximity probe?
A1: This proximity probe measures the distance between the probe tip and a rotating shaft or target surface, providing accurate vibration and displacement data for machinery monitoring systems.
Q2: What material is used for the probe tip and why?
A2: The probe features a ceramic tip, chosen for its superior wear resistance, thermal stability, and minimal electrical noise characteristics, ensuring long-term precision.
Q3: Can this probe operate in high-temperature environments?
A3: Yes, it can function reliably in temperatures ranging from -35°C to +177°C, making it ideal for use in turbines, compressors, and other heat-intensive machinery.
Q4: Which systems are compatible with this proximity probe?
A4: The probe is fully compatible with Bently Nevada’s 3300 XL Proximitor Sensor and extension cables, forming a complete vibration monitoring system.
Q5: What is the linear range of measurement for this model?
A5: The 164517-025-10-02-00 provides a typical linear range of 2 mm (80 mils), maintaining high accuracy across this distance.
Q6: How is the probe typically installed in industrial machinery?
A6: It is mounted using its threaded stainless-steel body and secured with a locknut, ensuring stable and repeatable positioning close to the monitored shaft.
Q7: What makes the ceramic cap design advantageous?
A7: The ceramic cap provides enhanced resistance to mechanical wear, corrosion, and temperature extremes, which significantly improves the probe’s reliability and lifespan in harsh environments.
Q8: In what types of applications is this probe commonly used?
A8: It is widely used in predictive maintenance and machinery protection systems for turbines, compressors, pumps, and motors, where accurate shaft vibration measurement is critical.
