Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 164517-035-10-02-00 |

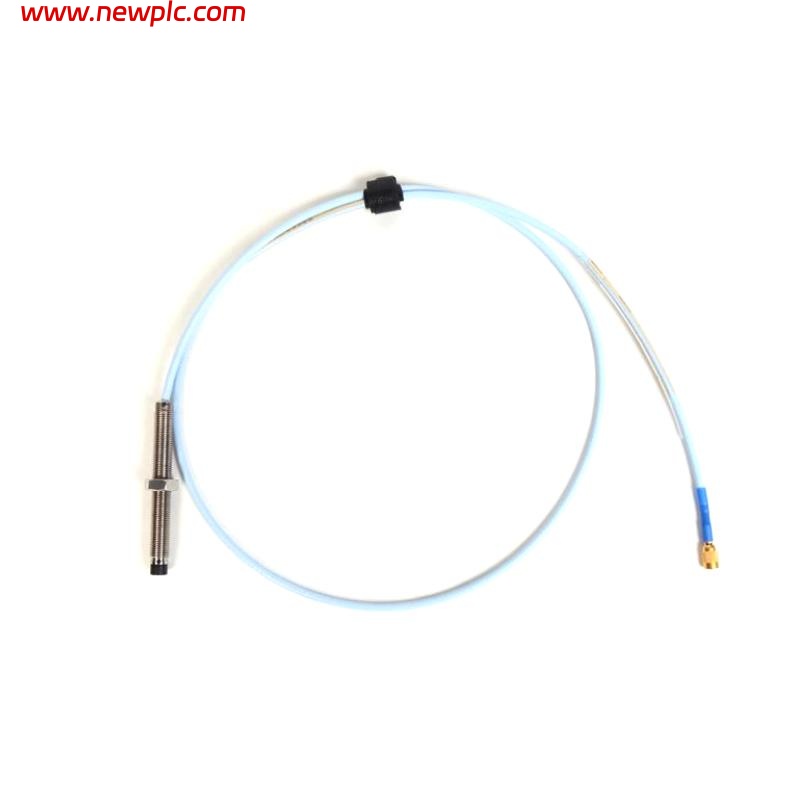

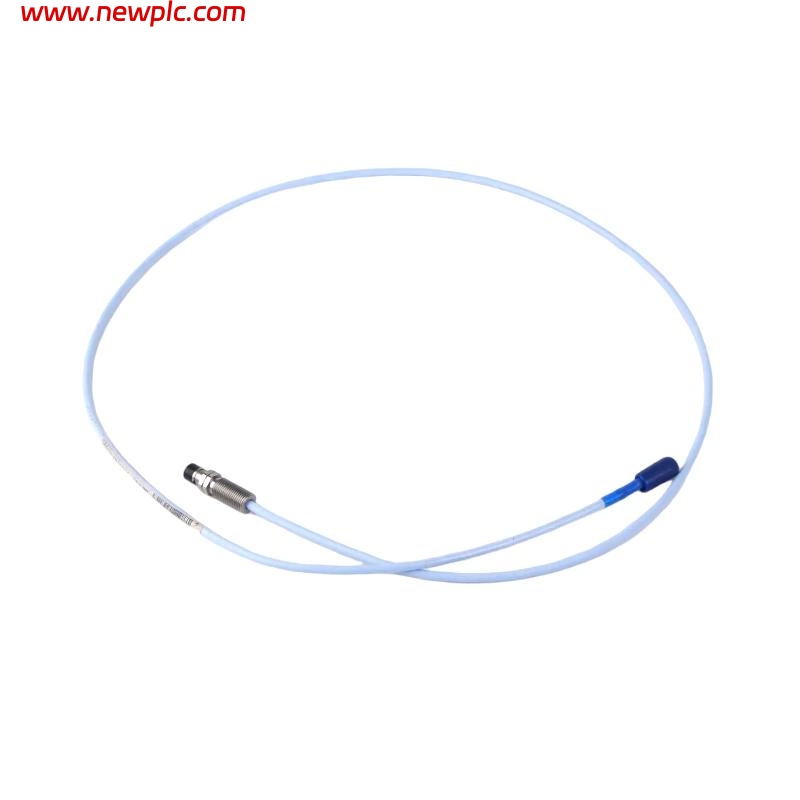

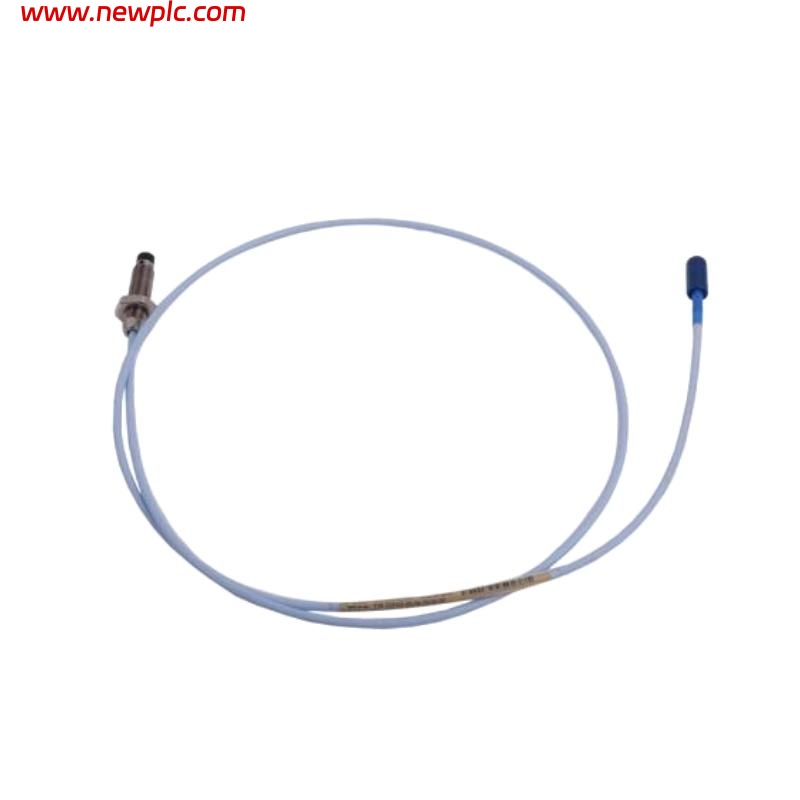

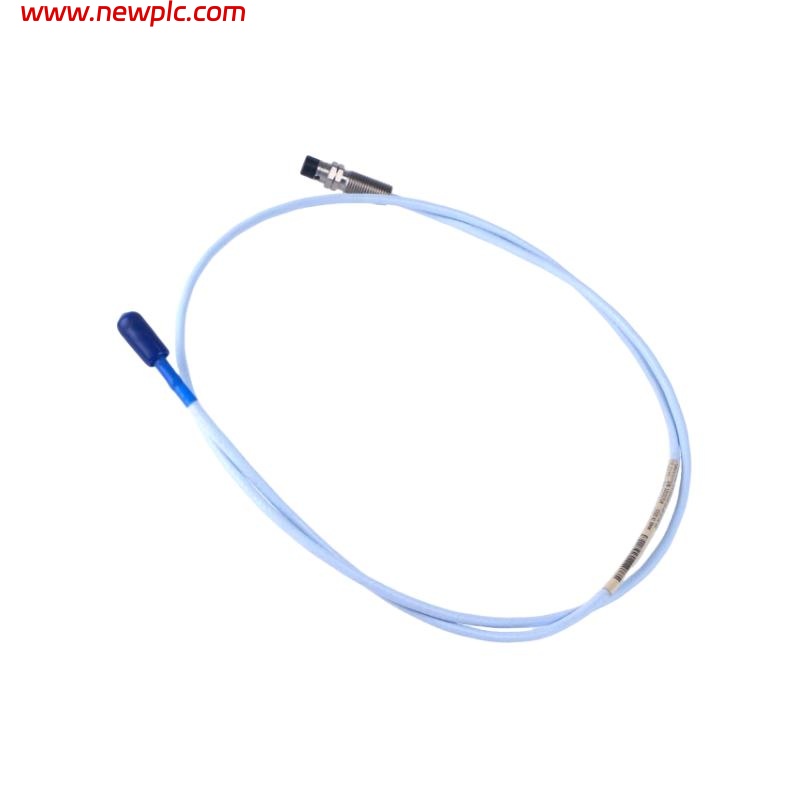

| Product Type | 3300 Ceramic Capped Proximity Probe |
| Manufacturer | Bently Nevada |
| Series | 3300 Series |
| Probe Tip Material | High-strength ceramic cap |
| Thread Size | M8 x 1 or 3/8-24 UNF (depending on configuration) |
| Probe Body Material | Stainless steel |
| Sensitivity | 7.87 mV/μm (200 mV/mil) typical |
| Linear Range | 2 mm (80 mils) nominal |
| Frequency Range | DC to 10 kHz |
| Operating Gap | 1.0 mm nominal |
| System Compatibility | Compatible with 3300 XL Proximitor Sensor and extension cable |
| Cable Length | 1.0 meter (fixed length) |
| Mounting Type | Threaded mounting with locknut |
| Power Supply (via driver) | ±15 VDC typical |
| Operating Temperature Range | -35°C to +177°C |
| Storage Temperature Range | -50°C to +200°C |
| Vibration Tolerance | 10 g, 10–2000 Hz |
| Shock Resistance | 500 g peak |
| Environmental Protection | IP68 (sealed, oil and dust resistant) |
| Total Length | 1.0 meter |
| Shipping Weight | 3 kg |
FAQ
FAQ
Q1: What is the main function of the Bently Nevada 164517-035-10-02-00 probe?
A1: It measures the distance between the probe tip and the target surface, providing accurate displacement and vibration signals used in rotating machinery monitoring.
Q2: Why does this probe use a ceramic cap design?
A2: The ceramic cap enhances wear resistance, temperature endurance, and electrical insulation, offering improved stability in demanding environments.
Q3: Is this probe suitable for high-temperature operation?
A3: Yes, the probe operates reliably between -35°C and +177°C, making it ideal for turbines, compressors, and high-heat industrial systems.
Q4: What system components are required for full functionality?
A4: The probe is designed to operate with Bently Nevada’s 3300 XL Proximitor Sensor and compatible extension cables to form a complete proximity measurement system.
Q5: What is the measurement range and sensitivity of this model?
A5: It features a 2 mm (80 mils) linear range with a sensitivity of approximately 7.87 mV/μm (200 mV/mil), ensuring precise readings.
Q6: How should the probe be mounted for optimal performance?
A6: It should be mounted securely using its threaded stainless-steel housing and locknut to ensure consistent positioning near the target shaft.
Q7: What are the benefits of using a stainless-steel body in this probe?
A7: The stainless-steel housing provides mechanical strength, corrosion resistance, and long-term reliability in industrial and hazardous environments.
Q8: What type of applications typically use this proximity probe?
A8: It is widely used in vibration monitoring and machinery protection systems for turbines, compressors, pumps, and motors in industrial process plants.
