Technical Specifications
| Item | Specification |
|---|---|
| Model | 170133‑XXX‑00 (Internal 3300 Proximitor Module) |

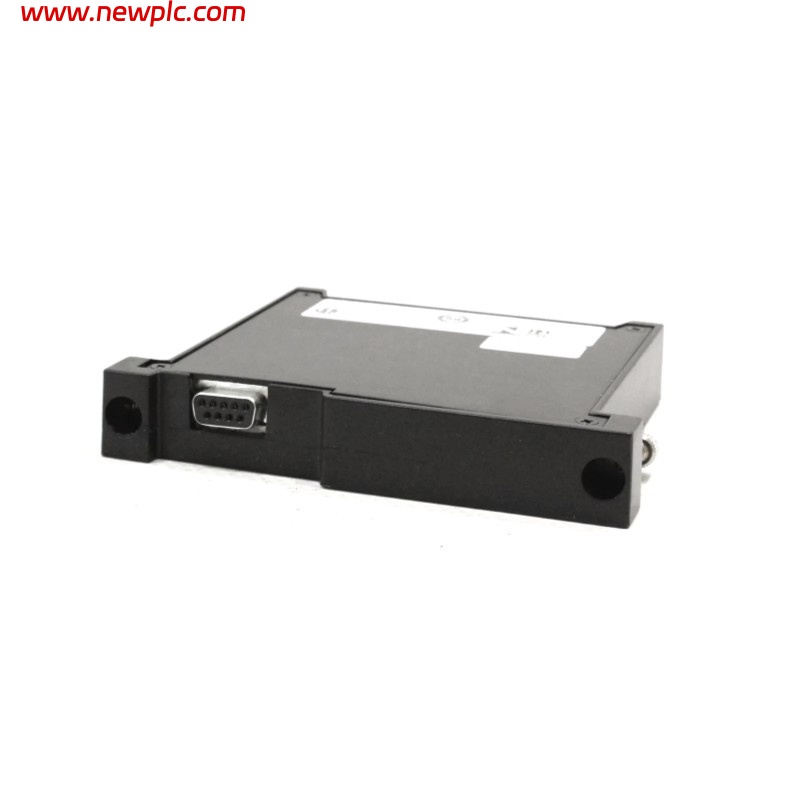

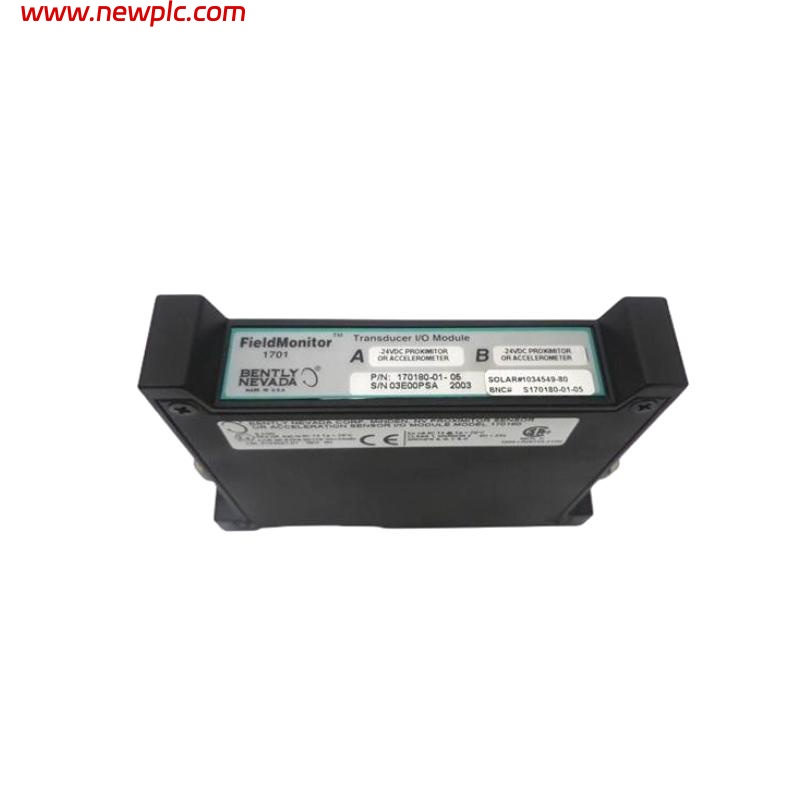

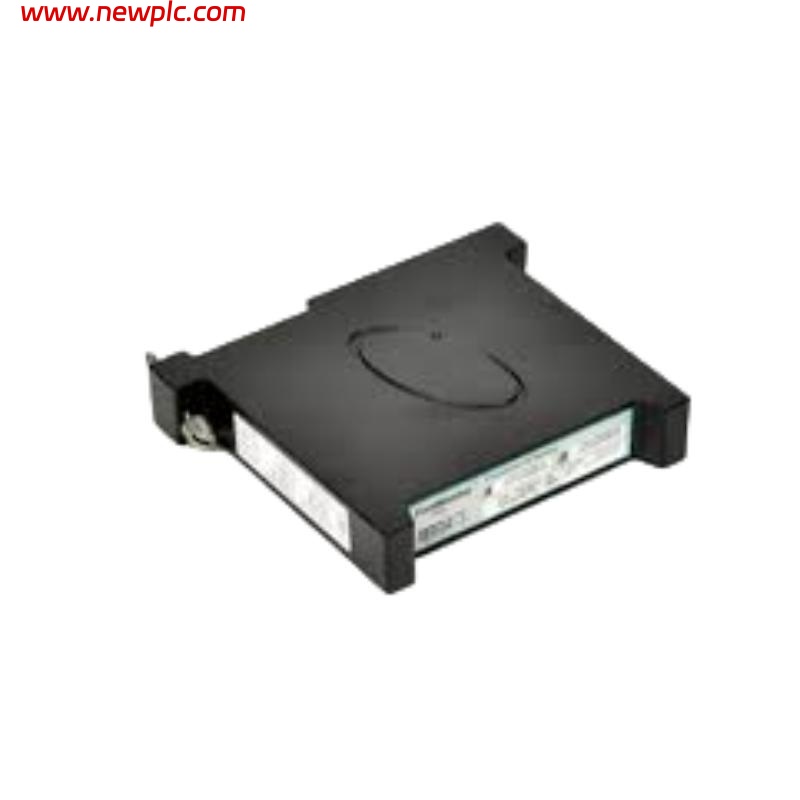

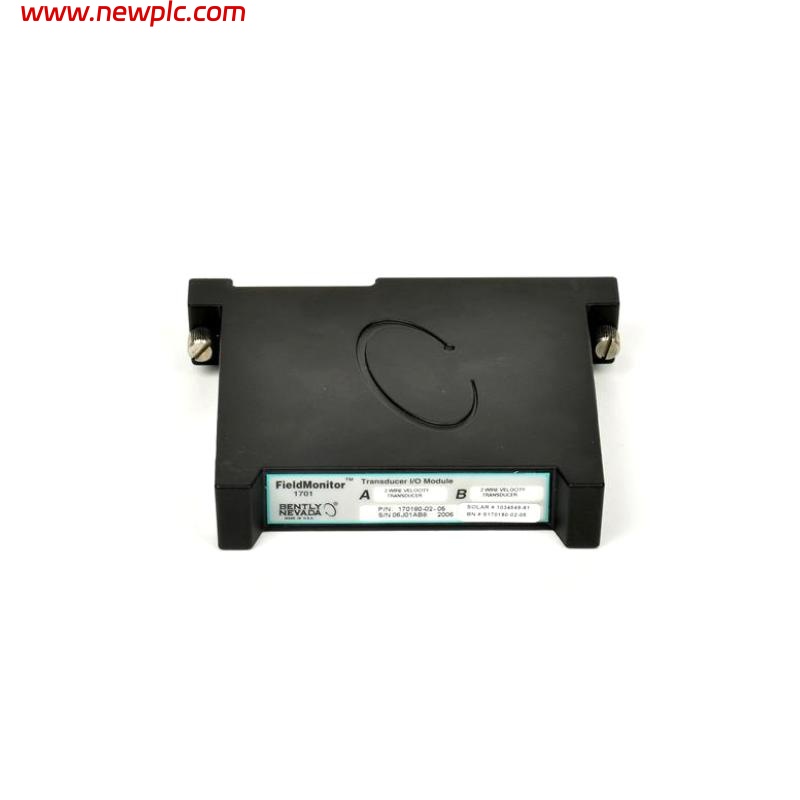

| Type | Dual internal Proximitor / proximity signal conditioning module |
| Compatible Probes | Standard 3300 series 5 mm or 8 mm probes |
| System Lengths | 5 m, 9 m, 14 m system configurations |
| Incremental Scale Factor (ISF) | 7.87 mV/µm (200 mV/mil) ±6.5 % (typical) (inclusive of interchangeability) |
| Calibration Range | 250 µm to 2250 µm (10 to 90 mil) |
| Frequency Response | 0 to 12.5 kHz (–3 dB at 50 mil gap) |
| Minimum Target Size | 15.2 mm (0.6 in) diameter flat target |
| Probe DC Resistance | 7.3 Ω + 0.28 Ω per meter |
| Cable Characteristics | Center resistance: 0.222 Ω/m; Shield resistance: 0.066 Ω/m; Capacitance: 69.9 pF/m |
| Operating Temperature | –34 °C to +85 °C |
| Storage Temperature | –40 °C to +85 °C |
| Weight | 320 g (0.71 lb) |
| Dimensions (L × W × H) | 125 mm × 21 mm × 105 mm (approx.) |
| Fault Indication | Output within ~1 V of common in case of open/short circuit |
| Hazardous Area Approvals | Ex nA / Class I Div 2, T4, etc |
FAQ
FAQ
Q1: What does “170133‑XXX‑00” represent?
A1: The “XXX” is a placeholder for the system length option (e.g. 050, 090, 140), thus 170133‑XXX‑00 refers to variants of the same internal Proximitor module with different internal probe/extension lengths.
Q2: What is the module’s role in a proximity measurement system?
A2: It replaces external Proximitor sensors by embedding two proximity signal conditioning channels internally, enabling direct connection to probes and extension cables.
Q3: What scale factor is used for displacement?
A3: The module typically uses 7.87 mV per micrometer (≈ 200 mV per mil) over its linear range.
Q4: What is the usable calibration range?
A4: The calibration (linear) range is from 250 µm up to 2250 µm (10–90 mil).
Q5: What is the bandwidth capability?
A5: It is expressed up to 12.5 kHz (–3 dB point at 50 mil gap), enabling high‑speed measurements.
Q6: What are the physical size and weight?
A6: The module’s approximate housing is 125 × 21 × 105 mm, and it weighs about 320 g.
Q7: How does fault detection work?
A7: If a probe or cable has an open or short, the output shifts close to 1 V above common, signaling a fault to the monitoring system.
Q8: What environmental limits does it support?
A8: Operating –34 °C to +85 °C, storage –40 °C to +85 °C, and it is designed for full humidity (100 % condensing) non‑submerged when connectors are sealed.
