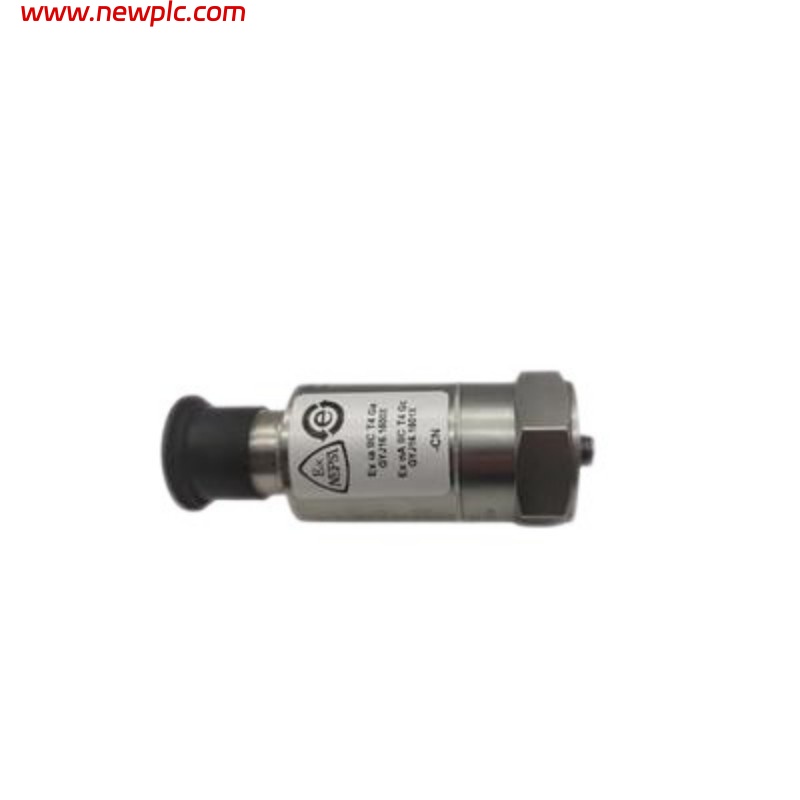

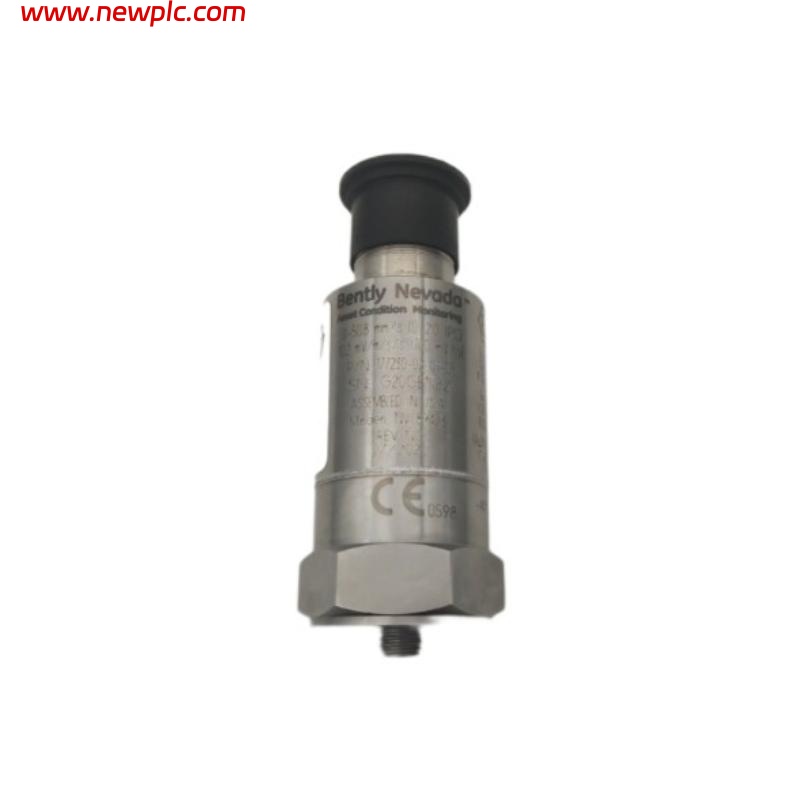

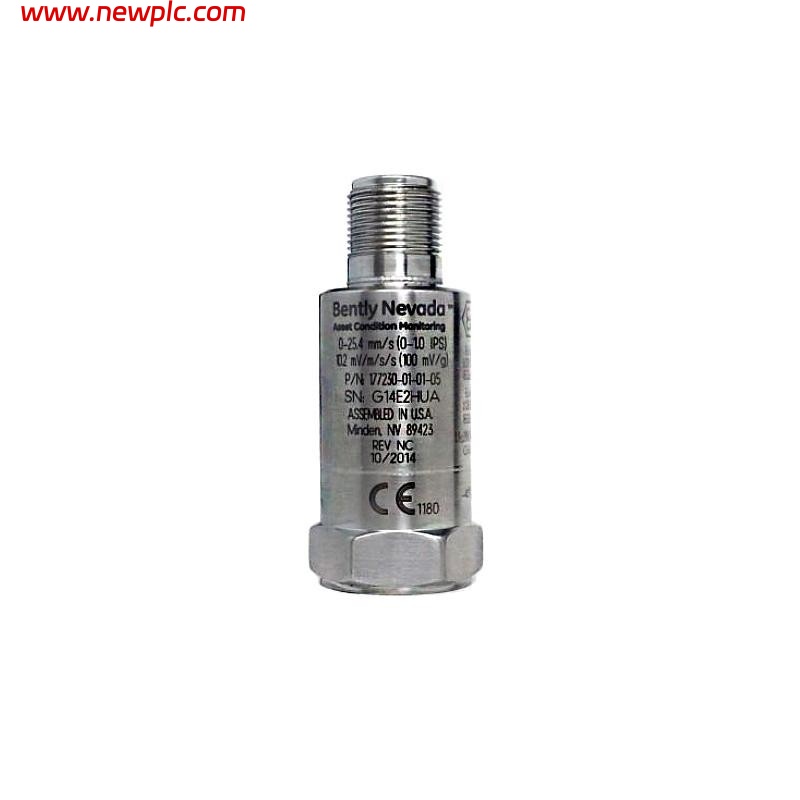

Bently Nevada 177230-01-02-CN Seismic (velocity) transmitter, loop-powered

FAQ

Q1: What does “01-02-CN” represent in the model number?
“01” indicates the measurement range option (0–25.4 mm/s), “02” represents the frequency response range (3 Hz–1 kHz), and “CN” designates Chinese and international hazardous area certifications.

Q2: Does the transmitter provide both dynamic and 4–20 mA outputs?
Yes. It provides a 4–20 mA loop output for vibration velocity (RMS) and an unbuffered dynamic voltage signal for detailed vibration analysis.

Q3: What supply voltage does the unit require?
The device operates with a 12–30 VDC supply and draws up to 40 mA.

Q4: How long does it take for the sensor to stabilize after power-up?
The transmitter settles within 2% of its final value in under 15 seconds.

Q5: Is any field calibration needed before installation?
No. The unit is factory calibrated and ready for use without additional configuration.

Q6: How is the sensor installed on the machine?

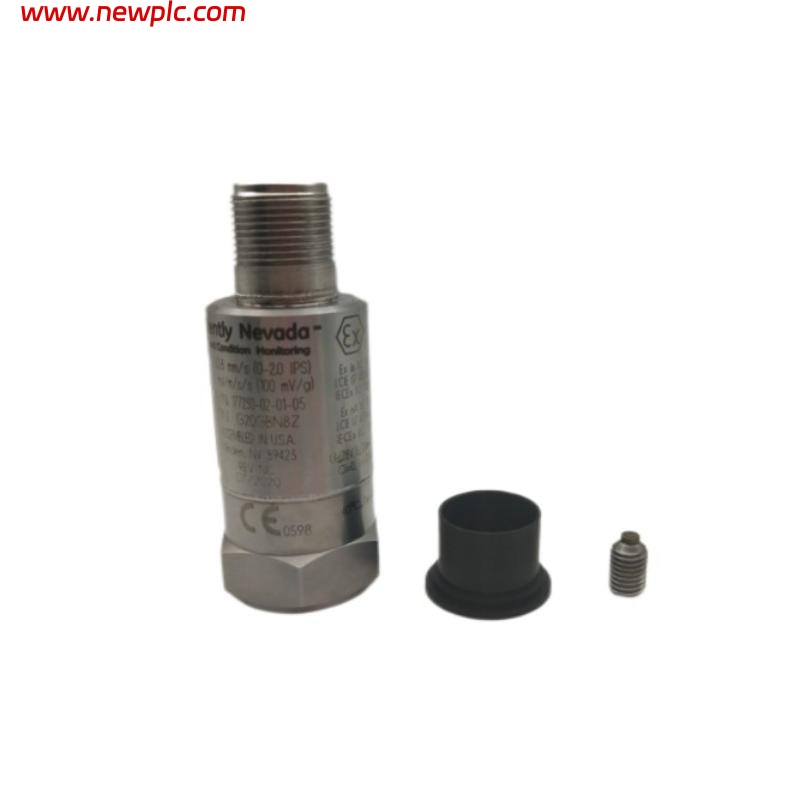

It mounts directly to the machine housing using a 1/4-28 UNF threaded hole to ensure solid mechanical coupling.

Q7: What are the physical dimensions and weight of the transmitter?
The overall size is Ø25.4 mm × 66.0 mm, and the weight is approximately 0.131 kg.

Q8: Can the 177230-01-02-CN be used in hazardous environments?
Yes. It is certified for use in explosive or hazardous areas under ATEX, IECEx, and NEPSI (China) standards.
