Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model / Part Number | 18745-04 |

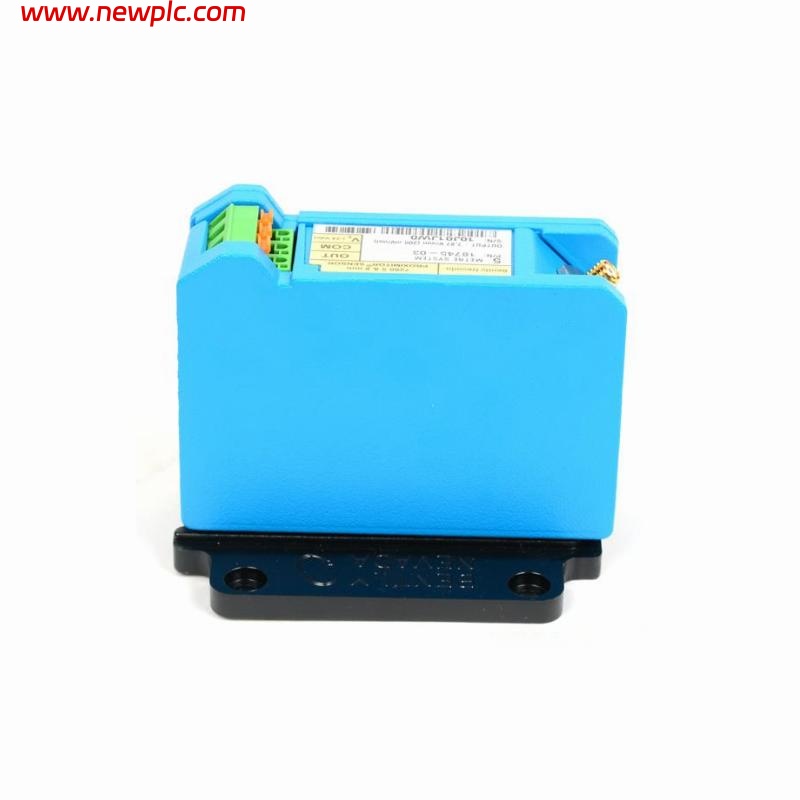

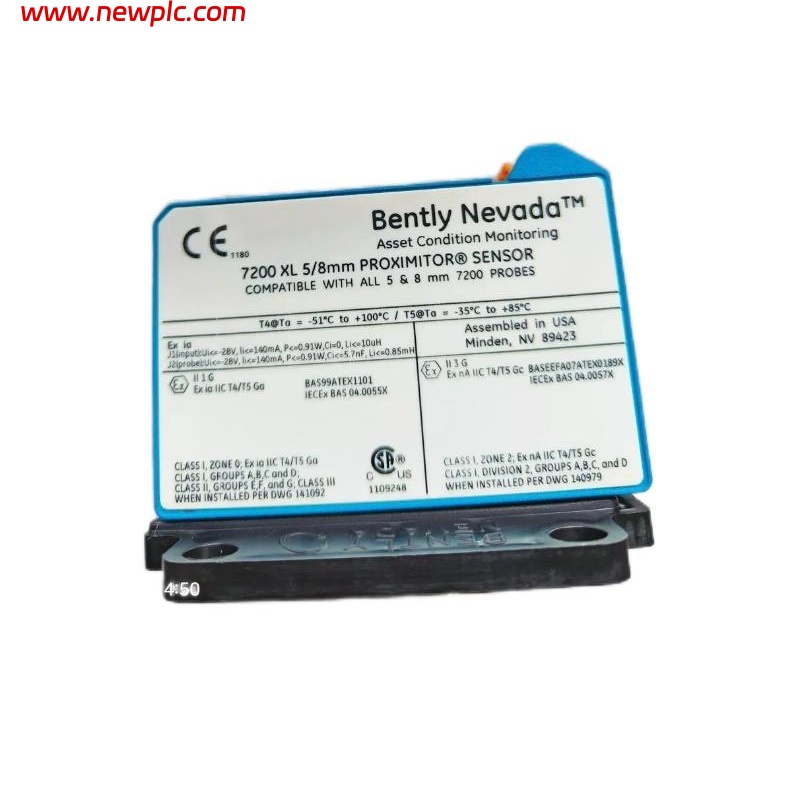

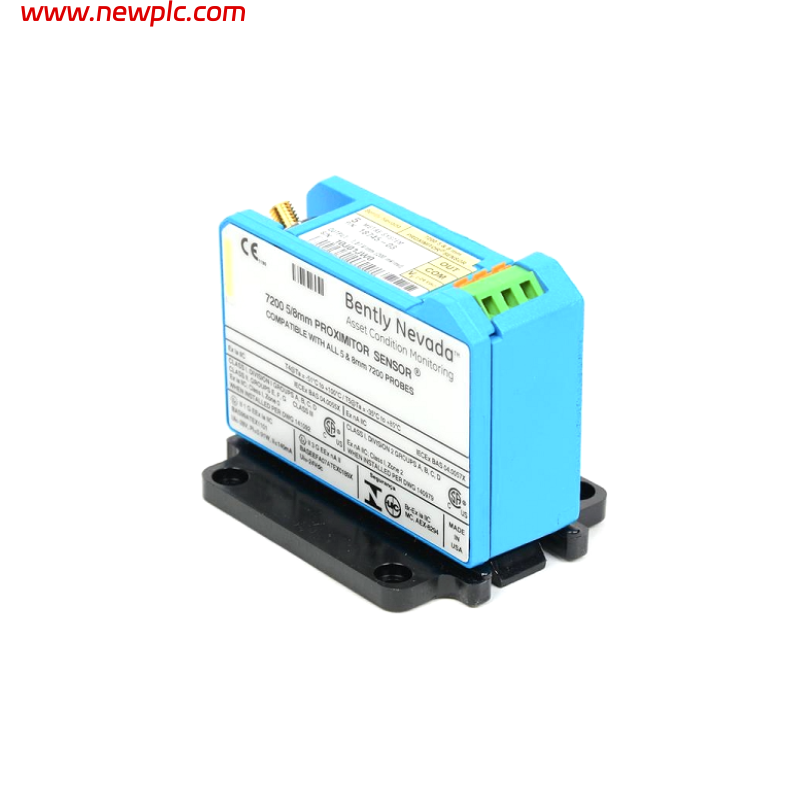

| Product Type | 7200 Series Proximitor Sensor |
| Sensor Type | Non-contacting gap-to-voltage transducer |
| Compatible Probe Size | 5 mm (probe tip) |
| Linear Measuring Range | Up to ~2 mm (80 mils) |
| Sensitivity / Scale Factor | ~7.87 V/mm (200 mV/mil) |
| Frequency Response | 0 Hz (DC) to 10 kHz |
| Output Voltage | ~–18 V to –24 V DC supply range |
| Power Supply | –24 V DC typical |
| Cable Length | ~9 m total system cable |
| Operating Temperature | Approximately –35 °C to +177 °C (varies by installation) |
| Storage Temperature | Up to ~+200 °C (typical for 7200 sensors) |
| Housing / Connector | Industrial sensor housing with integral cable connector |
| Dimensions (H × W × D) | 8.13 × 6.12 × 6.35 cm |
| Net Weight | ~0.50 kg |
| Typical Use | Shaft position and vibration monitoring in rotating machinery condition monitoring systems |
| Compliance | Compatible with API 670 protection standard and Bently Nevada 3300/9000 monitoring systems |
FAQ
FAQ
Q1: What is the 18745-04 proximitor sensor used for?
It measures static and dynamic distances between a proximity probe and a target (shaft) without contact to support vibration and position monitoring.
Q2: What probe size does this sensor support?
This model supports a 5 mm probe tip configuration.
Q3: What is the typical measuring range and sensitivity?
It provides up to ~2 mm linear range with a scale factor around 7.87 V/mm (200 mV/mil).
Q4: What kind of output signal does the sensor produce?
The sensor conditions the proximity probe signal and outputs a voltage proportional to gap change with supply around -24 VDC.
Q5: What are its physical dimensions?
The sensor housing measures approximately 8.13 × 6.12 × 6.35 cm.
Q6: How heavy is the 18745-04 sensor?
The net weight is about 0.50 kg.
Q7: What environments is this proximity sensor suitable for?
It’s designed for industrial machinery conditions, with broad temperature tolerance and robust construction suitable for turbines, compressors, pumps, and similar equipment.
Q8: With what monitoring systems is this sensor compatible?
It integrates with Bently Nevada 3300 and 9000 series monitoring/protection systems and supports API 670 compliance.
