Technical Specifications
| Parameter Category | Technical Description |
|---|---|

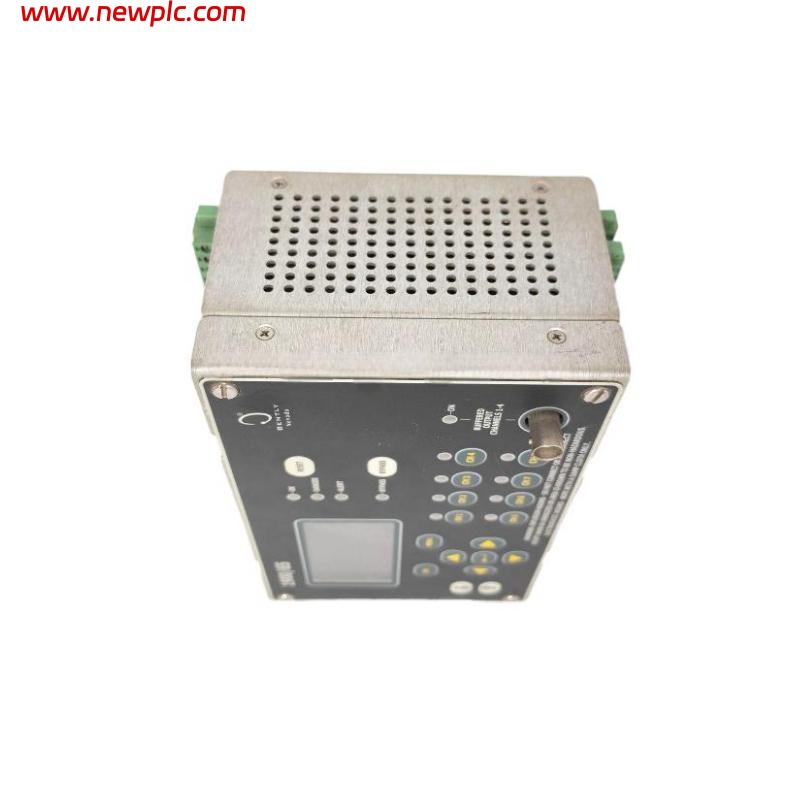

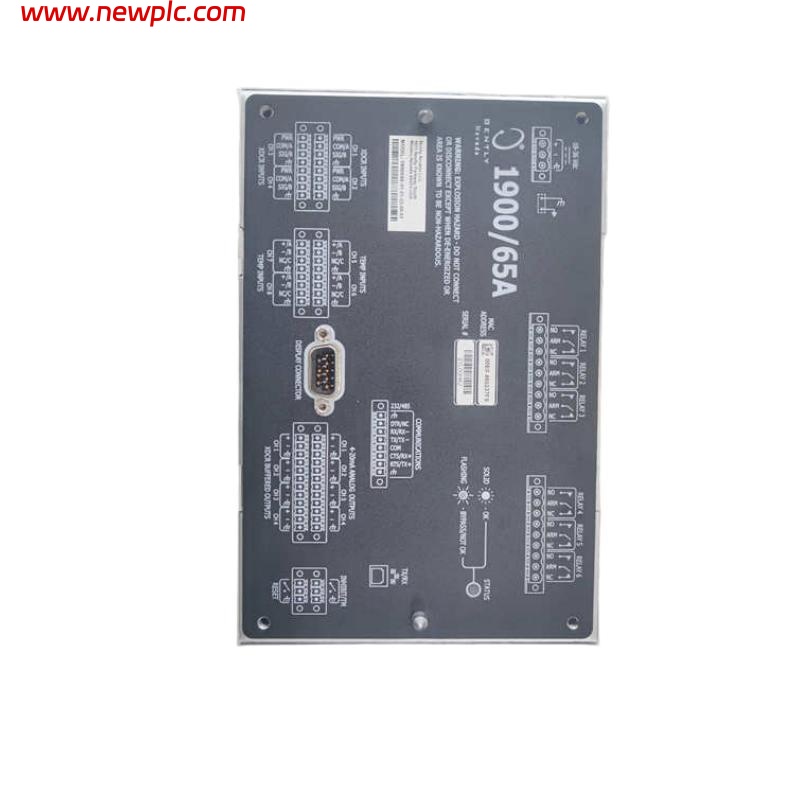

| Product Model | Bently Nevada 1900/65A-01-01-03-00-01 General Purpose Equipment Monitor |
| Function | Provides continuous online monitoring and protection for critical rotating machinery |
| Channel Count | 4 dynamic channels (vibration/velocity/displacement) + 4 process variable channels |
| Sensor Compatibility | Compatible with Bently Nevada 3300/3500 probes, accelerometers, velocity and displacement sensors |
| Input Types | Voltage (±10 V), Current (4-20 mA), IEPE sensor input |
| Sampling Rate | Up to 20 kHz for dynamic signals, configurable filters |
| Accuracy | ±0.1% of full scale |
| Output Signals | 4-20 mA analog outputs, Modbus RTU/TCP, relay/alarm contacts |
| Alarm Functions | Dual-level alarms: Alert and Danger thresholds |
| Power Requirement | 24 V DC (±10%), typical power ≤ 15 W |
| Interfaces & Communication | Modbus RTU/TCP, RS-485, USB local configuration |
| Data Storage | Internal storage plus optional integration with external systems (e.g., System 1) |
| Diagnostics | Self-diagnostics, sensor loop monitoring, signal quality monitoring |
| Operating Environment | Operating: -20 ~ +65°C; Storage: -40 ~ +85°C; Humidity ≤ 95% non-condensing |
| EMC Compliance | Complies with IEC/EN 61000 industrial EMC standards |
| Mounting Method | DIN rail or rack mounting |
| Dimensions | 196.9 × 149.4 × 74.4 mm |
| Weight | 0.77 kg |
FAQ
FAQ
Q1: What types of sensors are supported by the monitor?
A1: It supports displacement probes, velocity sensors, accelerometers, and 4-20 mA process variable sensors.
Q2: What is the maximum sampling rate of the module?
A2: The dynamic signal channels support up to 20 kHz sampling rate.
Q3: What output standards are supported?
A3: It supports 4-20 mA, Modbus RTU/TCP, and relay alarm outputs.
Q4: How are alarm thresholds configured?
A4: It provides dual-level alarms with Alert and Danger settings.
Q5: Does the module have self-diagnostic capability?
A5: Yes, it offers sensor loop monitoring, signal quality monitoring, and internal diagnostics.
Q6: What are the power supply requirements?
A6: It requires 24 V DC (±10%) with ≤ 15 W power consumption.
Q7: Can the module be integrated with supervisory or control systems?
A7: Yes, it can integrate via Modbus RTU/TCP with DCS/SCADA systems and is compatible with System 1.
Q8: What mounting methods are available?
A8: It can be mounted on a DIN rail or in a rack enclosure.
