Technical Specifications
| Parameter | Description |
|---|---|

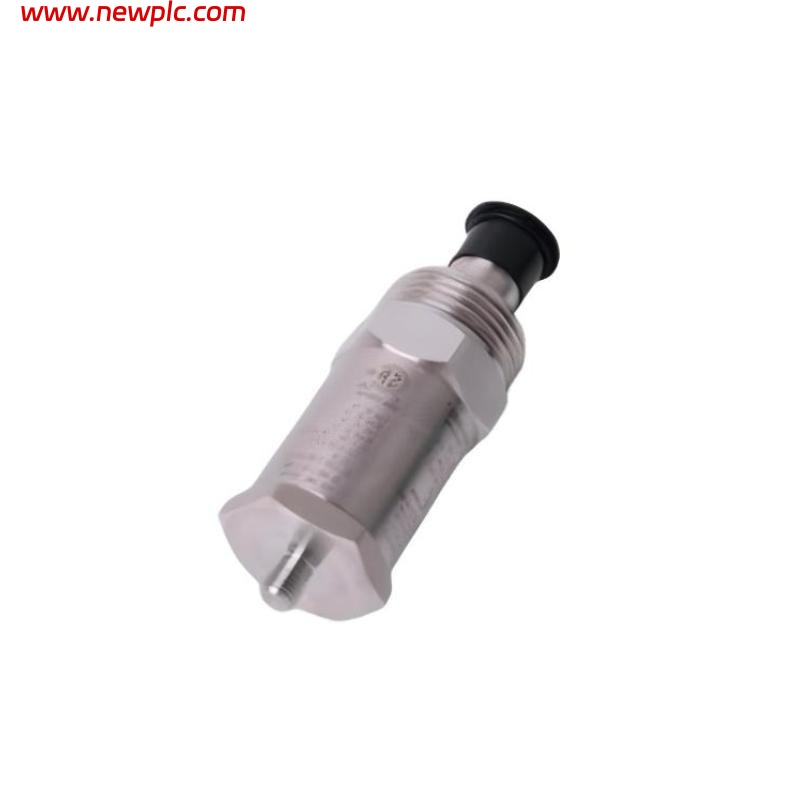

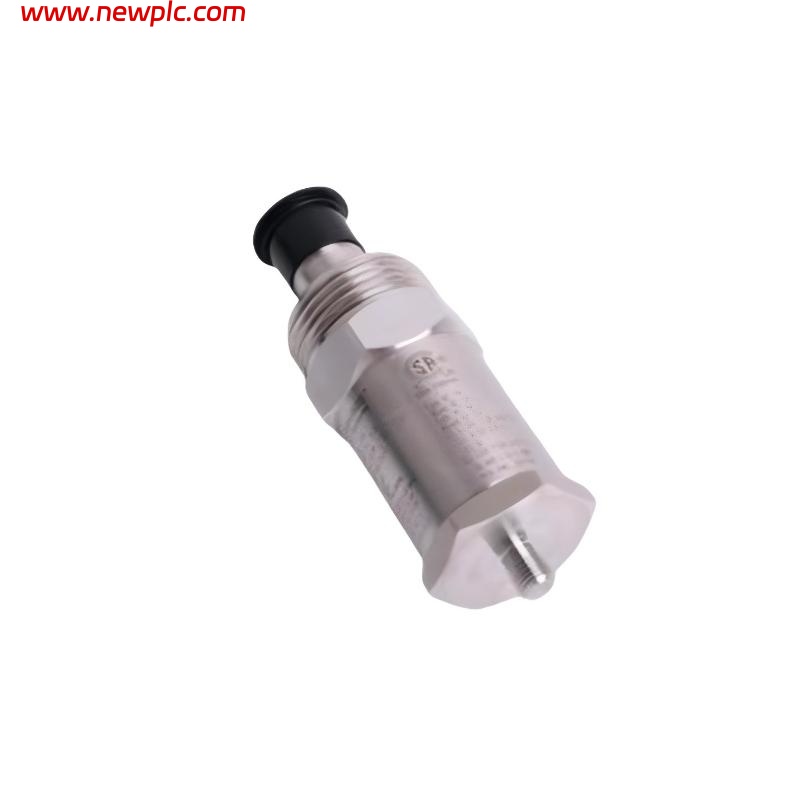

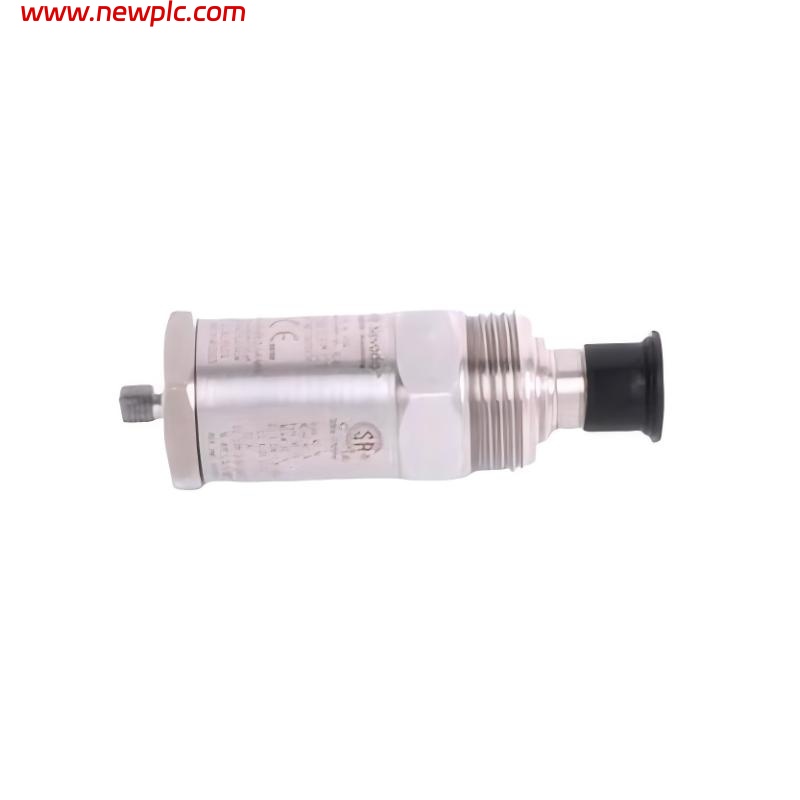

| Product Model | Bently Nevada 190501-01-00-04 |
| Product Type | Velomitor CT Velocity Sensor |
| Sensing Principle | Electrodynamic velocity measurement |
| Sensitivity | 100 mV/in/s ±10% (at 25°C) |
| Frequency Range | 10 Hz to 1,000 Hz |
| Mounted Resonant Frequency | > 4,000 Hz |
| Output Type | Voltage proportional to vibration velocity |
| Output Polarity | Positive voltage for upward motion |
| Power Supply | Self-powered (no external power required) |
| Dynamic Range | ±50 g peak |
| Transverse Sensitivity | ≤5% of axial sensitivity |
| Temperature Range | -55°C to +100°C |
| Case Material | Stainless steel |
| Mounting Method | 1/4-28 UNF stud or adhesive mount |
| Connector Type | MIL-C-5015 2-pin connector |
| Sensor Diameter | 33 mm |
| Weight | 0.297 kg |
FAQ
FAQ
Q1: What is the primary function of the Bently Nevada 190501-01-00-04 sensor?
A1: It measures vibration velocity in rotating machinery to monitor mechanical condition and detect imbalance or misalignment.
Q2: What type of signal does the Velomitor CT output?
A2: The sensor outputs an AC voltage signal directly proportional to the vibration velocity of the monitored surface.
Q3: Does the Velomitor CT require an external power source?
A3: No, it is a self-generating velocity transducer and does not require external excitation or power.
Q4: What is the recommended frequency range for accurate measurement?
A4: The sensor provides accurate readings in the 10 Hz to 1,000 Hz frequency range.
Q5: How should the sensor be mounted for best performance?
A5: It should be mounted firmly to a clean, flat surface using a 1/4-28 UNF stud to ensure maximum sensitivity and minimal resonance distortion.
Q6: What is the output polarity reference for the sensor?
A6: The sensor produces a positive voltage output when the case moves upward relative to the mounting base.
Q7: What environmental conditions can this sensor withstand?
A7: It is designed for harsh industrial environments, capable of operating from -55°C to +100°C with resistance to oil, dust, and vibration.
Q8: In what types of equipment is this sensor commonly used?
A8: The Velomitor CT is typically used on turbines, compressors, pumps, and fans for continuous vibration monitoring and protection systems.
