Technical Specifications
| Parameter | Description |
|---|---|

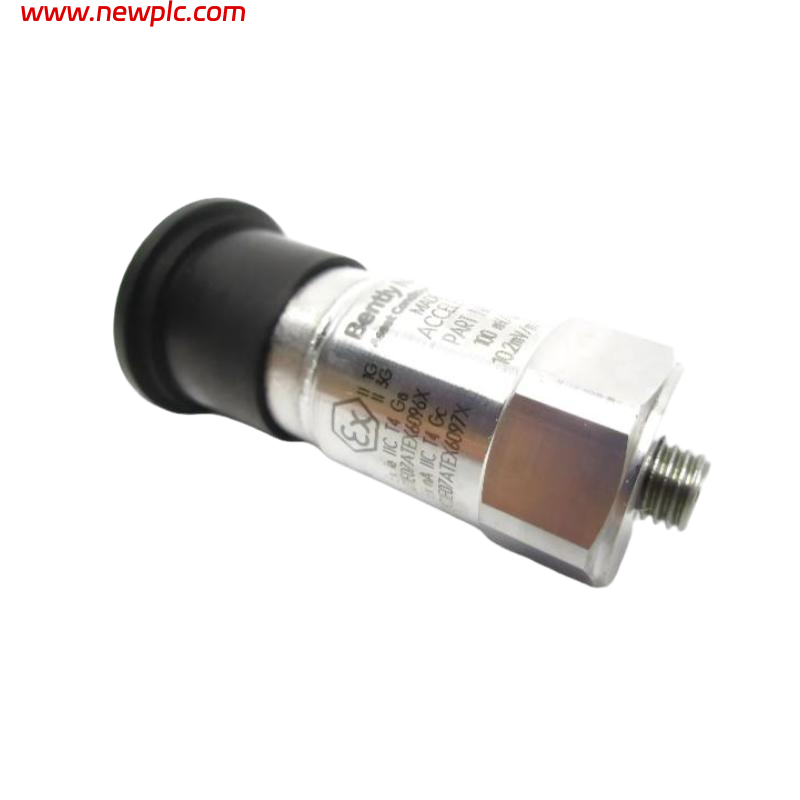

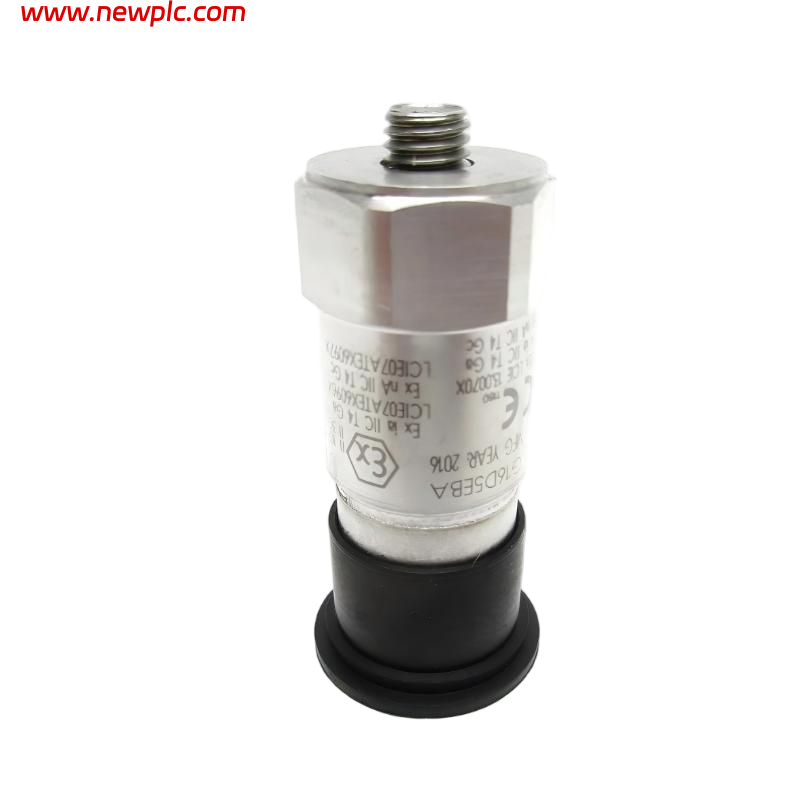

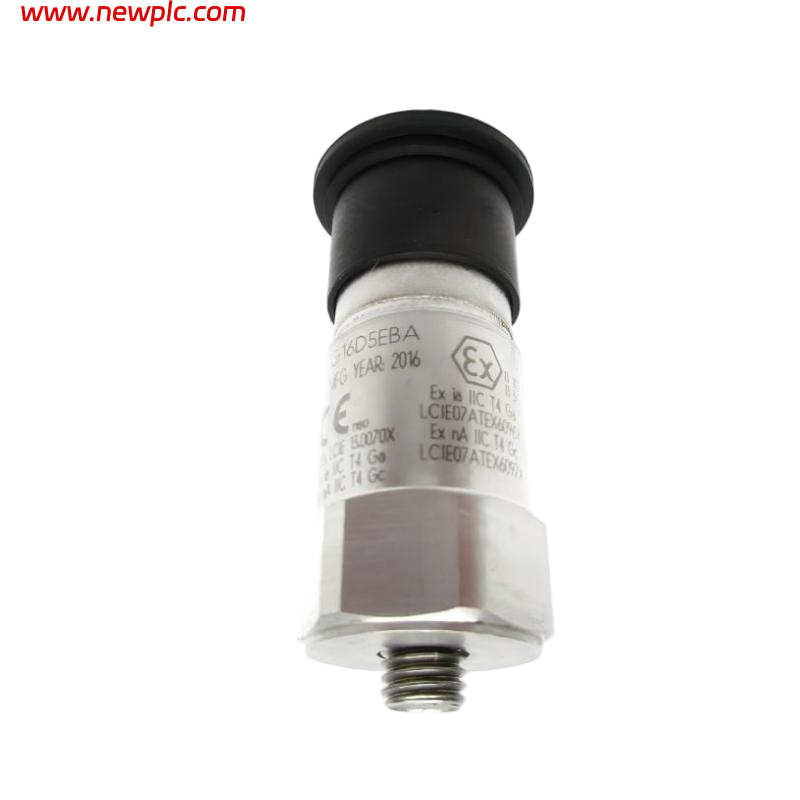

| Manufacturer | Bently Nevada |
| Product Model | 200350‑02‑00‑01 |
| Product Type | Industrial Piezoelectric Accelerometer |
| Sensor Type | Constant‑current piezoelectric seismic accelerometer |
| Sensitivity | 100 mV/g ± 20% |
| Measurement Range | ±50 g |
| Frequency Range | 0.5–10,000 Hz |
| Linearity | ±1% |
| Transverse Sensitivity | ≤7% |
| Resonant Frequency | 25 kHz |
| Noise Level | 350 µg |
| Bias Voltage | 8–12 VDC |
| Excitation | 18–28 VDC, 2–20 mA |
| Output Impedance | <150 ohms |
| Shock Limit | 5,000 g peak |
| Mounting Thread | ¼‑28 to M8 × 1.25 BeCu stud |
| Connector Type | Top‑mounted 2‑pin MIL‑C‑5015 |
| Operating Temperature Range | –54 °C to +121 °C |
| Humidity | 100% relative, condensing (non‑submerged) |
| Housing Material | Hermetically sealed stainless steel |
| Dimensions (H × Ø) | 42.4 mm × 17.3 mm |
| Weight | 0.051 kg |
| Compliance | Industrial vibration monitoring applications |
FAQ
FAQ
Q1: What is the primary use of the 200350‑02‑00‑01?
A1: It is used as an industrial accelerometer for vibration monitoring on rotating machinery to support condition monitoring and early fault detection.
Q2: What kind of vibration range can this accelerometer measure?
A2: It measures acceleration up to ±50 g within its specified frequency range.
Q3: What frequency range does the sensor support?
A3: The accelerometer supports a frequency response from 0.5 Hz up to 10,000 Hz.
Q4: What type of electrical output does it produce?
A4: The device outputs a signal proportional to acceleration and requires constant current excitation (18–28 VDC, 2–20 mA) to operate.
Q5: Can this sensor operate in harsh environments?
A5: Yes, it is housed in a hermetically sealed stainless steel case and is rated for high humidity and wide temperature conditions.
Q6: What is the shock survivability of this accelerometer?
A6: It can withstand shocks up to 5,000 g peak without performance degradation.
Q7: How is the accelerometer mounted?
A7: It mounts via a ¼‑28 to M8 × 1.25 BeCu stud, allowing secure attachment to machinery housings.
Q8: Does the product include certifications or approvals?
A8: The product is designed for industrial monitoring applications and meets standard industry requirements; specific certifications depend on the ordering configuration.
