Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 21000-00-00-000-640-102 |
| Manufacturer | Bently Nevada |

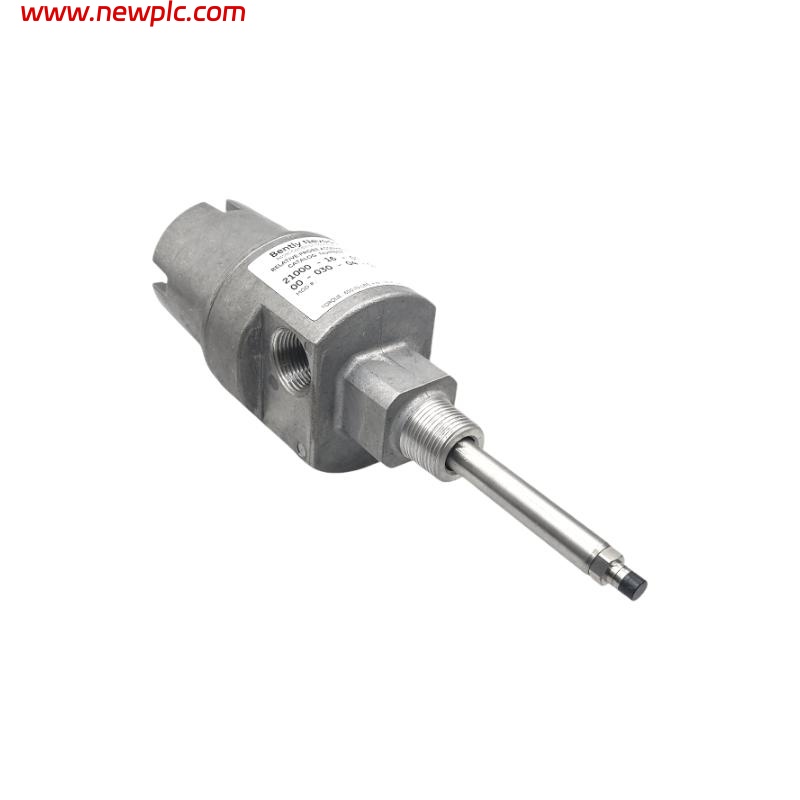

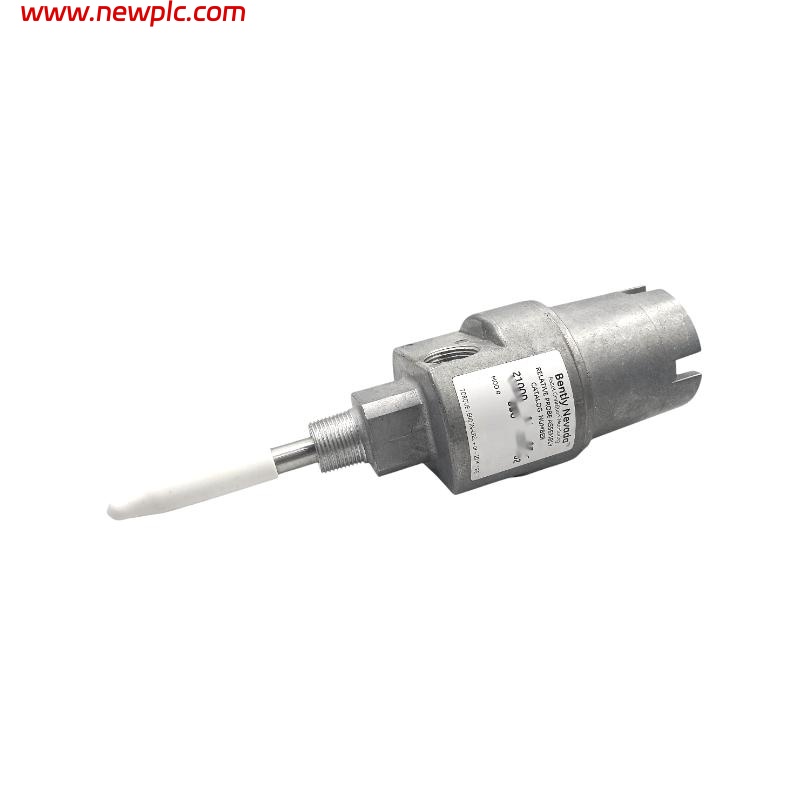

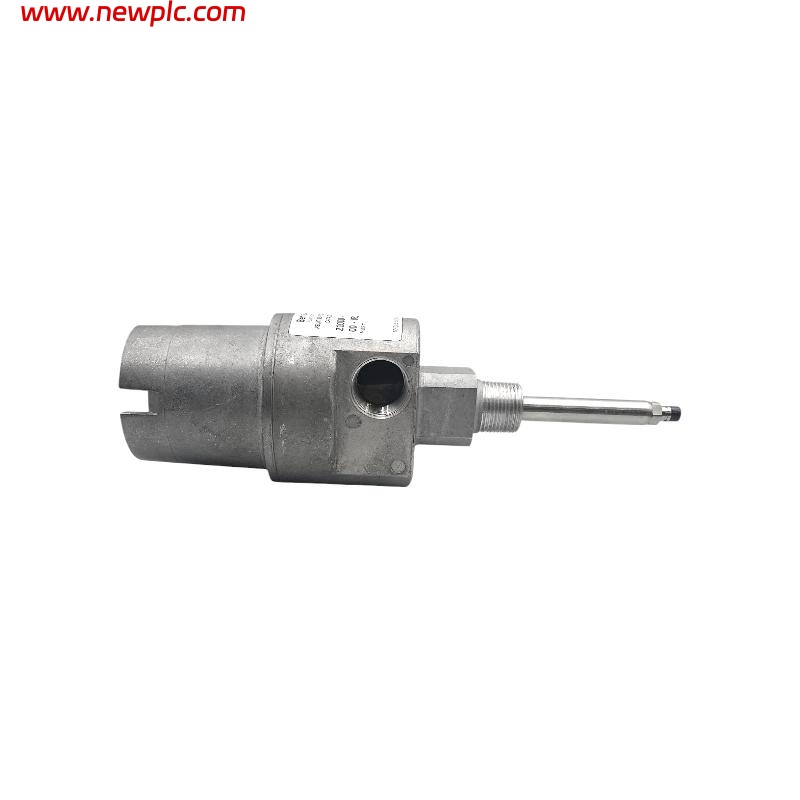

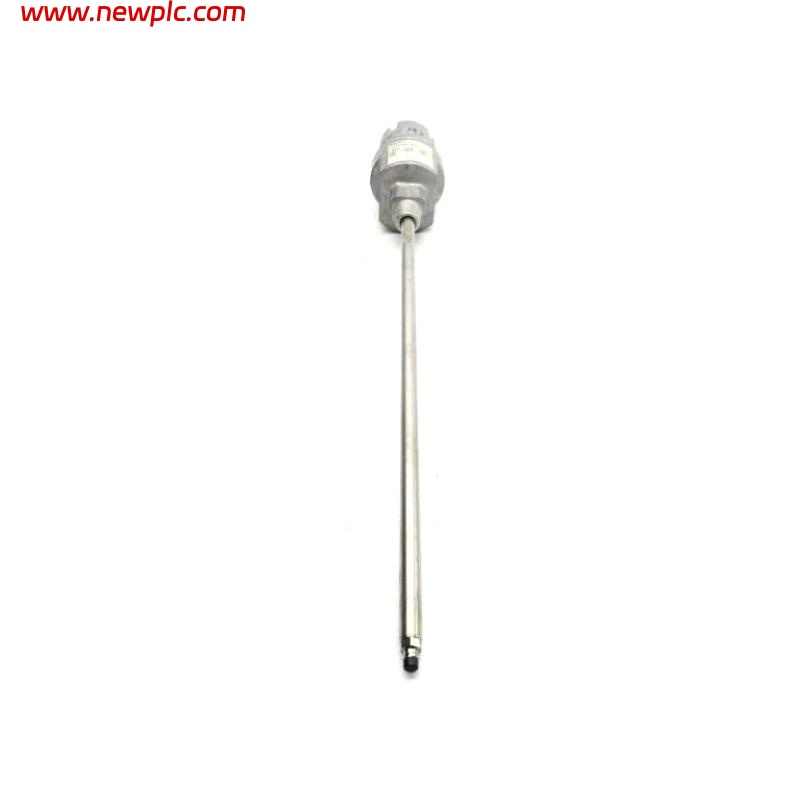

| Product Type | 3300 XL Proximity Probe / Eddy‑Current Sensor |
| Product Series | 3300 XL Proximity Probe Series |
| Measurement Principle | Non‑contact eddy‑current displacement measurement |
| Probe Diameter | 8 mm |
| Probe Tip Material | Stainless steel |
| Cable Type | Armored coaxial industrial cable |
| Connector Type | 3300 XL ClickLoc™ connector |
| Cable Length | 10 meters |
| Linear Measurement Range | Approximately 2 mm |
| Recommended Probe Gap | 1.27 mm (50 mil) |
| Frequency Response | 0 – 10 kHz (depending on system configuration) |
| Minimum Shaft Diameter | 76.2 mm (3 in) |
| Dimensions (Probe × Case × Cable) | Probe diameter 8 mm × Probe length 100 mm × Cable length 10 m |
| Weight | Approximately 0.6 kg |
| Operating Temperature | −52°C to +177°C |
| Maximum Temperature (optional) | Up to +218°C |
| Typical Applications | Turbines, compressors, pumps, fans, motors, and other critical rotating machinery |
| Compliance Standards | API 670, CE, RoHS |
FAQ
FAQ
Q1. What is the primary function of the 21000-00-00-000-640-102 probe?
It measures shaft vibration and displacement using non-contact eddy-current technology for machinery protection and monitoring.
Q2. Which system is this probe designed for?
It is compatible with the Bently Nevada 3300 XL proximity transducer system.
Q3. What is the cable length of this probe?
The cable length is 10 meters.
Q4. What is the recommended probe gap?
The recommended gap is 1.27 mm (50 mil).
Q5. What is the probe diameter and tip material?
The probe diameter is 8 mm, and the tip is stainless steel.
Q6. What temperature ranges can the probe operate in?
Standard operation is −52°C to +177°C, with optional high-temperature operation up to +218°C.
Q7. What machinery typically uses this probe?
It is used in turbines, compressors, pumps, fans, motors, and other critical rotating machinery.
Q8. Why are non-contact probes preferred in industrial monitoring?
Non-contact probes eliminate mechanical wear, maintain high measurement accuracy, and enable continuous monitoring of high-speed shafts without affecting operation.
