Technical Specifications
| Parameter | Description |
|---|---|

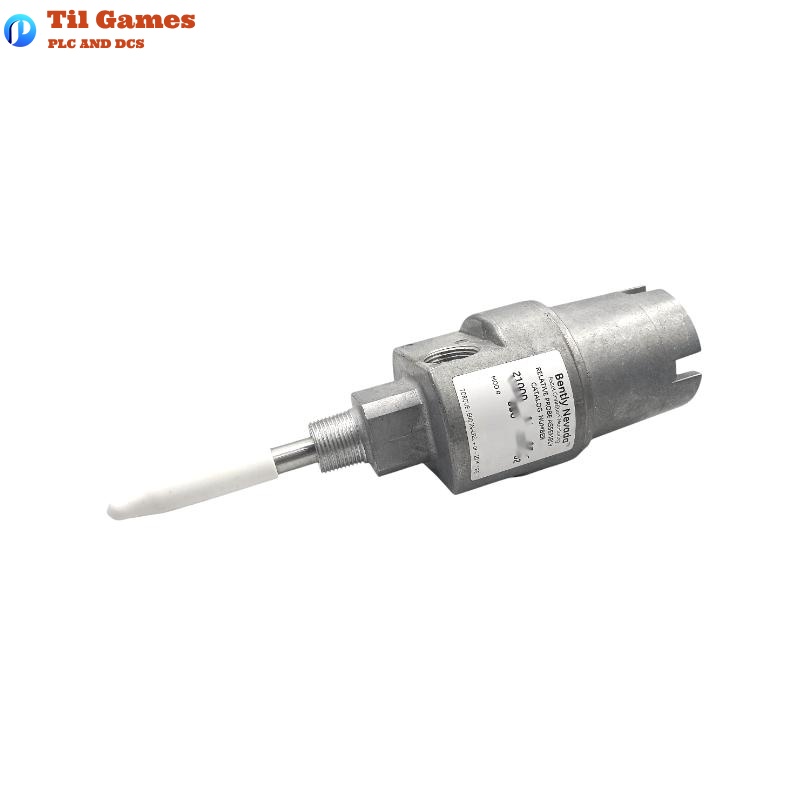

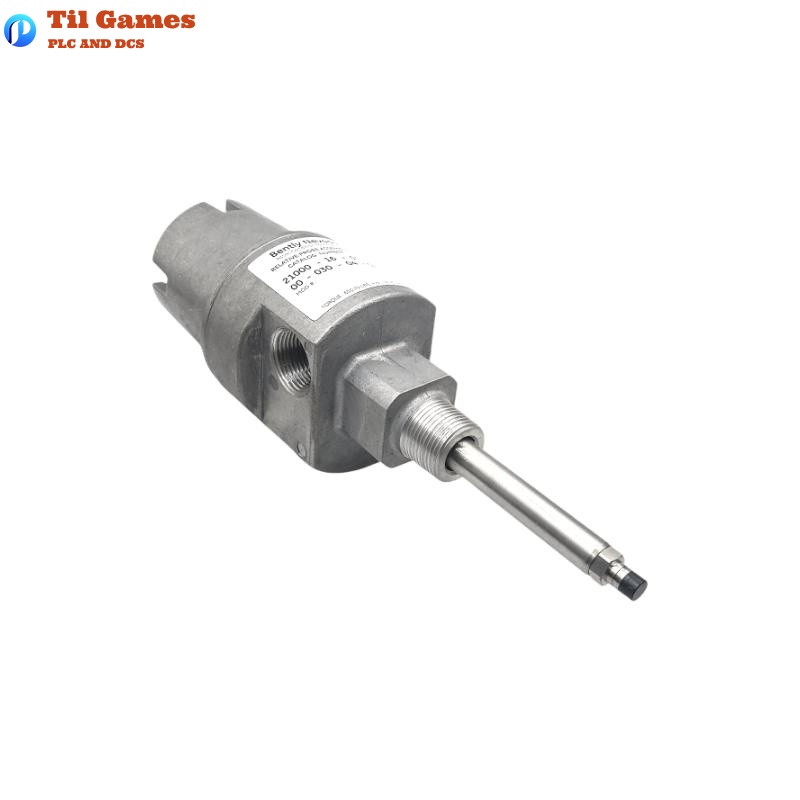

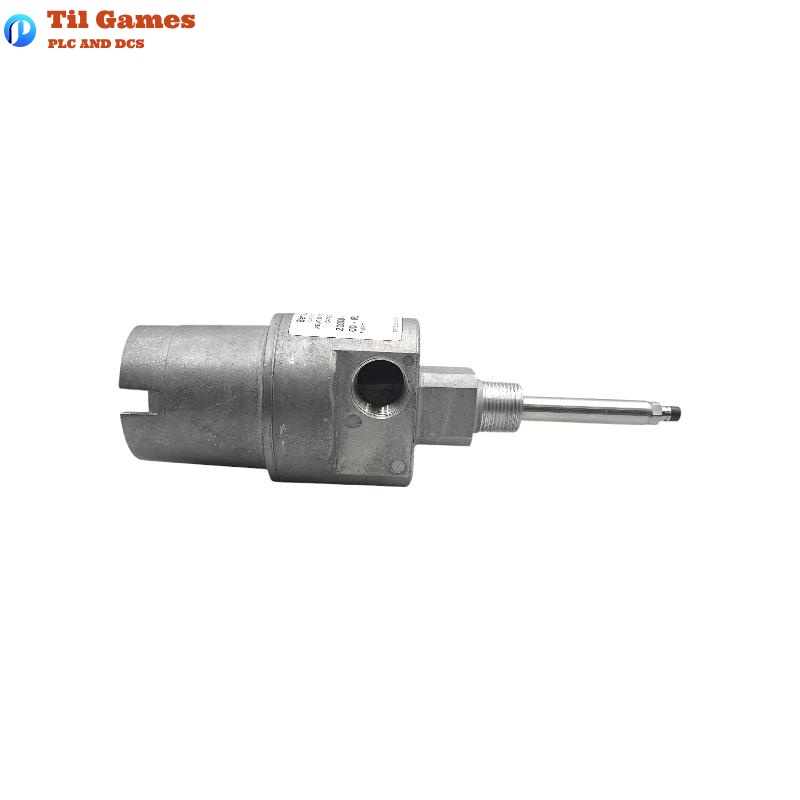

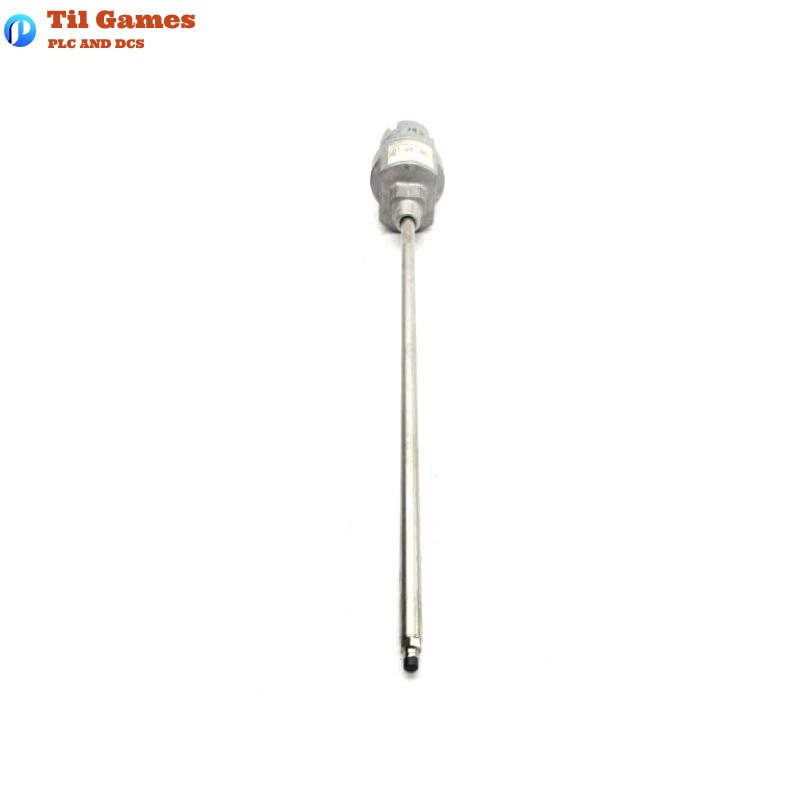

| Model Number | Bently Nevada 21000-00-00-15-030-04-02 |
| Housing Material | Aluminum body with 304 stainless steel sleeve |
| Operating Temperature | -51°C to +177°C |
| Storage Temperature | -51°C to +177°C |
| Compatible Probe Types | 3300 XL 8mm, 3300 XL 11mm, 3300 NSv (reverse mount) |
| Housing Body Diameter | 83.3 mm |
| Weight (Typical) | 1.1 kg (without fittings) |
| Mounting Thread Options | As-cast, 3/4-14 NPT, 1/2-14 BSP, etc. |
| Cable Length Options | 0.5m, 1.0m, 12in, 18in, 24in, 30in, 36in |
| Hazardous Area Rating | CSA certified for Class I, II, III (T5 @ 40°C; T4 @ 80°C) |
| Enclosure Type | CSA Type 4 enclosure |
FAQ
Frequently Asked Questions (FAQ)
Q1: Which probes are compatible with the 21000 housing?
A1: It supports 3300 XL 8mm, 3300 XL 11mm, and 3300 NSv reverse mount probes.
Q2: Is the 21000 housing explosion-proof?
A2: Yes, the 21000 housing is CSA-certified for use in hazardous areas (Class I, II, III) and complies with API 670.
Q3: Are different cable lengths available?
A3: Yes, cable lengths such as 0.5m, 1.0m, 12in, 18in, etc., are available based on ordering options.
Q4: Can the probe sleeve length be customized?
A4: Yes, it can be ordered in 0.1-inch (3 mm) increments. Sleeves longer than 304 mm require additional support.
Q5: What is the temperature range for this housing?
A5: Both operating and storage temperatures range from -51°C to +177°C.
Q6: What mounting thread options are available?
A6: Multiple options including as-cast (no thread), 3/4-14 NPT, and 1/2-14 BSP are available.
Q7: Does the housing come with fittings?
A7: Fittings such as explosion-proof connectors and reducers are optional based on the configuration code.
Q8: Is this housing approved for international markets?
A8: Only the CA21000 variant supports multi-region certifications. The standard 21000 is for North American use.
