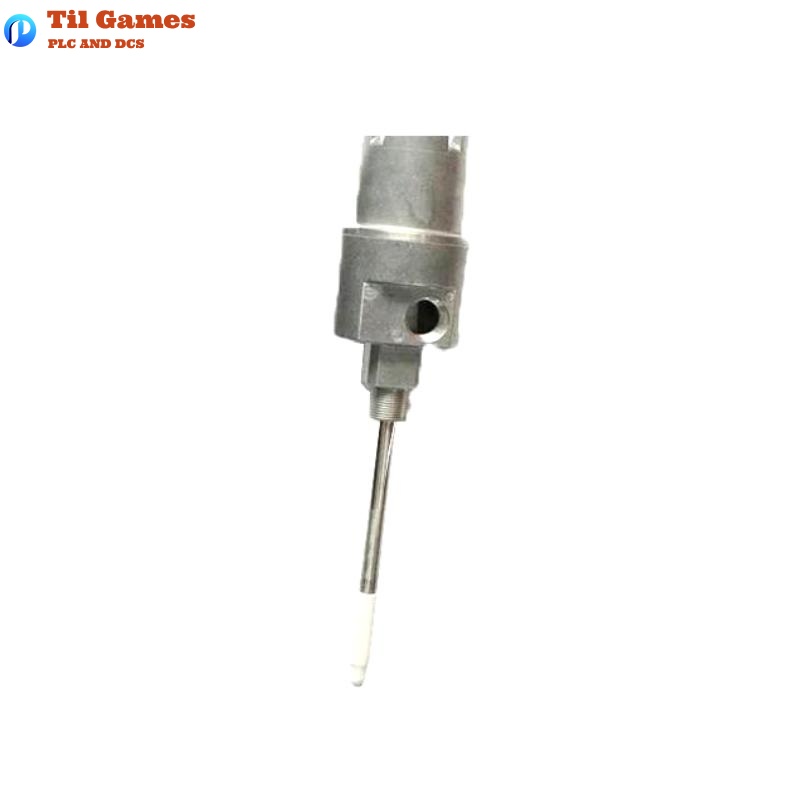

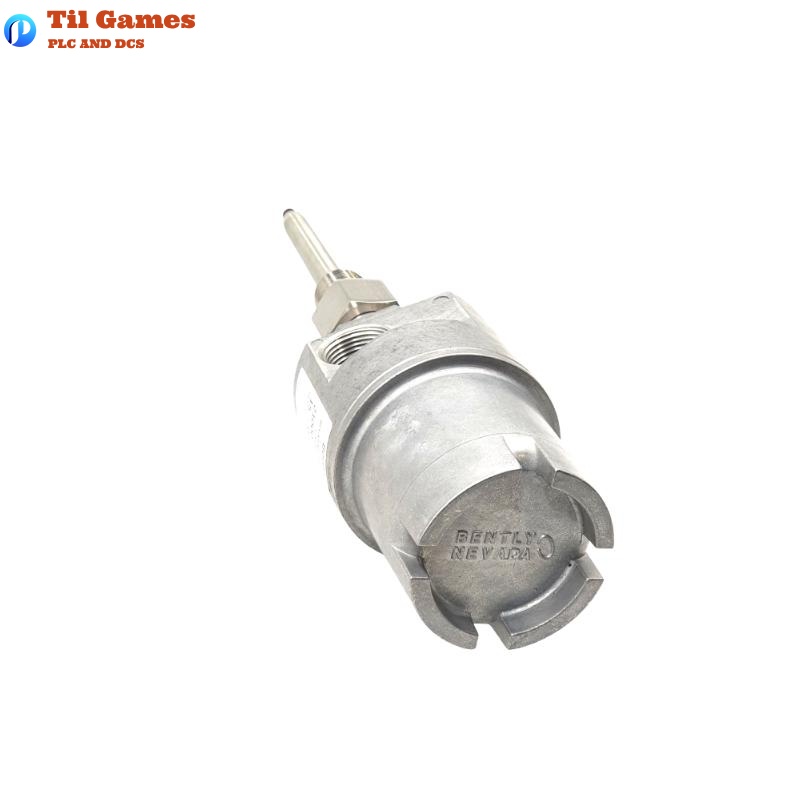

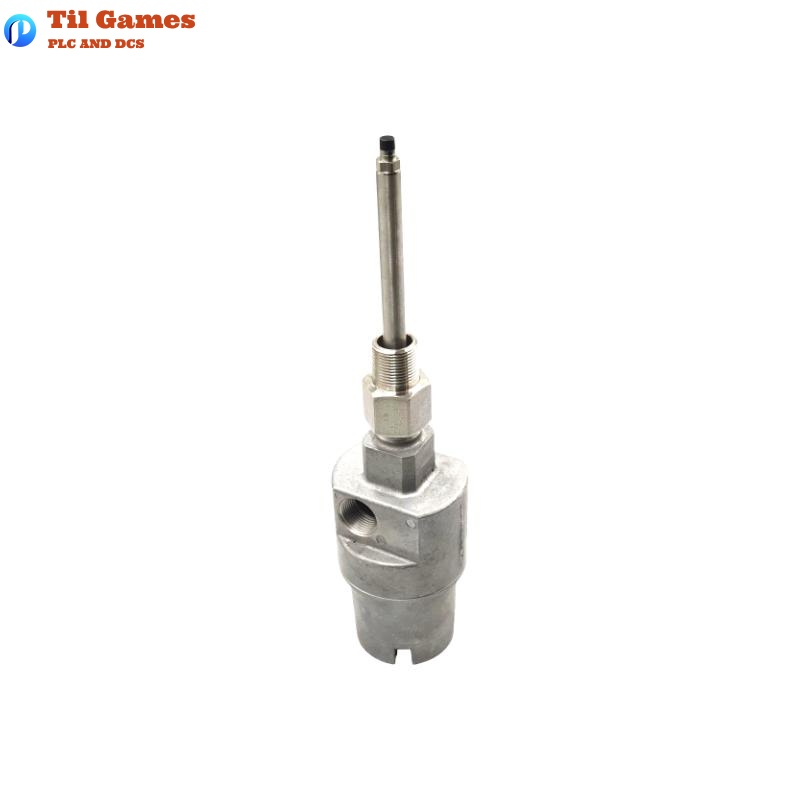

Bently Nevada 21000-16-10-15-085-03-02 Proximity Probe Housing Assemblies

FAQ

Q1: What is the diameter and weight of the 21000 Proximity Probe Housing?
A1: The housing body diameter is 83.3 mm (3.28 in) and the weight is 1.1 kg (2.4 lbs), not including fittings.

Q2: What is the operating temperature range for this assembly?
A2: The operating temperature range is -51°C to +177°C (-60°F to +351°F) for compatible probes.

Q3: Which probes are supported with this housing assembly?
A3: The assembly supports 3300 XL 8mm, 3300 XL 11mm, and 3300 NSv proximity probes.

Q4: Is this housing certified for use in hazardous areas?
A4: Yes, the 21000 housing is CSA certified for explosion-proof use in hazardous areas and is CSA Type 4 rated.

Q5: What materials are used in the construction of the 21000 housing?
A5: The 21000 housing uses an aluminum body with a 304 stainless steel sleeve.

Q6: What are the mounting thread options for this housing?
A6: Mounting thread options include as cast (no thread), 3/4-14 NPT, 1-11 1/2 NPT, 1/2-14 BSP, and 7/8-14 UNF-2A.

Q7: Can the sleeve length be customized?
A7: Yes, the sleeve length is customizable per order. Standard lengths are available up to 304 mm, with longer sleeves requiring additional support.

Q8: Does the 21000 housing meet industry standards?
A8: Yes, it is compliant with API 670 for externally mounted proximity probe housings and meets RoHS standards.

21000-16-10-15-085-03-02 Bently Nevada Proximity Probe Housing Assemblies
