Technical Specifications
| Item | Specification |
|---|---|
| Model | 21000-28-05-00-067-03-02 |

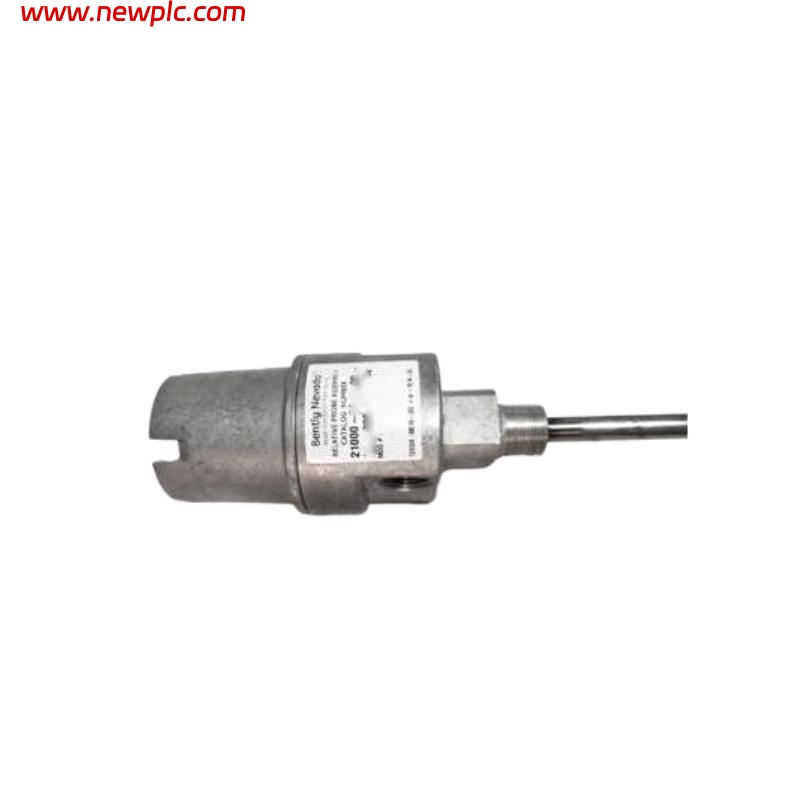

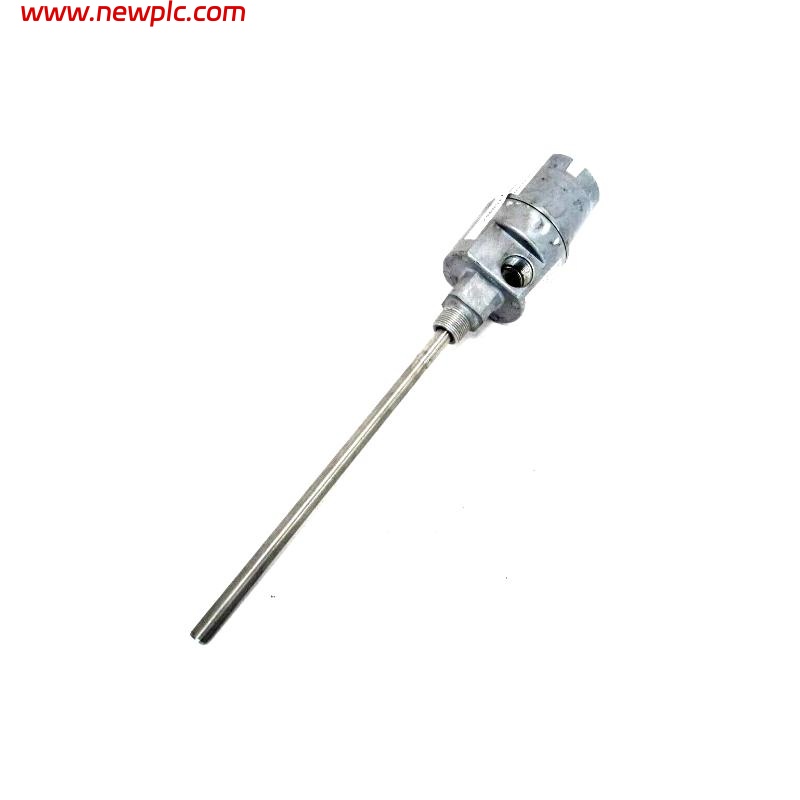

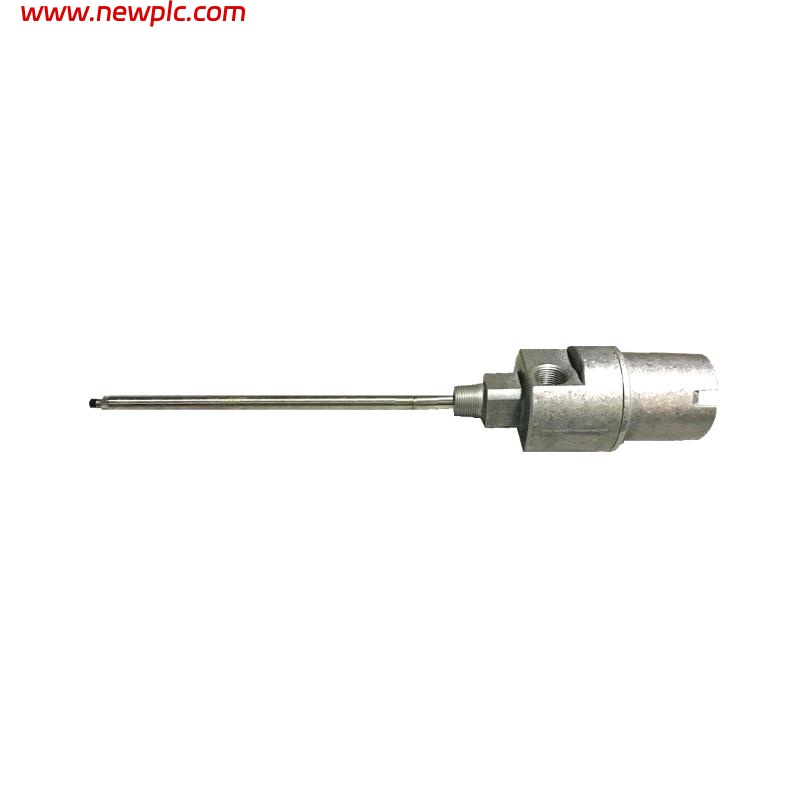

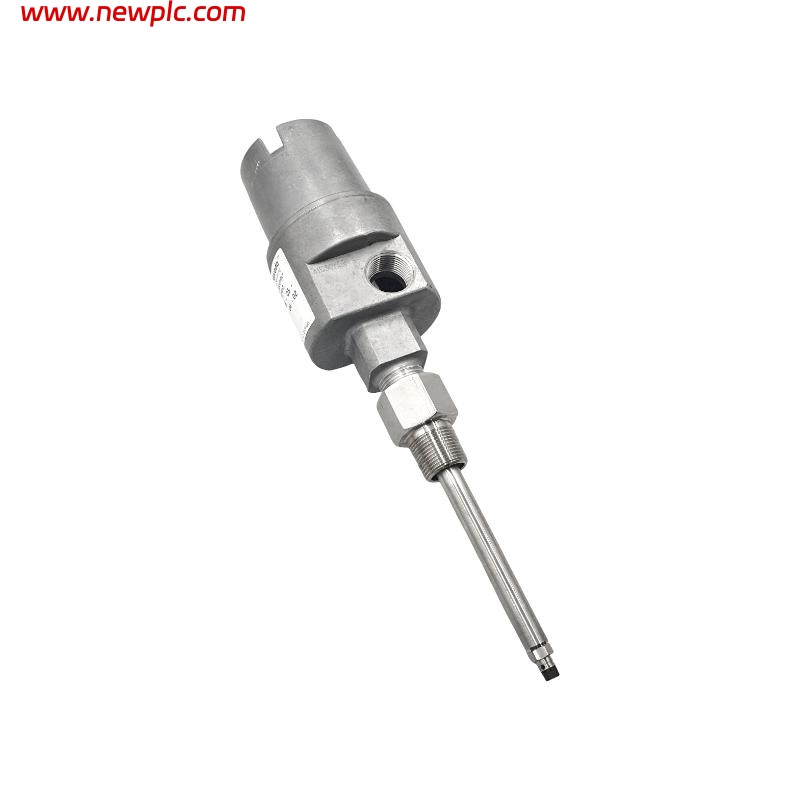

| Type | Proximity probe housing assembly (externally mounted) |
| Probe Type | 3300 XL, 8 mm with selectable hazardous-area approvals |
| Cable Length | 0.5 m |
| Standoff Adapter | None (00) |
| Probe Penetration | 6.7 in (≈ 170 mm) |
| Mounting Thread | 3/4-14 NPT |
| Fittings | 3/4-14 NPT plug, 3/4-14 → 1/2-14 NPT reducer, cable seal grip |
| Body Material | Aluminum |
| Sleeve Material | 304 stainless steel |
| Dimensions | Ø50 mm × 170 mm (approx.) |
| Weight | ~2.0 kg |
| Operating / Storage Temperature | –51 °C to +177 °C |
| Protection / Approval | Explosion-proof capable |
FAQ
FAQ
Q1: What does “28-05-00-067-03-02” in the model number mean?
“28” = 3300 XL probe with selectable approvals; “05” = 0.5 m cable; “00” = no standoff adapter; “067” = 6.7 in penetration; “03” = fittings set (plug + reducer + seal grip); “02” = 3/4-14 NPT mounting thread.
Q2: Is the proximity probe included with the housing?
Yes. The assembly includes the 3300 XL 8 mm probe installed and wired with the housing.
Q3: What are the dimensions and weight of the assembly?
Approximately Ø50 mm × 170 mm, weighing about 2.0 kg.
Q4: What materials are used in construction?
The housing body is aluminum, and the sleeve (probe support) is 304 stainless steel.
Q5: What is the operating temperature range?
Rated for –51 °C to +177 °C for operation and storage.
Q6: What fittings are included under the “03” option?
A 3/4-14 NPT plug, a 3/4-14 → 1/2-14 NPT reducer, and a cable seal grip.
Q7: Can this assembly be used in hazardous or explosive environments?
Yes. It is designed for explosion-proof applications when properly installed.
Q8: Can a standoff adapter or different penetration length be added later?
This variant does not include a standoff adapter. To change penetration or add one, a different model or compatible adapter must be used.
