Technical Specifications
| Item | Specification |
|---|---|

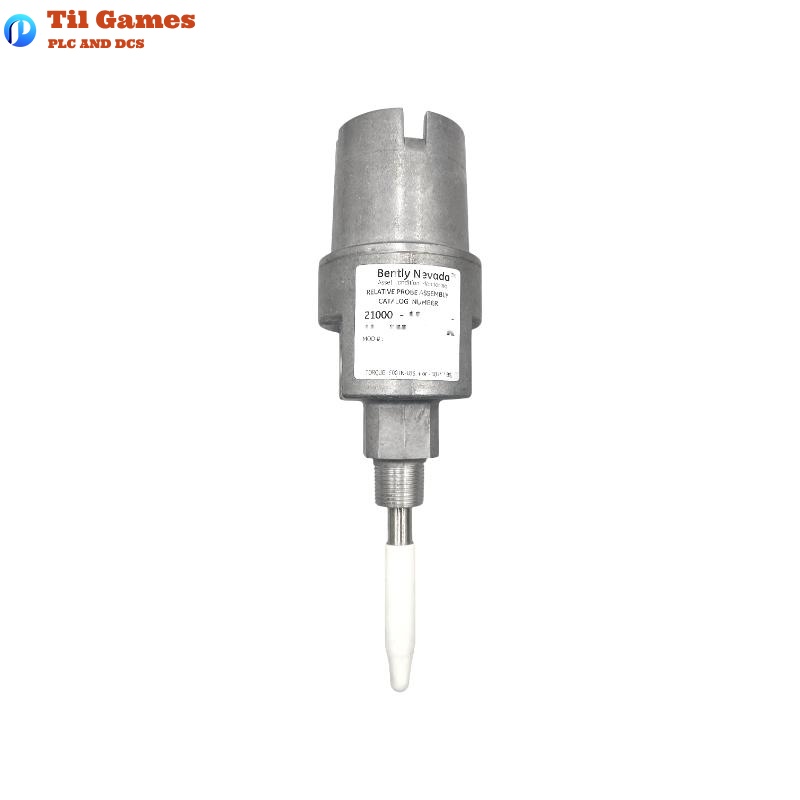

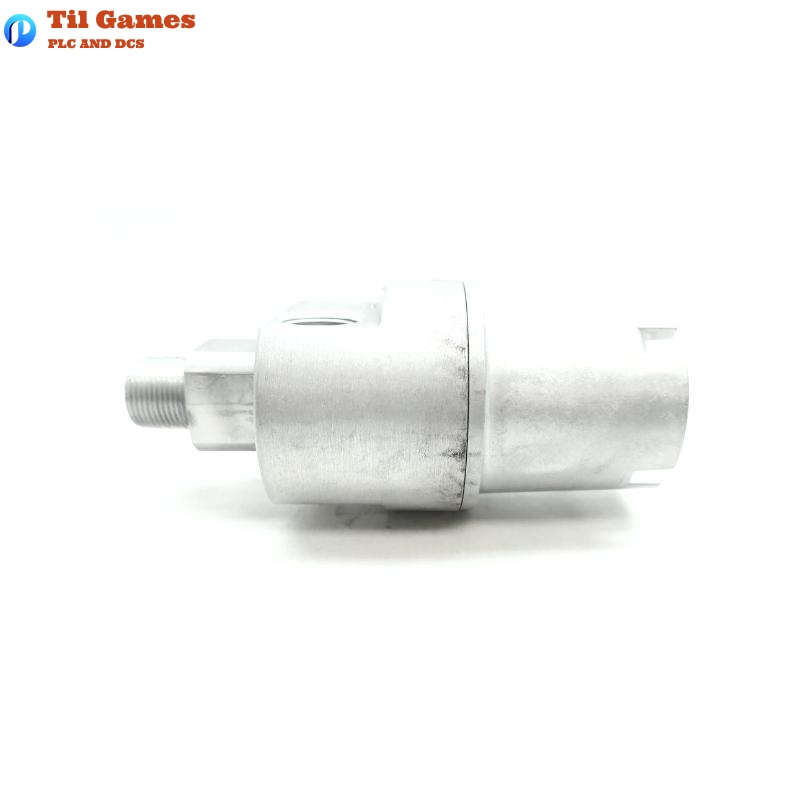

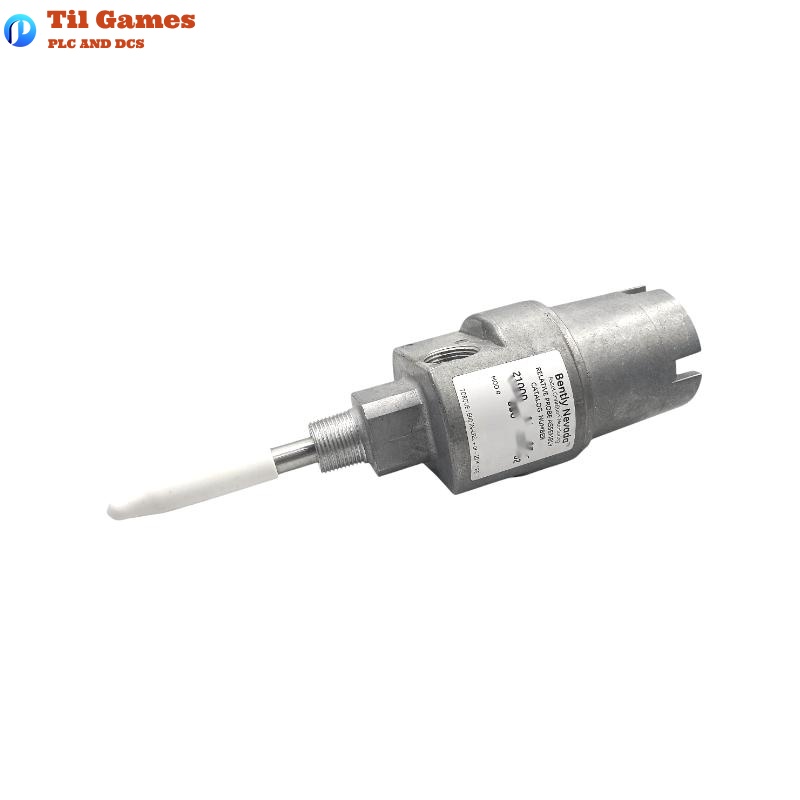

| Model | Bently Nevada 21000-28-05-00-092-03-02 |
| Material | Aluminum body with 304 stainless steel sleeve |
| Temperature Range | -51°C to +177°C (Operating & Storage) |
| Supported Probe Types | 3300 XL 8mm / 11mm, NSv reverse mount probes |
| Mounting Type | External mounting housing |
| Protection Rating | CSA explosion-proof, API 670 compliant |
| Thread Options | Multiple (e.g., 3/4-14 NPT, 1/2-14 BSP) |
| Probe Sleeve Length | Up to 742 mm (with 1.0 m cable) |
| Probe Penetration (D) | Minimum 25.4 mm, configurable by 0.1 in steps |
| Standoff Adapter (C) | 38 mm to 191 mm, configurable by 13 mm steps |
| Housing Body Diameter | 83.3 mm |
| Housing Weight | 1.1 kg (without fittings) |
| Mounting Interface | Supports optional explosion-proof & cable fittings |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of probes are supported by this housing?
A1: It supports 3300 XL 8mm, 3300 XL 11mm, and 3300 NSv reverse mount probes.
Q2: Is this housing suitable for hazardous areas?
A2: Yes, the 21000 series is CSA-certified for Class I, II, III Div 1 & 2 explosion-proof environments.
Q3: Does the housing comply with API standards?
A3: Yes, it meets the API 670 standard for externally mounted proximity probes.
Q4: What is the maximum sleeve length supported?
A4: With a 1.0 m cable, the sleeve length can go up to 742 mm. Sleeves over 304 mm require support.
Q5: Are custom mounting threads available?
A5: Yes, options include 3/4-14 NPT, 1/2-14 BSP, 7/8-14 UNF, and others.
Q6: Are explosion-proof or cable seal fittings supported?
A6: Yes, option E allows selection of explosion-proof fittings and reducers.
Q7: Is the housing weatherproof?
A7: It has a Type 4 enclosure rating, providing dust and water protection.
Q8: Is the probe included in this model?
A8: Depending on ordering option A, the probe may or may not be included.
