Technical Specifications
| Item | Specification |
|---|---|
| Model | 21000‑28‑05‑15‑050‑03‑02 |

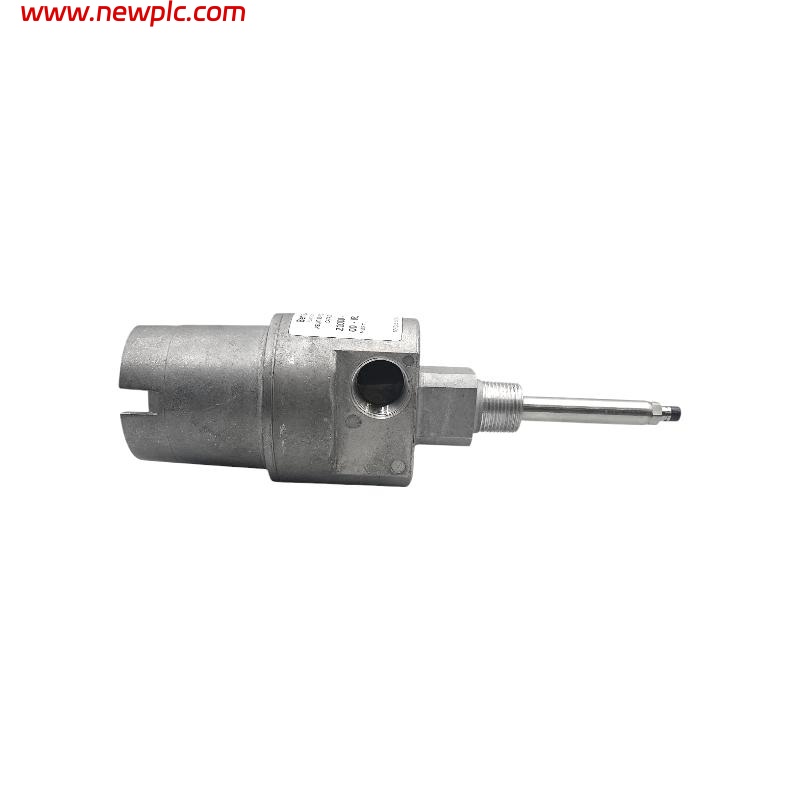

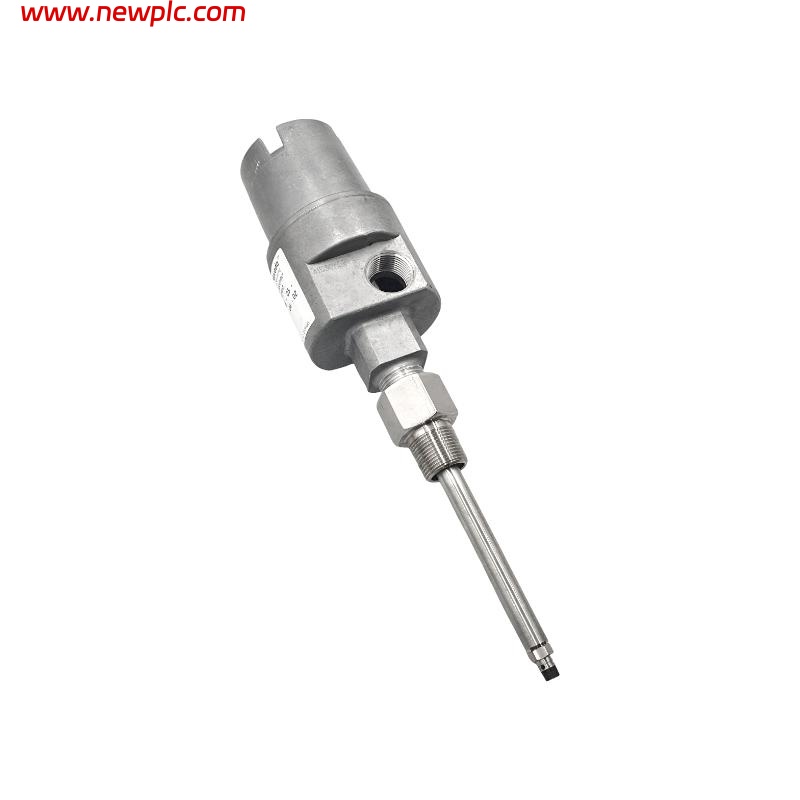

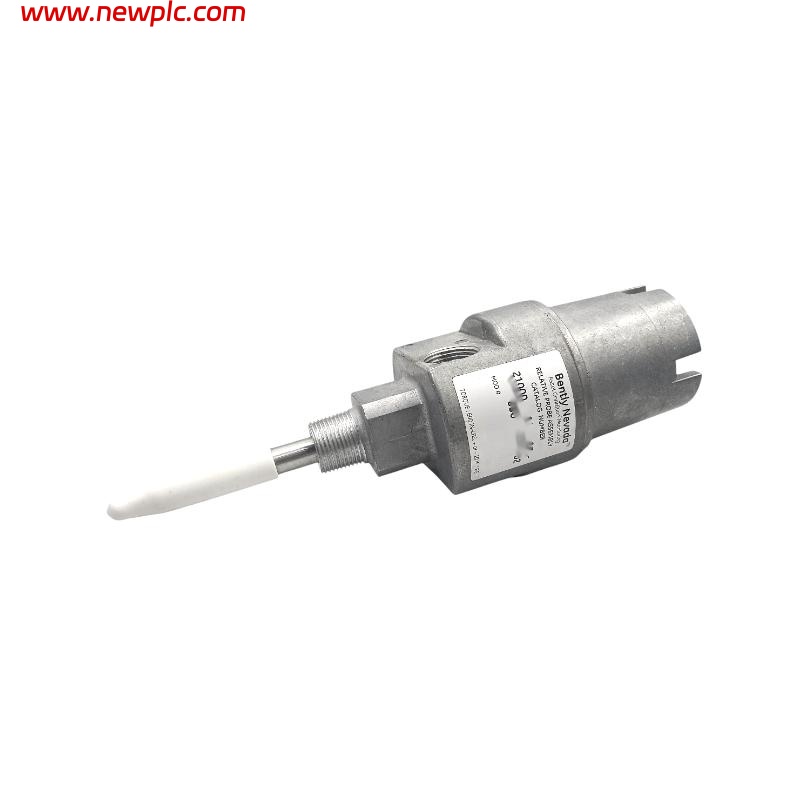

| Type | Proximity probe housing / assembly (external mount) |
| Probe Type | 3300 XL 8 mm probe with selectable hazardous‑area approvals |
| Cable Length | 0.5 m |
| Standoff Adapter | 1.5 in (≈ 38 mm) |
| Probe Penetration | 5.0 in (≈ 127 mm) |
| Mounting Thread | 3/4‑14 NPT |
| Fittings | 3/4‑14 NPT plug, 3/4‑14 → 1/2‑14 NPT reducer, cable seal grip |
| Body Material | Aluminum |
| Sleeve Material | 304 stainless steel |
| Dimensions | Ø50 mm × ~185 mm (approx., includes standoff + penetration) |
| Weight | ~1.1 kg (without fittings) |
| Operating / Storage Temperature | –51 °C to +177 °C |
| Protection / Approval | Explosion‑proof capable, CSA / API 670 compliant |
FAQ
FAQ
Q1: What does “28‑05‑15‑050‑03‑02” in the model number indicate?
“28” = 3300 XL 8 mm probe with selectable approvals; “05” = 0.5 m cable; “15” = 1.5 in standoff adapter; “050” = 5.0 in probe penetration; “03” = the set of fittings (plug + reducer + seal grip); “02” = 3/4‑14 NPT mounting thread.
Q2: Is the proximity probe and cable included in the assembly?
Yes — this housing is supplied as a complete unit with the 3300 XL probe and 0.5 m cable preinstalled.
Q3: What are the approximate dimensions and weight?
Approximately Ø50 mm in diameter and ~185 mm in overall length (including standoff). The unit weighs about 1.1 kg without additional fittings.
Q4: What materials are used in its construction?
The housing body is aluminum, and the sleeve (probe support) is made of 304 stainless steel, offering mechanical strength and corrosion resistance.
Q5: What operating temperature range is supported?
This unit is rated for operation and storage from –51 °C up to +177 °C.
Q6: What fittings are included with the “03” option?
It includes a 3/4‑14 NPT plug, a 3/4‑14 to 1/2‑14 NPT reducer, and a cable seal grip for accommodating a range of cable diameters.
Q7: Can this assembly be used in explosive or hazardous environments?
Yes. It is designed with explosion‑proof capability and meets CSA / API 670 standards when properly installed and specified.
Q8: Can I change the standoff adapter or penetration length later?
This variant includes a 1.5 in standoff adapter. To alter it or use a different penetration, you must order another variant with the needed suffix or use a compatible external adapter.
