Technical Specifications
| Parameter | Value |
|---|---|

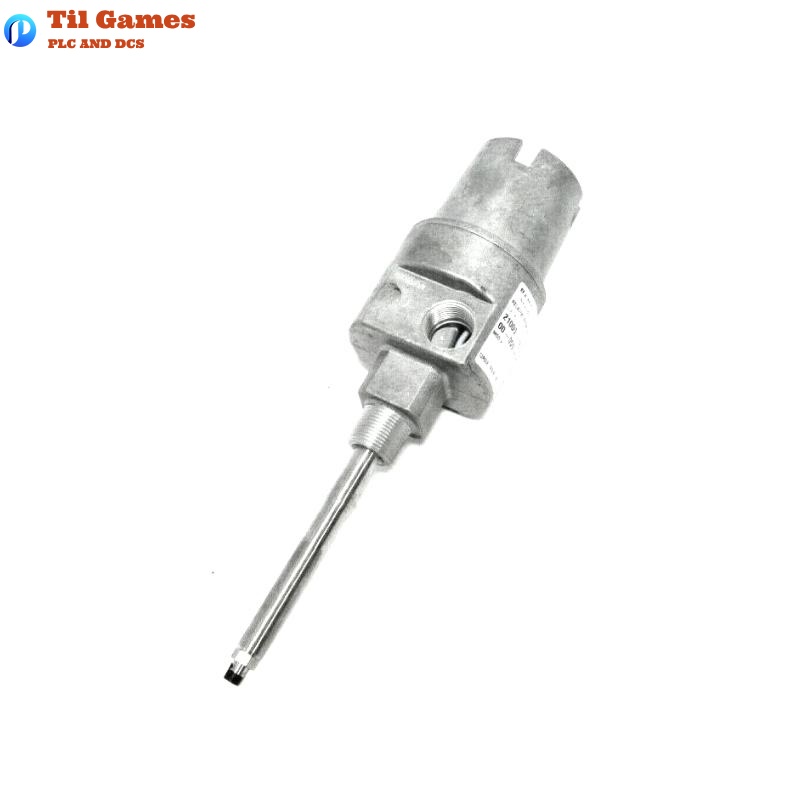

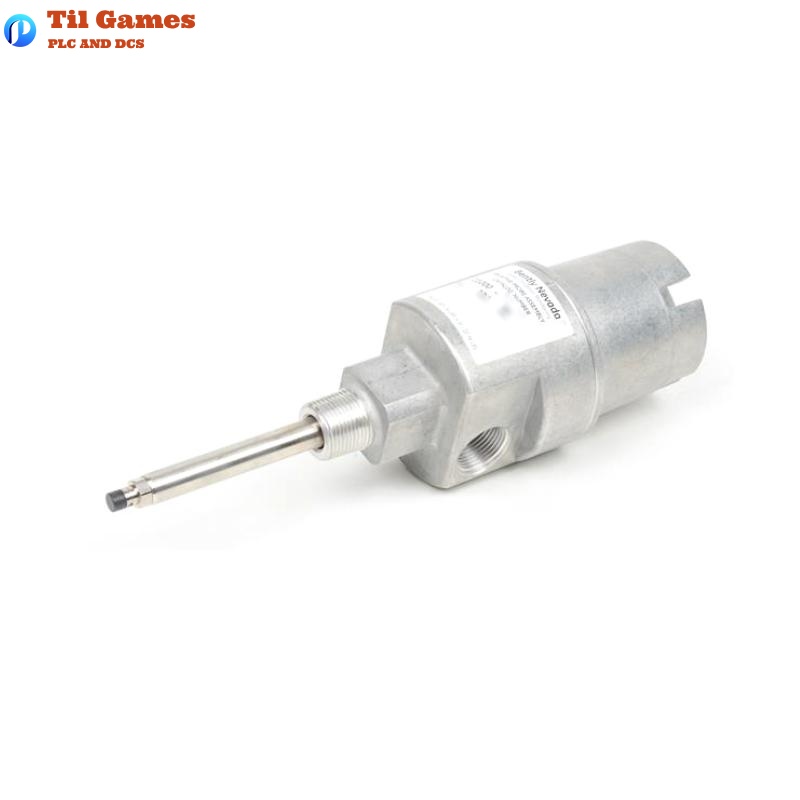

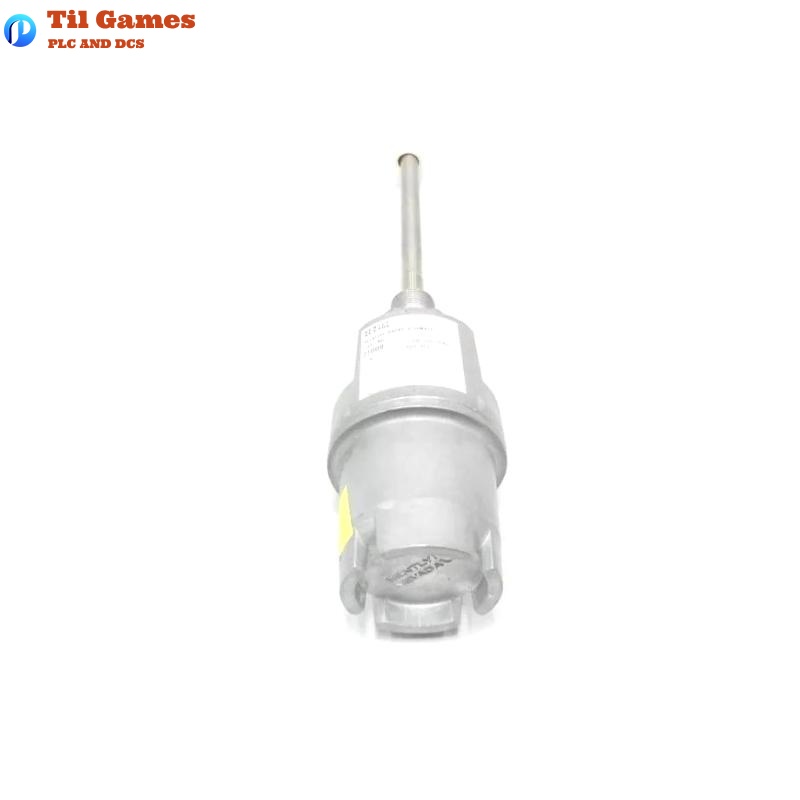

| Model Number | 21000-28-10-00-119-03-02 |
| Housing Material | Aluminum housing with 304 stainless steel probe sleeve |
| Operating Temperature | -51°C to +177°C (-60°F to +351°F) |
| Storage Temperature | -51°C to +177°C (-60°F to +351°F) |
| Environmental Protection | CSA Type 4 Enclosure, Explosion-proof (North America) |
| Compliance | API 670 Standard, RoHS Directive 2011/65/EU |
| Probe Type | 3300 XL 8mm (with hazardous area approval) |
| Probe Cable Length | 1.0 meter (39 inches) |
| Standoff Adapter Length (C) | 1.5 inches (38 mm) |
| Probe Penetration Length (D) | 1.19 inches (30.2 mm) |

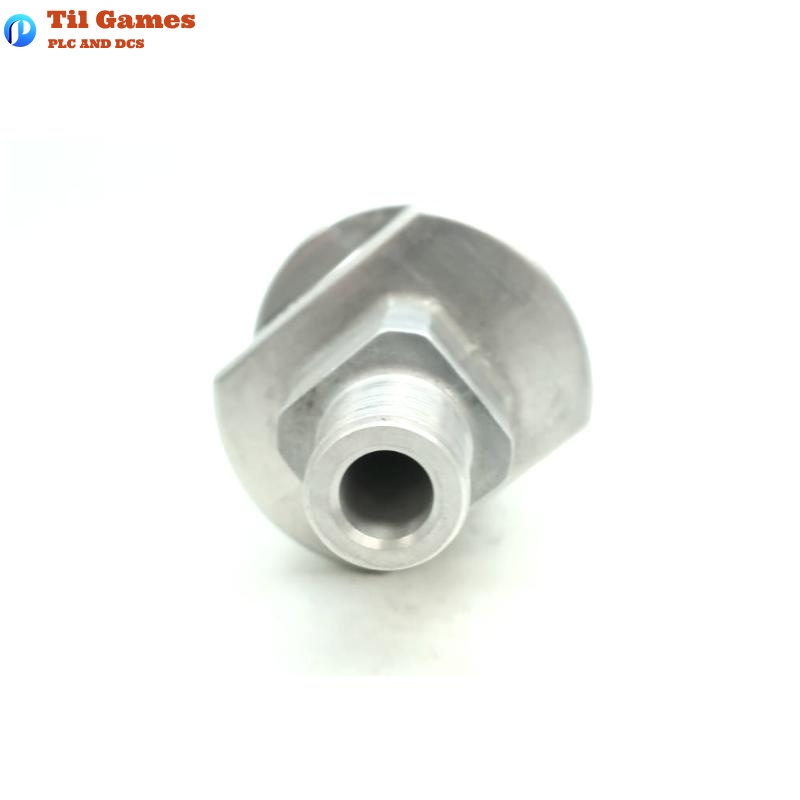

| Mounting Thread | 3/4-14 NPT |
| Fitting Type | One 3/4-14 NPT plug + one 3/4-14 to 1/2-14 NPT reducer (Option 03) |
| Housing Body Diameter | 83.3 mm (3.28 in) |
| Housing Weight | 1.1 kg (2.4 lb) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the operating temperature range of the 21000 housing?
A1: The housing supports operation from -51°C to +177°C, suitable for harsh industrial environments.
Q2: What material is used for the 21000 housing assembly?
A2: The housing body is aluminum, and the probe sleeve is made from 304 stainless steel.
Q3: Is the 21000 housing compliant with API standards?
A3: Yes, it complies with the American Petroleum Institute (API) 670 standard.
Q4: What environmental certifications does it carry?
A4: It is CSA Type 4 rated and explosion-proof for Class I, II, and III Divisions in North America.
Q5: Can the probe sleeve length be customized?
A5: Yes, sleeve lengths can be customized, but support is required for lengths over 304 mm.
Q6: What thread type is required for mounting?
A6: A 3/4-14 NPT thread is required when a standoff adapter is used.
Q7: What is the maximum allowable length of probe penetration (C+D)?
A7: The maximum C+D dimension for a 1.0 m cable is 742 mm.
Q8: What is the weight and body diameter of the housing?
A8: The housing has a body diameter of 83.3 mm and weighs approximately 1.1 kg.
