Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Bently Nevada |

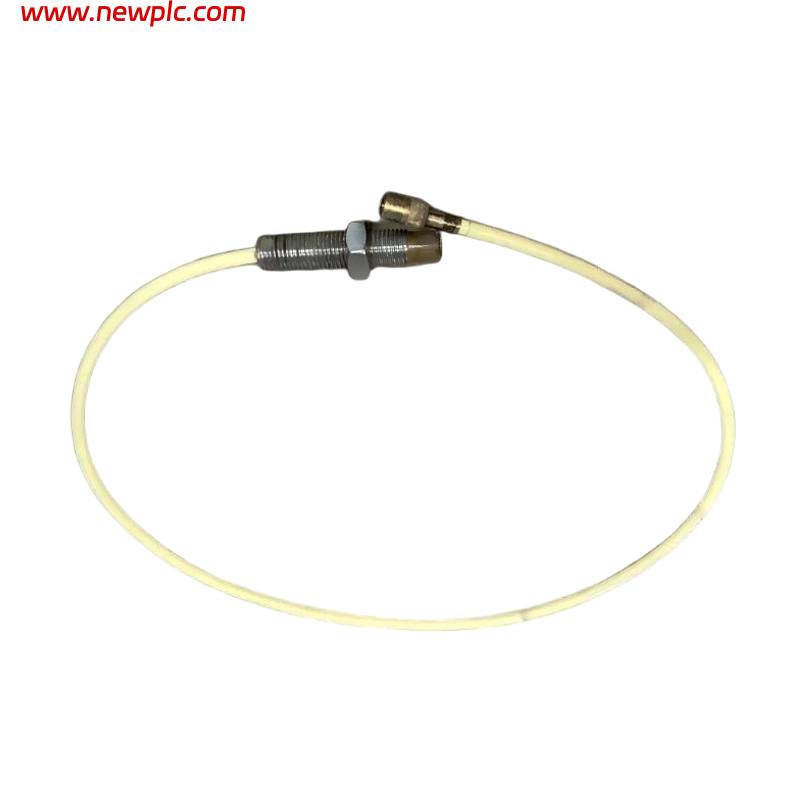

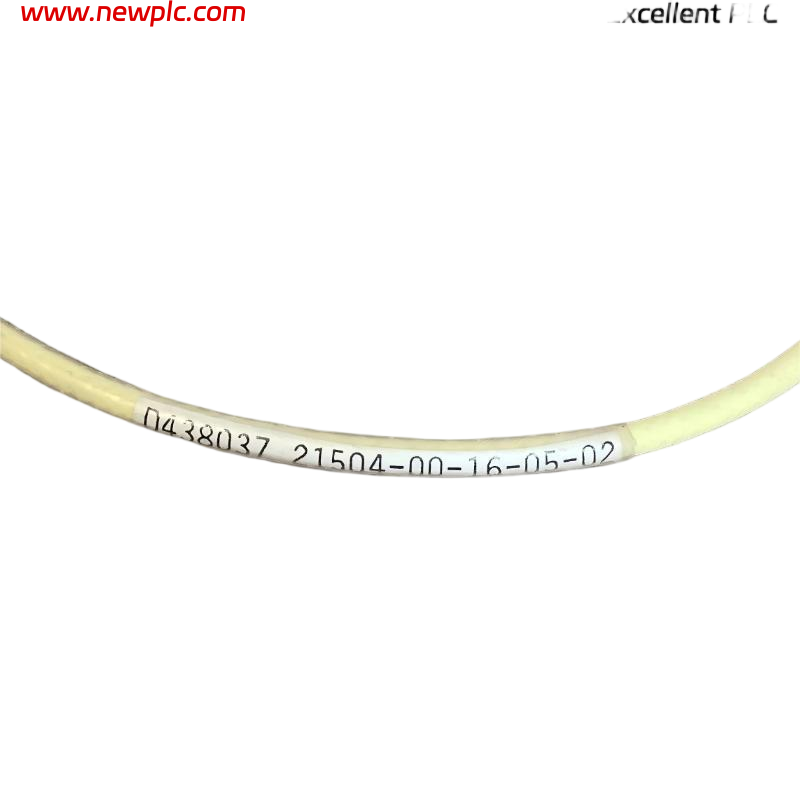

| Product Model | Bently Nevada 21504‑00‑16‑05‑02 |
| Product Type | 7200 Series Proximity Standard Mount Probe |
| Measurement Principle | Eddy‑current non‑contact displacement and vibration measurement |
| Sensing Diameter | 8 mm |
| Measurement Range | 0.25 mm to 2.0 mm (10–80 mils) |
| Accuracy | ±0.02 mm (±0.8 mils) |
| Signal Output | Approx. 200 mV/mil (7.87 V/mm) |
| Frequency Response | DC to ~10 kHz |
| Operating Temperature | Probe and cable up to +100 °C (probe electronics typical) |
| Environmental Protection | IP67 rated against dust and water ingress |
| Connector Type | Miniature coaxial connector |
| Thread / Mounting | 3/8‑24 thread adapter included for standard installation |
| Cable Length | 0.5 m (20 in) |
| Housing Material | Stainless steel construction |
| Dimensions | 160 mm overall case length (probe body) |
| Weight | 0.18 lbs (≈ 0.082 kg) |
| Compliance | Designed for industrial condition monitoring systems |
FAQ
FAQ
Q1: What is the primary function of this proximity probe?
A1: It is a non‑contact displacement and vibration sensor used in machinery condition monitoring systems to measure shaft position and vibration.
Q2: What measurement range does this probe support?
A2: It operates over a sensing range from 0.25 mm up to 2.0 mm (10–80 mils) from the target surface.
Q3: What kind of output signal does the probe provide?
A3: The probe produces an analog voltage output proportional to the gap between the target and the sensor tip.
Q4: What frequency range can this probe detect?
A4: It supports a broad frequency response up to approximately 10 kHz, suitable for dynamic vibration analysis.
Q5: In what environments can the probe operate?
A5: The probe is built with industrial‑grade housing and IP67 protection, making it suitable for dusty and wet conditions.
Q6: How is the probe physically installed?
A6: It mounts with a 3/8‑24 threaded connection and includes an adapter for standard industrial installations.
Q7: Do I need special signal conditioning hardware?
A7: Yes, the probe connects to a compatible proximitor or monitoring system that conditions the raw signal for analysis and protective functions.
Q8: Is this probe suitable for high‑speed rotating machinery?
A8: Yes, with its wide frequency response and precise measurement range, it is suitable for monitoring vibration in turbines, compressors, motors, and similar machinery.
