Bently Nevada 21504-000-032-05-02 Standard Mount Proximity Probe

FAQ

Q1: What is Bently Nevada 21504-000-032-05-02?

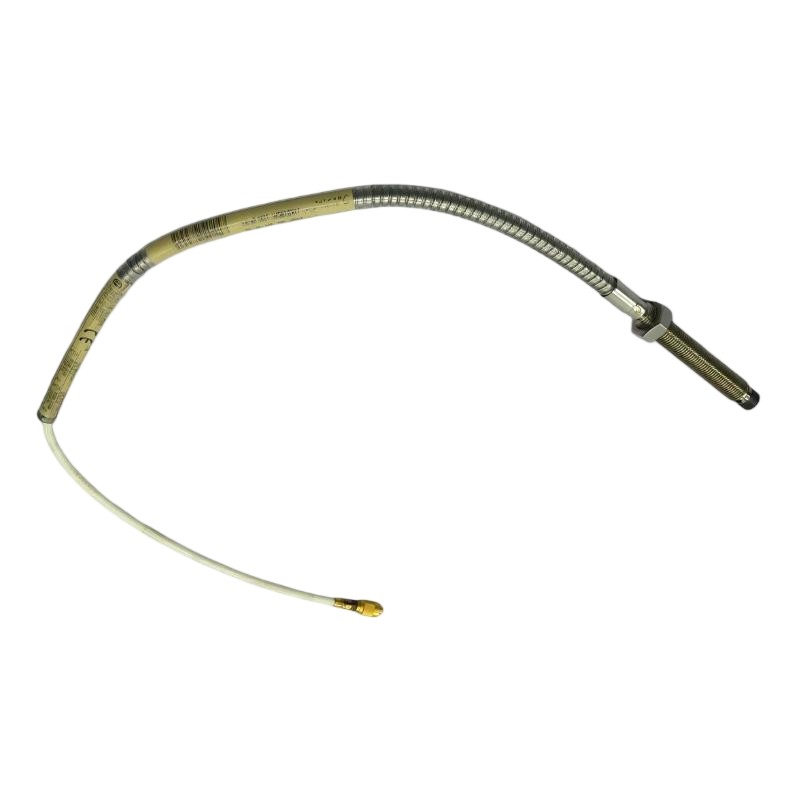

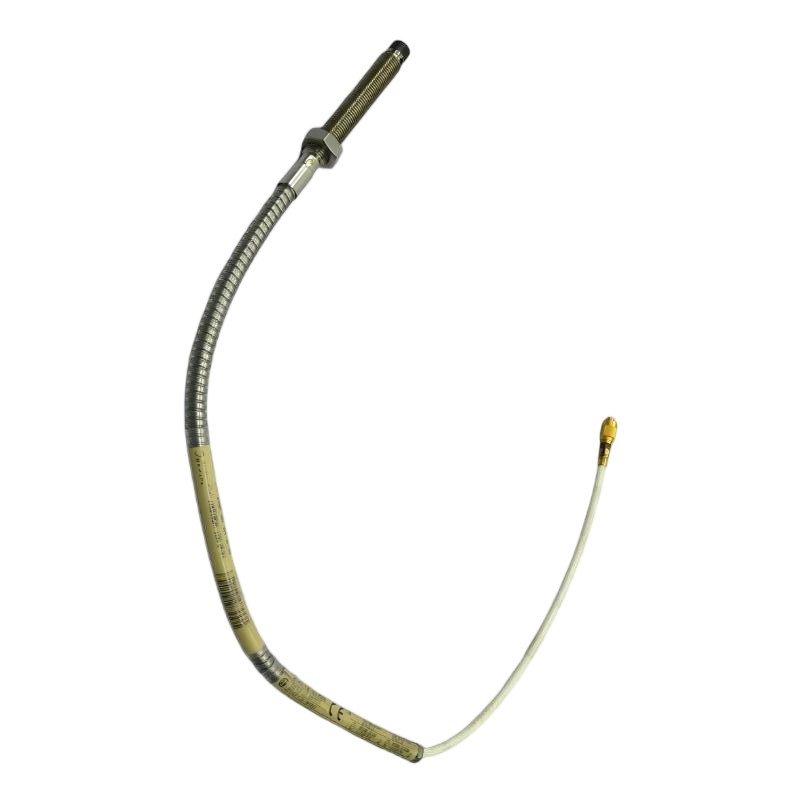

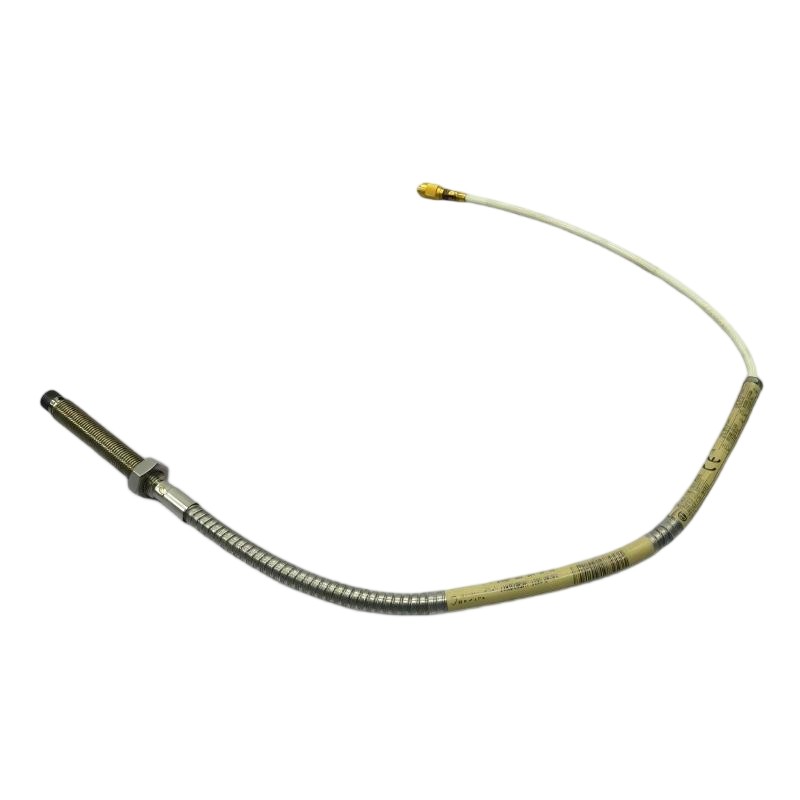

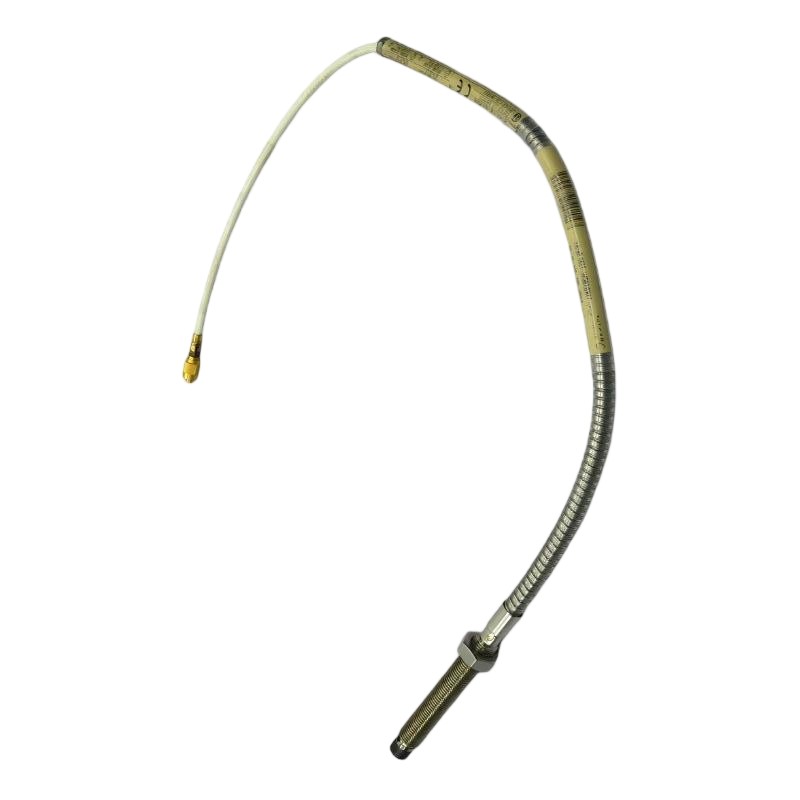

A: It is an 8 mm standard-mount proximity probe from the Bently Nevada 7200 Proximity Transducer System, designed for non-contact measurement of rotating machinery vibration and shaft position.

Q2: What is the probe diameter?
A: The probe has an 8 mm diameter and is designed for standard-mount installation.

Q3: What is the thread specification of 21504-000-032-05-02?
A: The probe uses a 3/8-24 UNF thread. The published installation information recommends a mounting hole of approximately 14 mm in diameter.

Q4: What is the measurement range of this probe?
A: The specified linear range is approximately 0–80 mils (0–2 mm). Its nominal sensitivity is 200 mV/mil ±5%.

Q5: What is the operating temperature range?
A: The specified operating range is approximately -35°C to +177°C (-31°F to +350°F).

Q6: What cable can be used with the 21504-000-032-05-02?
A: The reference specifications identify RG-62/U or equivalent cable, with a maximum recommended cable length of approximately 305 m (1,000 ft).

Q7: What are the dimensions and weight of 21504-000-032-05-02?
A: The probe is approximately 8 mm in diameter with a 32 mm case length. A supplier lists the product weight at approximately 0.45 kg, although this may include the complete packaged assembly.

Q8: What is 21504-000-032-05-02 commonly used for?
A: It is used for non-contact vibration and displacement monitoring of rotating machinery, particularly shaft radial vibration and position measurements in industrial equipment. The 7200 series is commonly used in machinery-monitoring applications.
