Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |

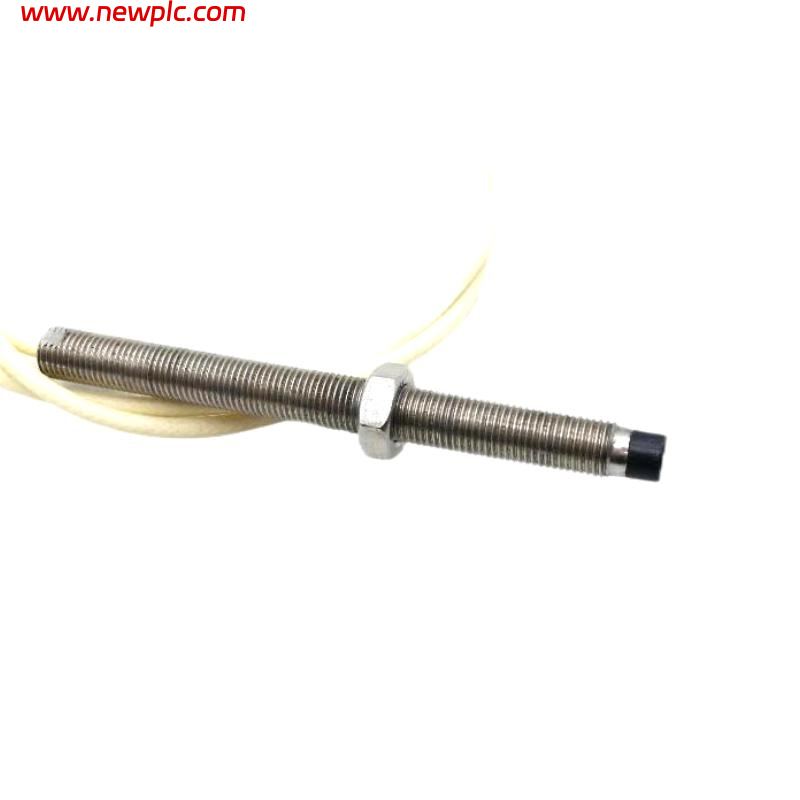

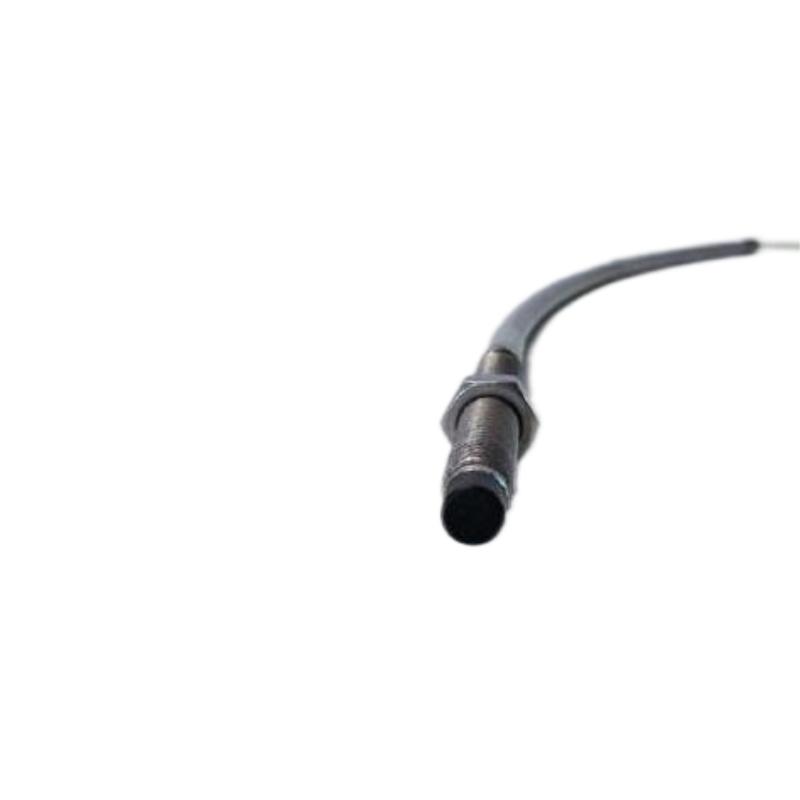

| Model | 21505-00-44-10-02 |
| Product Type | Proximity Probe |
| Series | 7200 |
| Probe Diameter | 8 mm |
| Mounting Thread | 3/8-24 UNF |
| Case Length | 4.4 in (111.8 mm) |
| Unthreaded Length | 0 in |
| Cable Length | 1.0 m (39 in) |
| Cable Armor | Stainless-steel armored |

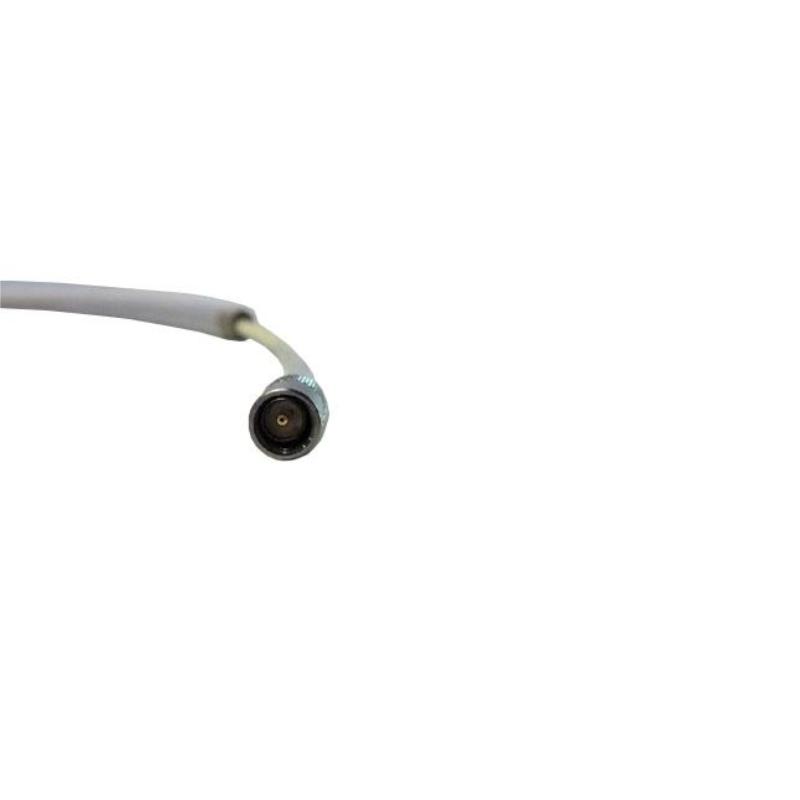

| Connector | Miniature male coaxial connector |
| Scale Factor | 200 mV/mil ±4% |
| Calibrated Range | 80 mils (2.0 mm) |
| Frequency Response | 0–10 kHz |
| Supply Voltage | -17.5 to -26 VDC |
| Maximum Current Consumption | 12 mA |
| Output Signal | -2 to -18 VDC |
| Probe Temperature Range | -34 to +177 °C |
| Application | Shaft vibration / displacement measurement |
| Dimensions (L × W × H) | Approx. 1,000 × 8 × 8 mm |
| Approx. Net Weight | 0.59 kg |
| Approx. Shipping Weight | 2 kg |
FAQ
FAQ
Q1: What is Bently Nevada 21505-00-44-10-02?
A: It is an 8 mm Bently Nevada 7200 Series proximity probe used for non-contact shaft vibration and displacement measurement.
Q2: What is the probe diameter?
A: The probe diameter is 8 mm.
Q3: What is the mounting thread?
A: It uses a 3/8-24 UNF mounting thread.
Q4: What is the cable length?
A: The cable length is 1.0 m (39 inches) and uses stainless-steel armor.
Q5: What type of connector does it use?
A: It uses a miniature male coaxial connector.
Q6: What is the case length?
A: The case length is 4.4 inches (approximately 111.8 mm).
Q7: What are the dimensions and weight?
A: The overall probe/cable assembly is approximately 1,000 × 8 × 8 mm (L × W × H), with a reference weight of approximately 0.59 kg. A supplier lists approximately 2 kg shipping weight.
Q8: What is it used for?
A: It is used with a compatible Bently Nevada 7200 proximity transducer system for non-contact measurement of shaft vibration, radial displacement and shaft position.
