Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 22810-00-04-50-02 |

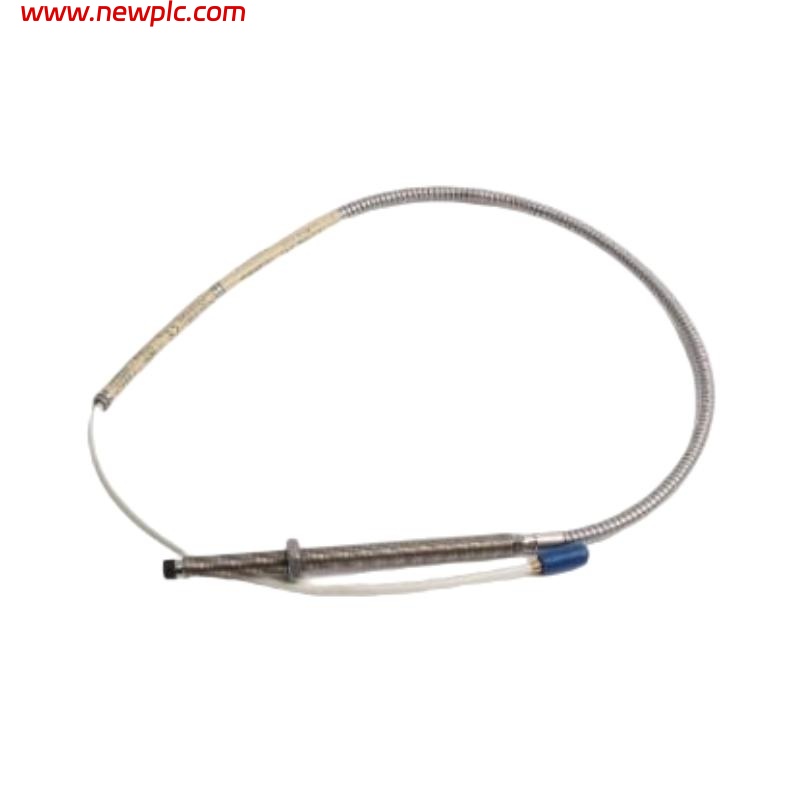

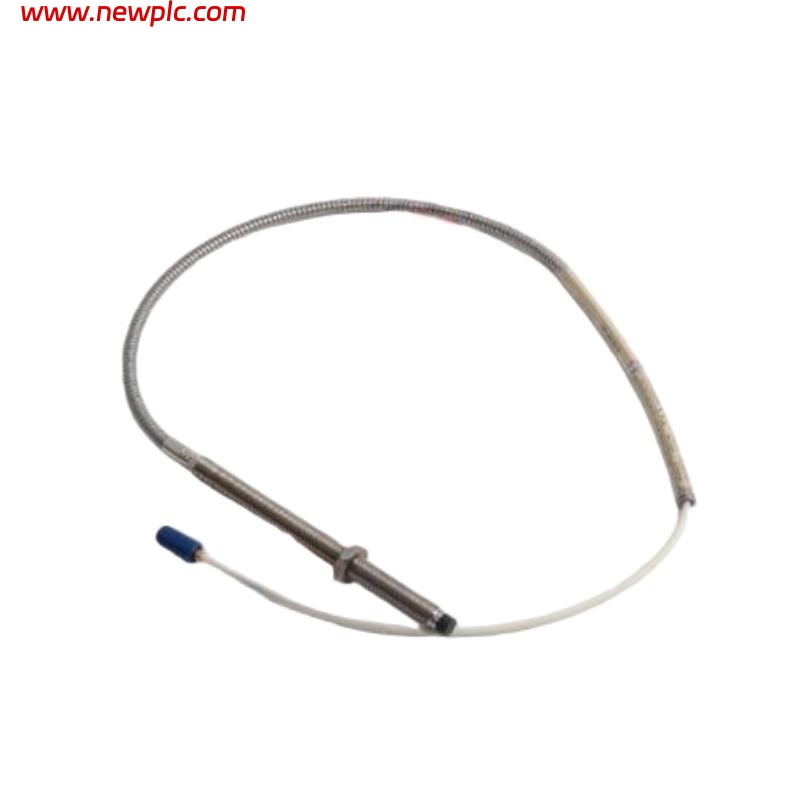

| Type | 7200 Series 8 mm Standard Mount Probe |
| Probe Diameter | 8 mm |
| Probe Type | Eddy Current Displacement Probe |
| Measurement Range | 2 mm (80 mils) |
| Linear Range | ±1.0 mm (±40 mils) |
| Linearity Error | ≤ ±1% full scale |
| Material | Stainless steel housing with PTFE insulation |
| Frequency Response | DC ~ 10 kHz |
| Sensitivity | 7.87 mV/μm (200 mV/mil) |
| Nominal Gap | 2.0 mm |
| Mounting Thread | M10 × 1 |
| Cable Type | Low-noise coaxial cable |
| Connection Type | Microdot connector |
| Operating Temperature | -35 ~ +180 °C |
| Storage Temperature | -55 ~ +200 °C |
| Protection Rating | IP67 |
| Dimensions | Diameter：8 mm |
| Weight | 0.59 kg |
FAQ
FAQ
QA1: What is the main function of the 22810-00-04-50-02 probe?
It is used for non-contact measurement of shaft vibration or displacement in rotating machinery monitoring systems.
QA2: Which series does this probe belong to?
It belongs to the Bently Nevada 7200 Series standard 8 mm probes.
QA3: What is the measurement range?
The measurement range is 2 mm (80 mils).
QA4: What is the recommended mounting thread?
It uses an M10 × 1 standard mounting thread.
QA5: What is the output sensitivity?
The sensitivity is 7.87 mV/μm (200 mV/mil).
QA6: What is the operating temperature range?
It operates reliably between -35°C and +180°C.
QA7: What is the protection rating?
The protection rating is IP67, suitable for humid and oily environments.
QA8: Is it compatible with the 7200 Series monitoring system?
Yes, it is fully compatible with Bently Nevada 7200 Series monitors.
