Technical Specifications
| Item | Specification |
|---|---|
| Product Model | Bently Nevada 24765-02-00 |

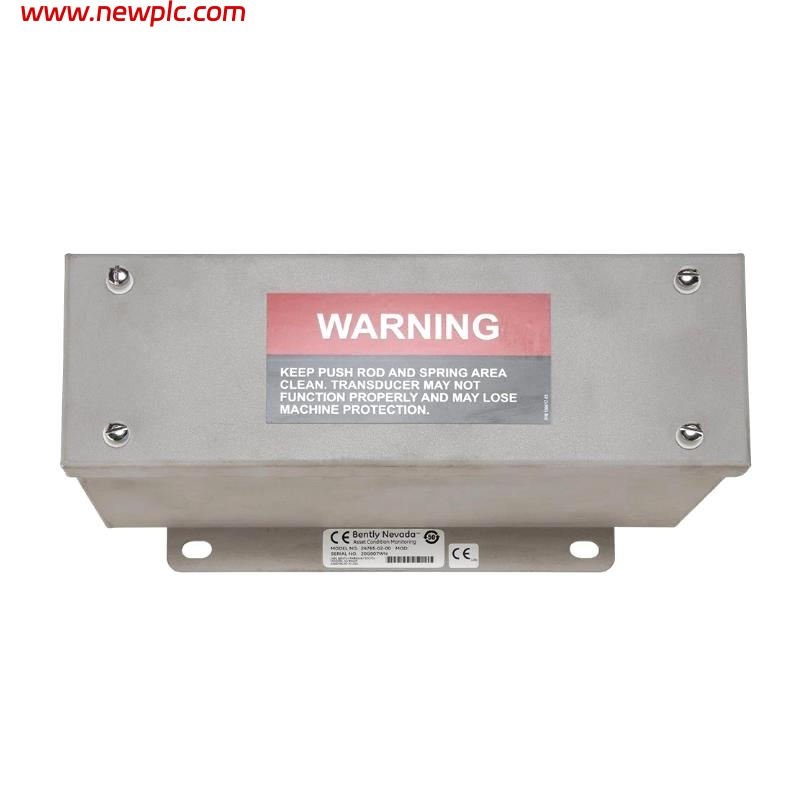

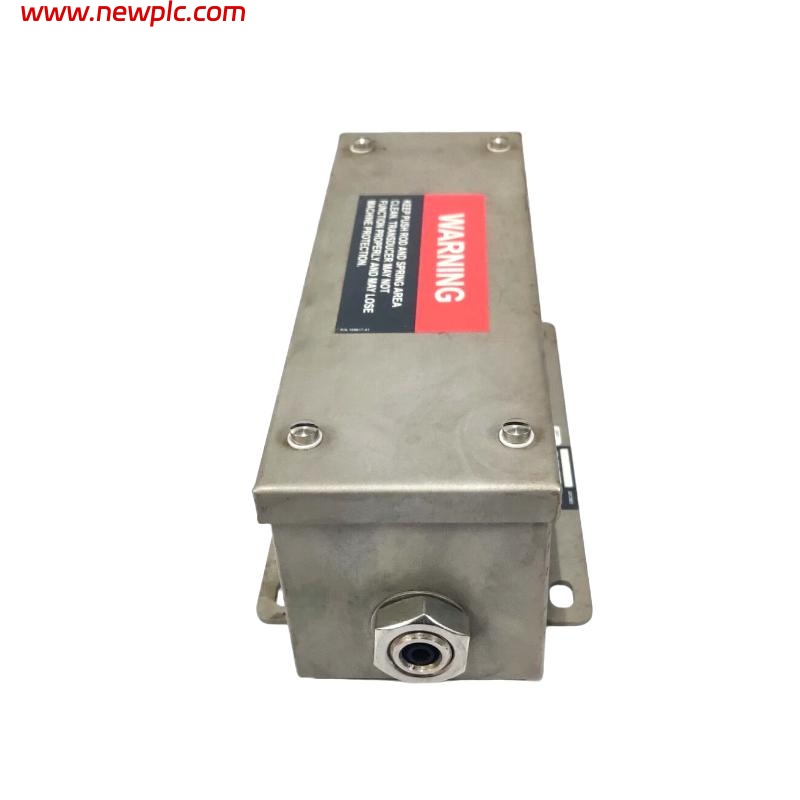

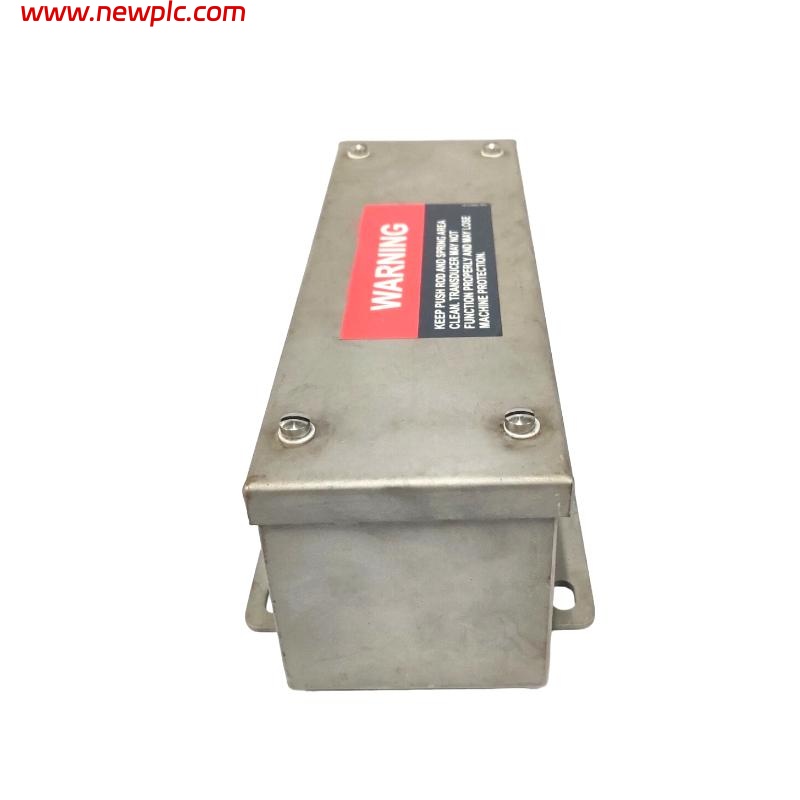

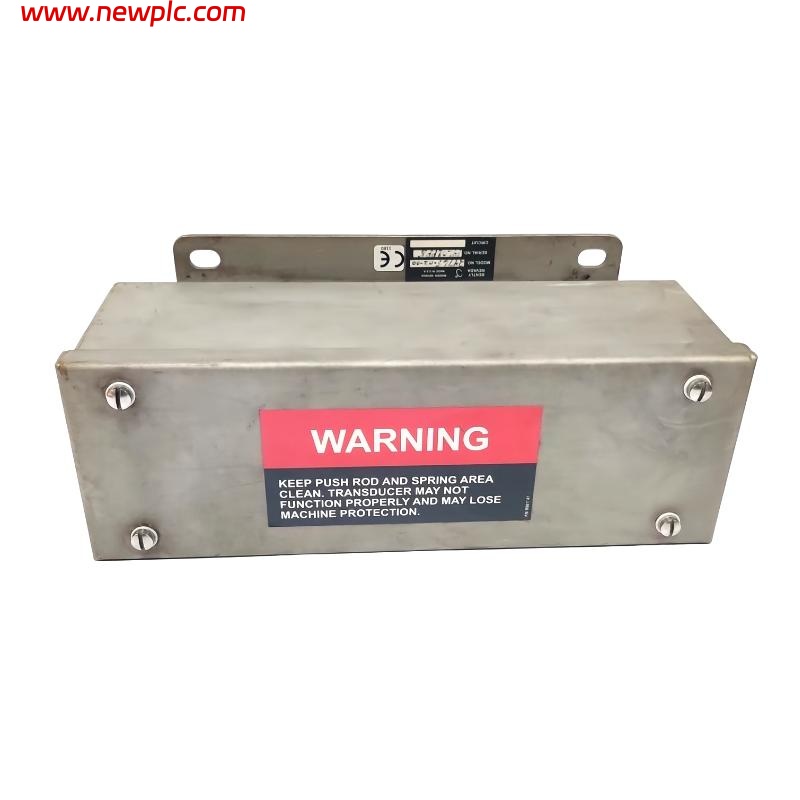

| Type | Housing Expansion Sensor Assembly |
| Function | Measures the thermal expansion or structural displacement of large rotating machine casings |
| Sensing Principle | Eddy-current displacement measurement |
| Measurement Range | ±50.8 mm (±2.00 in) |
| Scale Factor | 0.404 V/mm (~10.25 V/inch) |
| Linearity | ±0.5% full scale |
| –3 dB Frequency | 15 Hz |
| Operating Temperature | -18°C to +71°C (0 °F to +160 °F) |
| Storage Temperature | -54°C to +93°C (-65 °F to +200 °F) |
| Dimensions | 88.9 x 117 x 241 mm |
| Weight | 2.3 kg |
| Mounting Type | Threaded mount with ½-inch conduit fitting |
| Protection Class | IP20 |
FAQ
FAQ
Q1: What is the main function of the Bently Nevada 24765-02-00?
A1: It is designed to measure thermal expansion or structural displacement of machine casings in large rotating equipment, aiding condition monitoring.
Q2: Which systems is it suitable for?
A2: It is suitable for casing expansion monitoring systems in large rotating machinery, such as those based on Bently Nevada platforms.
Q3: What is the measurement range?
A3: ±50.8 mm (±2.00 in).
Q4: What is the scale factor?
A4: 0.404 V/mm (~10.25 V/inch).
Q5: What is the operating temperature range?
A5: -18°C to +71°C (0 °F to +160 °F).
Q6: What are the product dimensions and weight?
A6: Dimensions are 88.9 x 117 x 241 mm; weight is 2.3 kg.
Q7: How is this sensor mounted?
A7: It uses a threaded mount and includes a ½-inch conduit fitting for wiring.
Q8: Is it suitable for harsh or high-temperature environments?
A8: Although it supports a broad temperature range, the protection rating is IP20, so appropriate protective measures are recommended for harsh environments.
