Technical Specifications
| Item | Specification |
|---|---|
| Product Model | Bently Nevada 24765-02-01 |

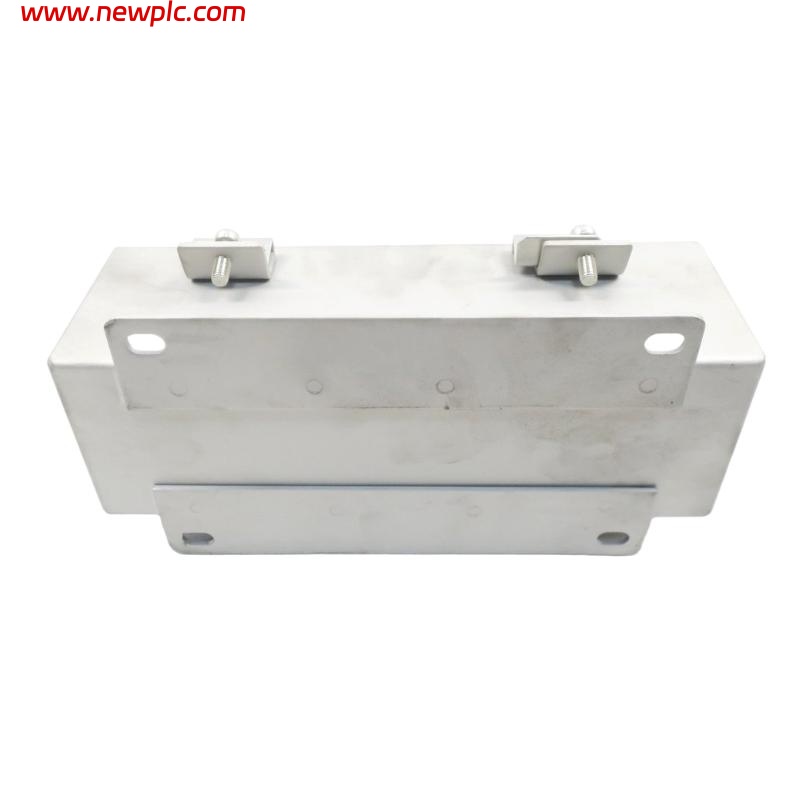

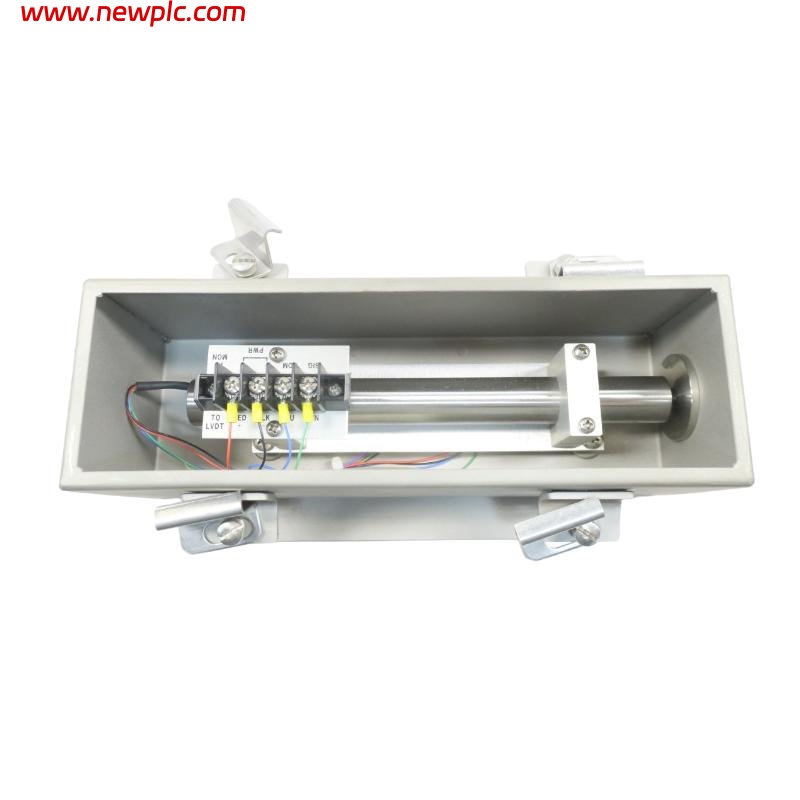

| Type | Housing Expansion Sensor Assembly |
| Function | Measures thermal expansion or structural displacement of large rotating equipment casings |
| Sensing Principle | Linear Variable Differential Transformer (LVDT) |
| Measurement Range | ±50.8 mm (±2.00 in) |
| Scale Factor | 0.404 V/mm (~10.25 V/in) |
| –3 dB Frequency | 15 Hz |
| Operating Temperature | –18°C to +71°C |
| Storage Temperature | –54°C to +93°C |
| Dimensions | 88.9 x 117 x 241 mm |
| Weight | 2.3 kg |
FAQ
FAQ
Q1: What is the primary function of the Bently Nevada 24765-02-01?
A1: It is used to monitor the thermal expansion or displacement of equipment casings, providing early warning of casing foot slip or movement.
Q2: With which systems is this model compatible?
A2: It is compatible with the Bently Nevada 3500 series monitoring system and other casing-expansion monitoring systems.
Q3: What is its measurement range?
A3: The measurement range is ±50.8 mm (±2.00 in).
Q4: What is the scale factor (output ratio)?
A4: The scale factor is 0.404 V/mm (~10.25 V/in).
Q5: What are the product dimensions and weight?
A5: Dimensions are 88.9 x 117 x 241 mm; weight is 2.3 kg.
Q6: What is the operating temperature range?
A6: –18°C to +71°C.
Q7: What is the mounting method?
A7: Threaded mount with ½-inch conduit fitting, for installation on the machine foundation or casing structure.
Q8: What should be considered if the installation environment is harsh or space is constrained?
A8: While the measurement range is large, the protection class is IP20 — ensure proper environmental protection or choose a higher-rated enclosure if required.
