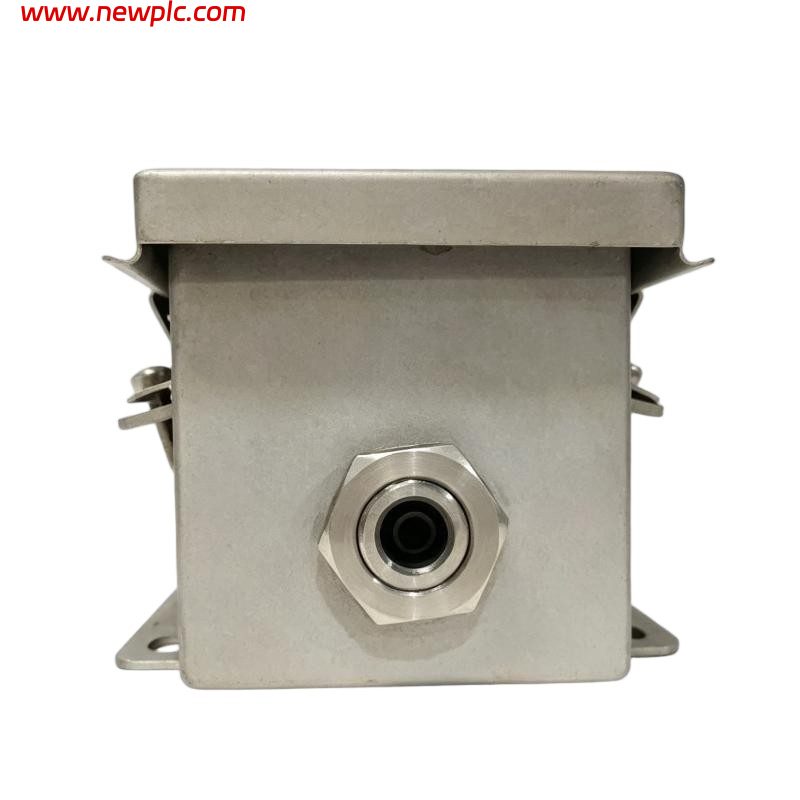

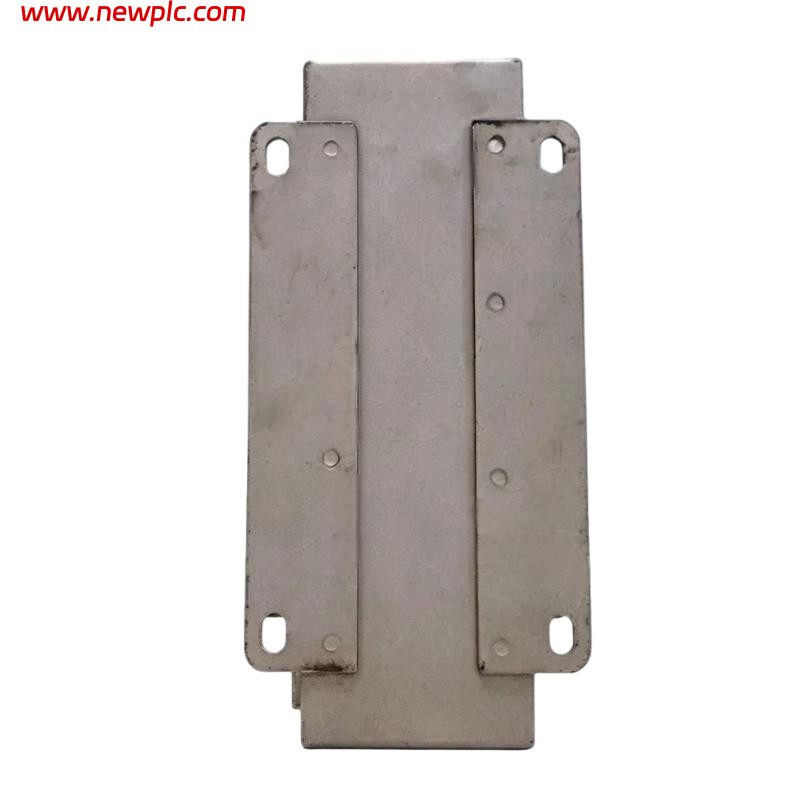

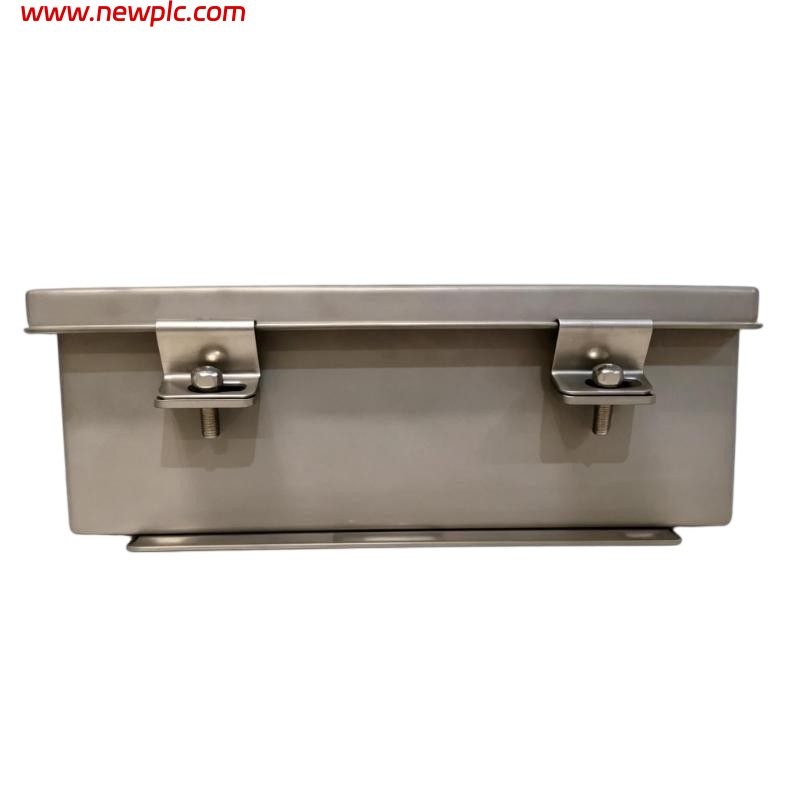

Bently Nevada 24765-03-01 Case Expansion Transducer Assembly

FAQ

Q1: What is Bently Nevada 24765-03-01?
A: It is a Case Expansion Transducer Assembly used to monitor the thermal expansion and contraction of rotating-machine casings.

Q2: What measurement principle does it use?
A: It uses an LVDT (Linear Variable Differential Transformer) to measure linear mechanical displacement.

Q3: What is the measurement range?
A: The “-03” configuration provides a 101.6 mm (4.0 in) linear range.

Q4: Does 24765-03-01 have spring return?
A: Yes. The final “-01” indicates the spring-return configuration.

Q5: What does the transducer measure?
A: It measures the relative thermal expansion or contraction of a machine casing, typically relative to the machine foundation.

Q6: Where is 24765-03-01 commonly used?
A: It is typically used on steam turbines, gas turbines, compressors and other large rotating machinery where casing thermal growth must be monitored.

Q7: What are the dimensions and weight of 24765-03-01?
A: The exact overall dimensions depend on the installation configuration. A supplier lists the shipping weight at approximately 4 kg.

Q8: What is the difference between 24765-03-01 and other 24765 models?
A: The first suffix determines the linear measurement range: 01 = 25.4 mm (1 in), 02 = 50.8 mm (2 in), and 03 = 101.6 mm (4 in). The final suffix determines the spring configuration: 00 = without spring return, 01 = with spring return.

24765-03-01 Bently Nevada
