Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 3300 XL 8 mm |
| Probe Cable Length | 0.5 meter |
| Operating Temperature | -51°C to +177°C (-60°F to +351°F) |
| Storage Temperature | -51°C to +177°C (-60°F to +351°F) |
| Protection Ratings | Type 4X (CSA), IP66 (SC115582), EN50014 Electrostatic Dissipation Certified |
| Housing Material | Glass-reinforced PPS thermoplastic with conductive fibers |
| Sleeve & Retaining Chain | AISI 304 stainless steel |
| Exterior Screws & Outer Sleeve | AISI 303 stainless steel |
| O-Ring Material | Neoprene (sleeve), Viton (internal to probe case) |
| Recommended Retaining Torque | 29.4 N·m (260 in·lb) |
| Housing Strength (Load Bearing) | Withstands 912 N (205 lb) at 38 mm from unsupported end |
| Impact Resistance | 4 J @ -39°C and 115°C (BASEEFA); 7 J @ room temp (CSA) |
| Environmental Compliance | NEMA 4X, IP66 |
| Dimensions (C+D Option) | 66.0 mm total sleeve length |
| Weight | 1.2 kg (2.6 lb) |
FAQ
FAQ

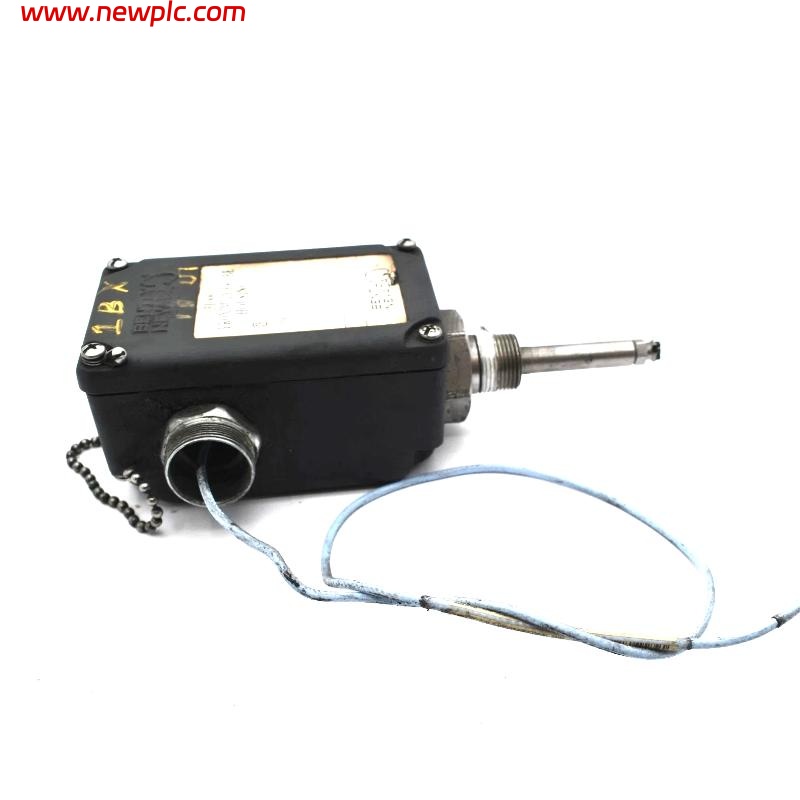

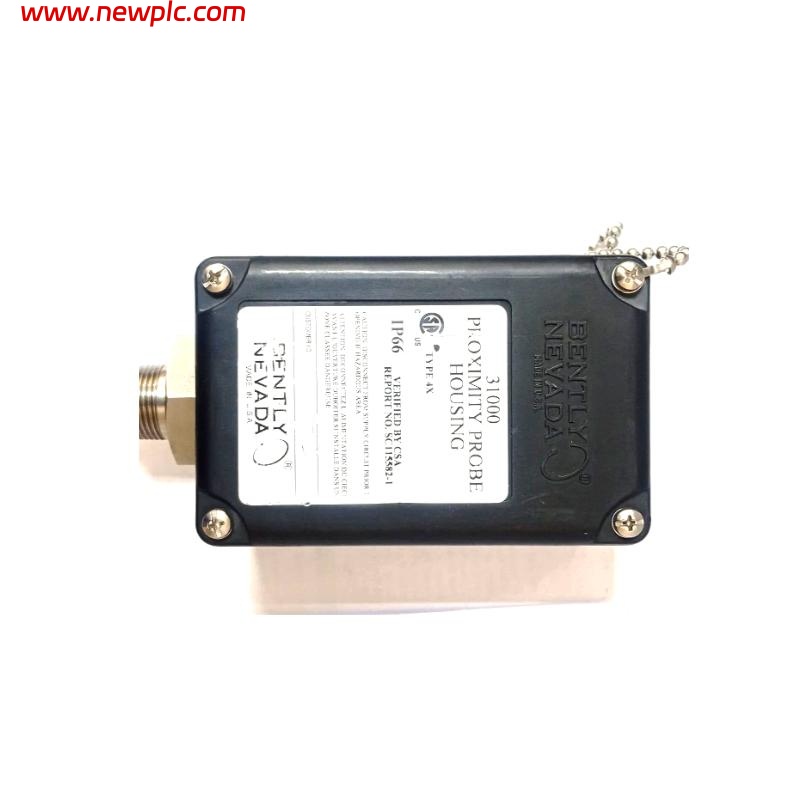

Q1: What is the primary application of the Bently Nevada 31000-16-05-00-066-03-02?
A1: It is used to mount radially positioned proximity probes through the machine case for vibration or Keyphasor measurements.
Q2: Is this housing explosion-proof?
A2: No, this model is not explosion-proof. For explosion-proof applications, use CA21000 or CA24701 housings.
Q3: What type of probes are supported by this housing?
A3: It supports the 3300 XL 8 mm proximity probe series.
Q4: Can it be used in intrinsically safe environments?
A4: Yes, when used with a certified transducer system and intrinsic safety barriers, it is suitable for hazardous areas.
Q5: Is the housing resistant to hot steam or water?
A5: Brief exposure to 95°C water or steam is acceptable. Prolonged exposure may reduce the housing strength.
Q6: What is the ingress protection rating?
A6: The housing is rated IP66 and complies with NEMA 4X standards.
Q7: Is the probe accessible for maintenance after installation?
A7: Yes, the housing design allows external access for probe gap adjustment or replacement without disassembly.
Q8: What type of machinery is this housing recommended for?
A8: It is recommended for use in rotating machinery where the machine casing is affixed to the bearing to ensure accurate relative vibration detection.
