Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Product Model | 323174-01 |

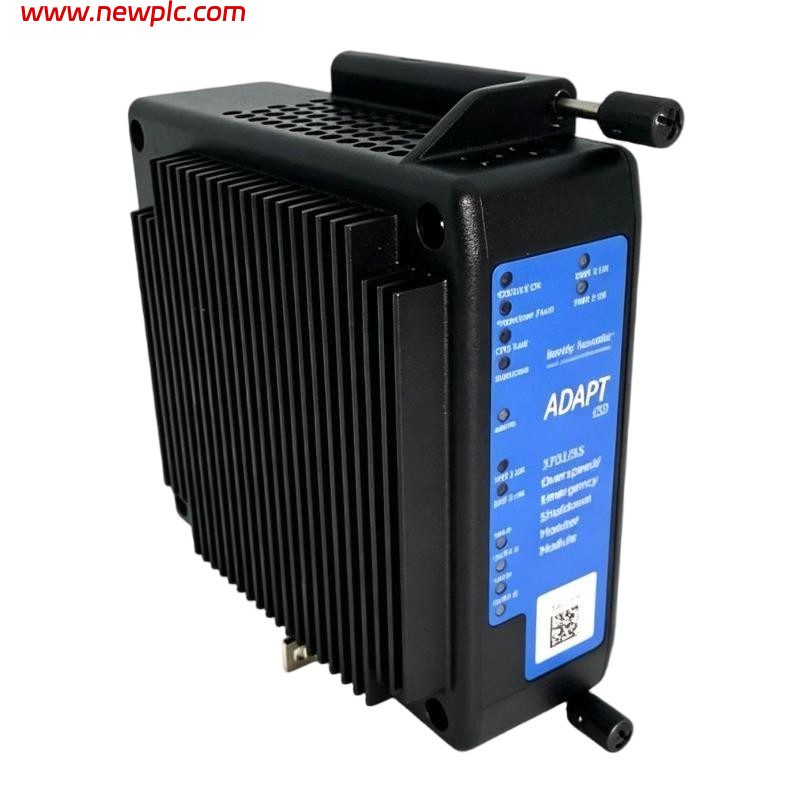

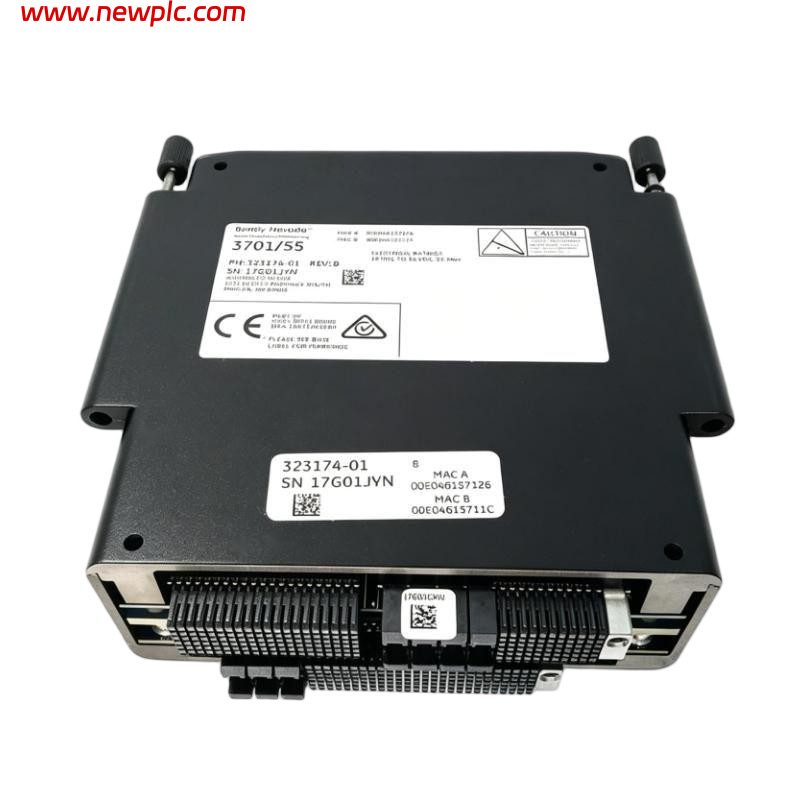

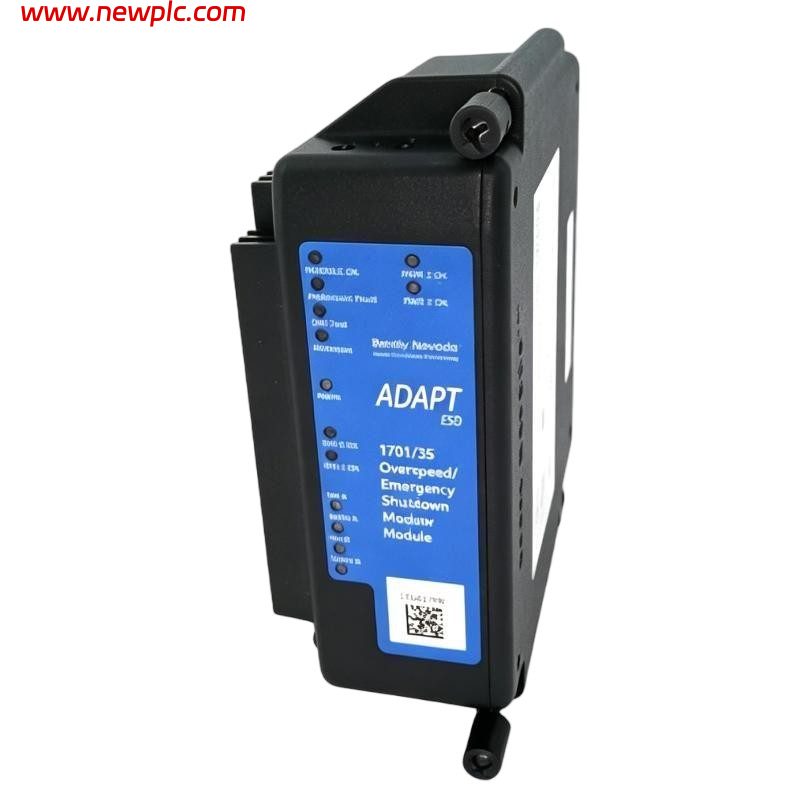

| Product Type | ADAPT™ ESD CPU Module |
| Series | 3701/55 ADAPT™ Emergency Shutdown System |
| Function | Provides emergency shutdown (ESD) control, overspeed protection, and safety logic processing for critical rotating machinery |
| Safety Architecture | Triple Modular Redundancy (TMR) |
| Speed Inputs | 2 per CPU module (6 total in a complete TMR system) |
| Discrete Inputs | Processes up to 32 discrete inputs |
| Analog Inputs | Processes up to 12 analog inputs |
| Communication | Dual redundant 10/100Base-T Ethernet |
| Logic Capacity | Up to 500 configurable logic steps |
| Logic Processing Time | 2 ms (nominal) |
| Relay Toggle Time | 8 ms (nominal) |
| Power Supply | 18–36 VDC (24 VDC nominal) |
| Operating Temperature | -30°C to +65°C |
| Relative Humidity | 0–95% RH, non-condensing |
| Mounting Type | ADAPT™ 3701/55 Rack Mount |
| Application | Steam turbines, gas turbines, hydro turbines, compressors, expanders, and other critical rotating machinery |
| Dimensions | Approx. 254 × 305 × 180 mm |
| Weight | Approx. 1.20 kg |
| Condition | New and original |
| Warranty | 12 months |
FAQ
FAQ
Q1: What is the Bently Nevada 323174-01 used for?
The Bently Nevada 323174-01 is the CPU module of the ADAPT™ 3701/55 Emergency Shutdown System. It performs safety logic processing, overspeed detection, and emergency shutdown control for critical rotating equipment.
Q2: Which systems are compatible with the 323174-01?
The module is designed exclusively for the Bently Nevada 3701/55 ADAPT™ ESD System and operates as one of three CPU modules in the Triple Modular Redundancy (TMR) architecture.
Q3: What are the main features of the 323174-01?
It features redundant Ethernet communication, high-speed logic execution, overspeed monitoring, configurable trip logic with up to 500 logic steps, and SIL-certified safety architecture for machinery protection.
Q4: What are the dimensions and weight of the Bently Nevada 323174-01?
The CPU module has approximate dimensions of 254 × 305 × 180 mm and weighs approximately 1.20 kg.
Q5: What types of machinery can the 323174-01 protect?
It is widely used to protect steam turbines, gas turbines, hydro turbines, centrifugal compressors, expanders, and other high-speed rotating equipment where rapid shutdown is essential.
Q6: Does the 323174-01 support redundant operation?
Yes. The module is designed to operate within a Triple Modular Redundancy (TMR) system, providing high availability and minimizing the risk of false trips or system failures.
Q7: What should be checked before installing the 323174-01?
Before installation, verify the part number, ADAPT™ rack configuration, firmware version, power supply, Ethernet connections, and safety logic configuration to ensure compatibility with the existing ESD system.
Q8: What are the advantages of the Bently Nevada 323174-01?
The module delivers fast emergency response, advanced overspeed protection, redundant communication, high system reliability, and dependable safety performance for mission-critical industrial machinery.
