Technical Specifications
| Item | Specification |
|---|---|
| Model | 3300/16-12-01-03-000 |

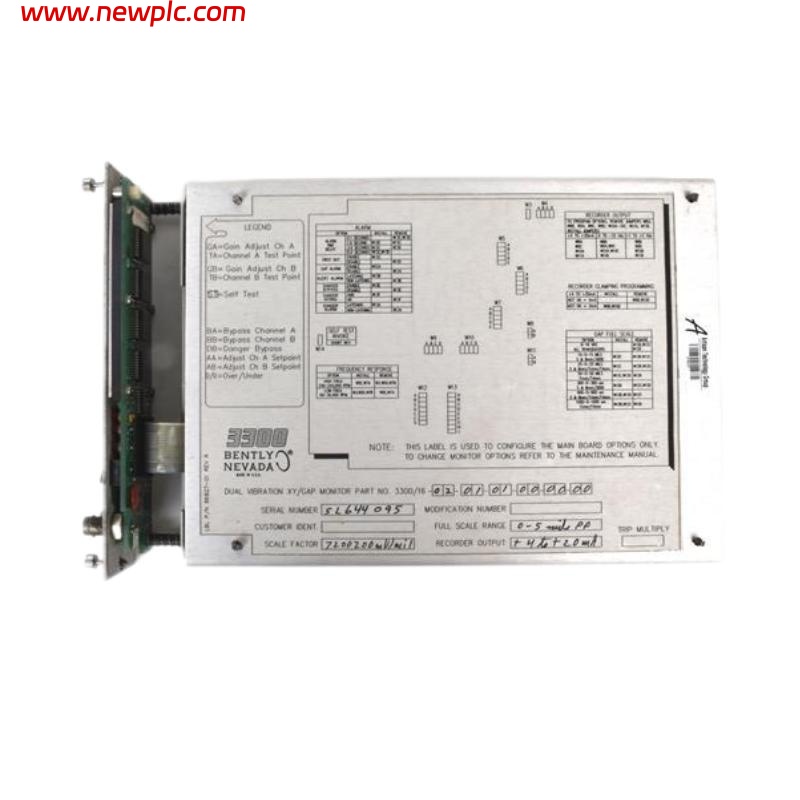

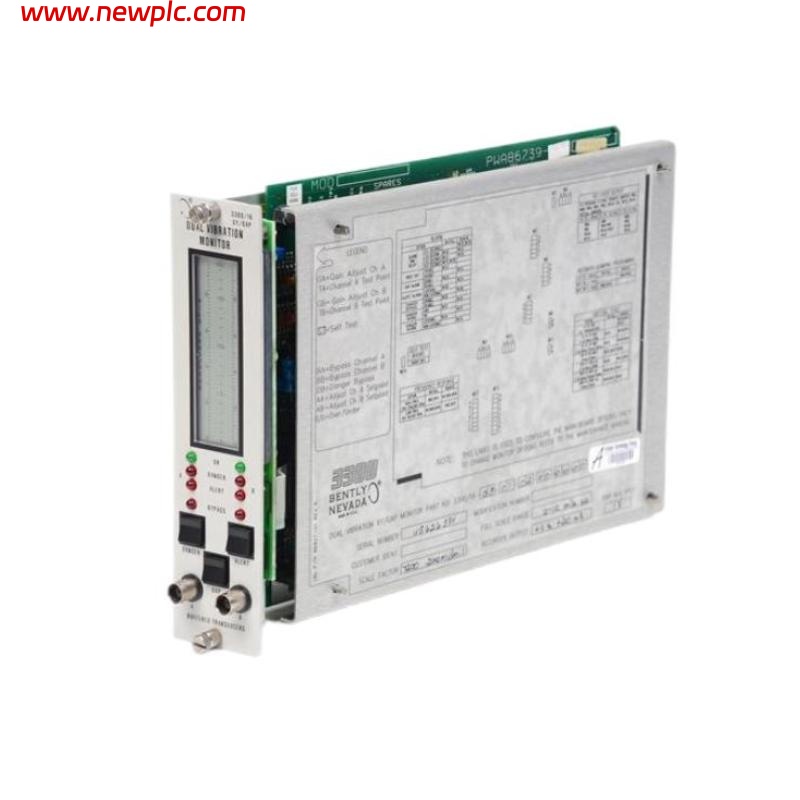

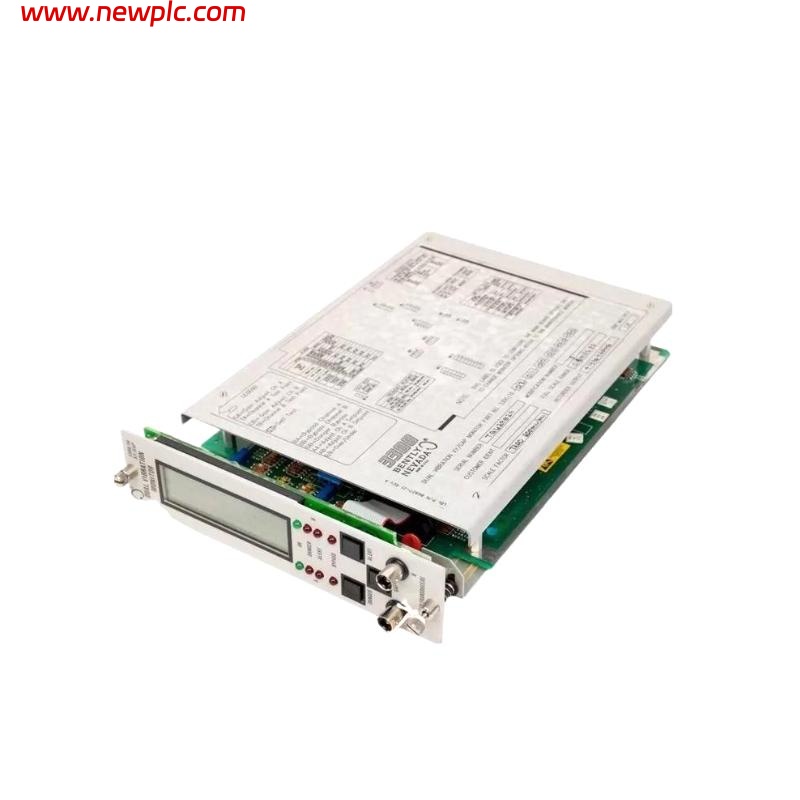

| Type | Bently Nevada 3300/16 4-Channel Vibration Monitor |
| Function | Monitors shaft vibration, radial displacement, and position in rotating machinery |
| Measurement Principle | Eddy-current proximity probe input |
| Channels | 4 independent monitoring channels |
| Input Signal | Compatible with 3300 series proximity probes and proximitor systems |
| Output Signal | 4–20 mA proportional to vibration/displacement, buffered output for diagnostics |
| Frequency Response | DC to 10 kHz |
| Power Supply | ±15 VDC (provided via rack power supply) |
| Alarm Functions | Alert and Danger setpoints with relay outputs |
| Indicators | Channel OK, Alert, and Danger LEDs per channel |
| Housing Material | Aluminum alloy for rack mounting |
| Mounting Method | Installed in 3300 system rack (19-inch standard) |
| Operating Temperature | -35°C to +65°C |
| Protection Rating | IP40 (rack-mounted) |
| Applications | Turbines, compressors, pumps, and other rotating equipment vibration monitoring |
| Dimensions | Height 6U, width 1 rack slot (approx. 25 mm) |
| Weight | ~0.55 kg |
FAQ
FAQ
Q1: What is the function of the Bently Nevada 3300/16-12-01-03-000?
It is a 4-channel vibration monitoring module that measures and analyzes shaft vibration and displacement signals from proximity probes.
Q2: How many measurement channels does this module support?
It provides four independent monitoring channels, each capable of handling separate probe inputs.
Q3: What type of sensors can be connected to it?
It is designed to work with Bently Nevada 3300 series proximity probes and their corresponding proximitor systems.
Q4: What kind of output signals does it generate?
It provides both a 4–20 mA current output for control systems and a buffered dynamic signal output for diagnostics and analysis.
Q5: Does this module include alarm capabilities?
Yes, it includes Alert and Danger setpoints per channel with relay outputs for system protection.
Q6: What are the typical applications for this monitor?
It is used in machinery protection and condition monitoring for turbines, compressors, pumps, and large rotating machines.
Q7: How is it installed within the system?
It is mounted in a standard 3300 system rack, occupying one slot with a 6U height configuration.
Q8: What are the dimensions and weight of the module?
The module is approximately 6U in height, 25 mm in width, and weighs about 0.55 kg.
