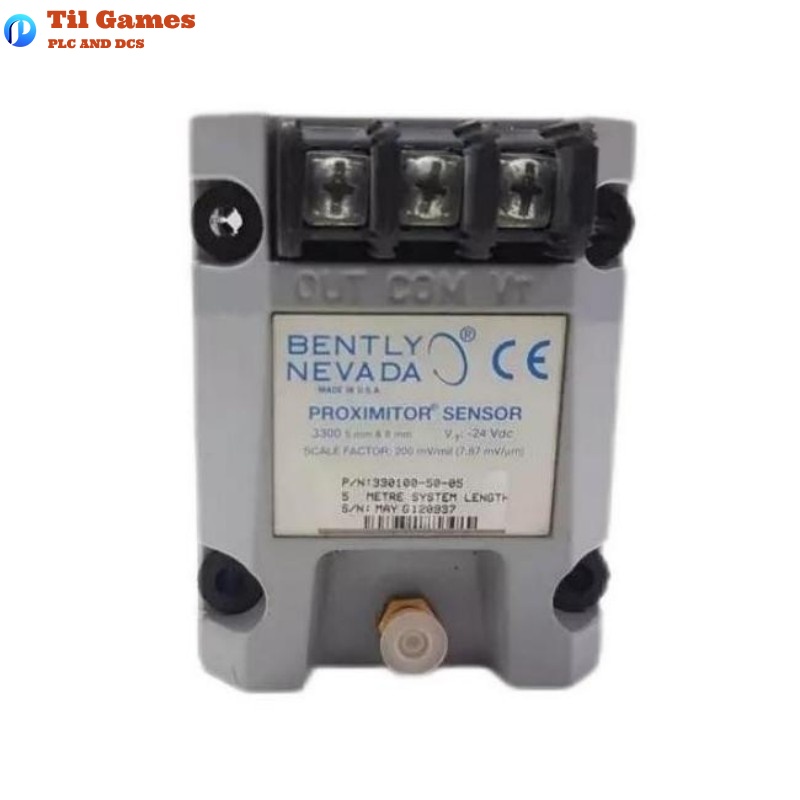

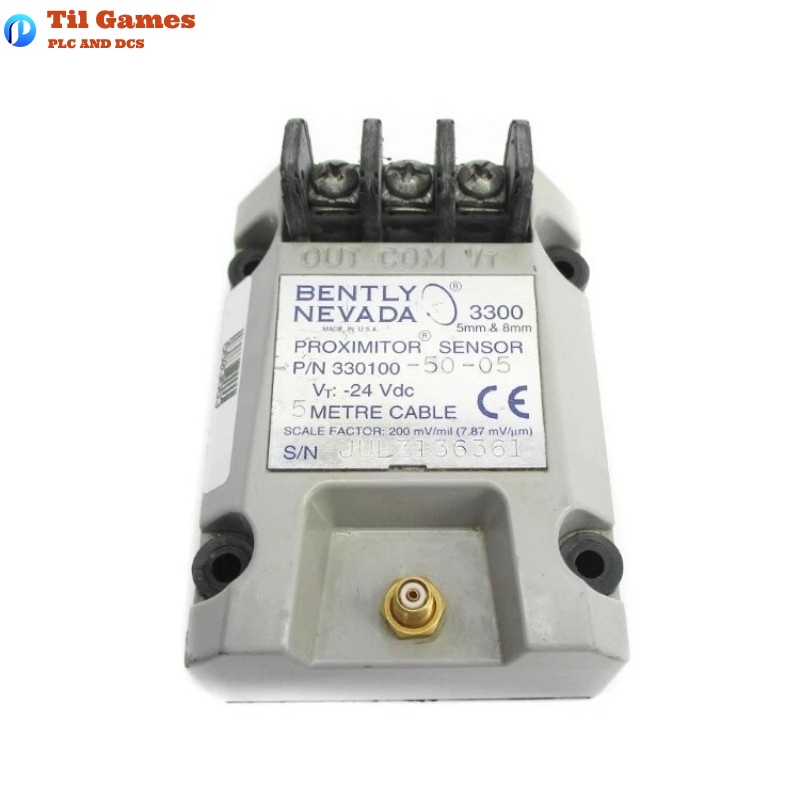

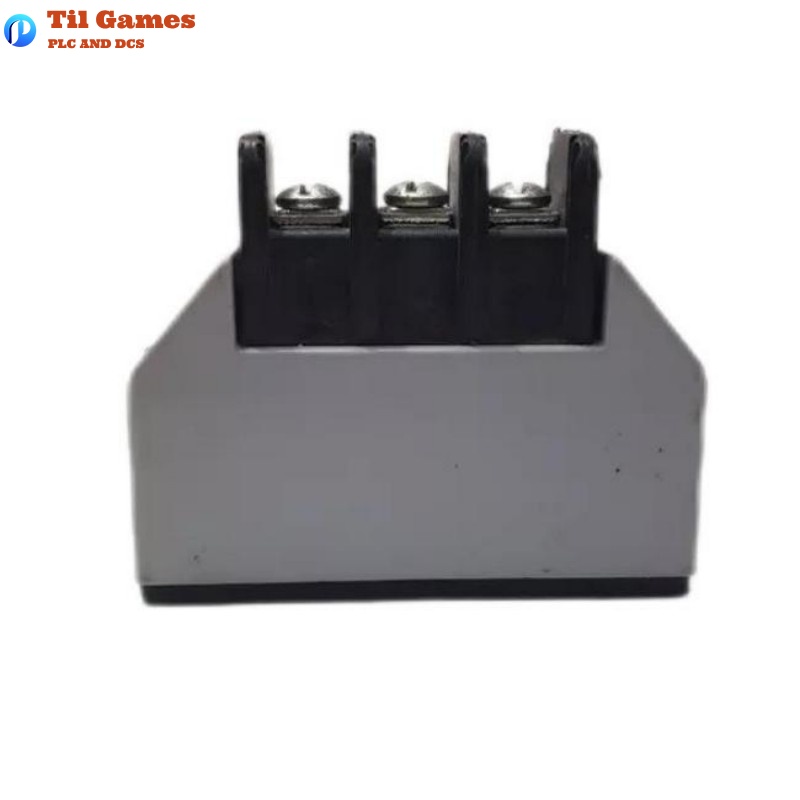

Bently Nevada 330100-50-05 Proximitor Sensor Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330100-50-05 |
| Type | Proximitor® Sensor |
| Total Length | 5.0 meters |
| Weight | Approx. 0.25 kg |
| Power Supply | -17.5 Vdc to -26 Vdc, max 12 mA current consumption |
| Output Resistance | 50 Ω |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Incremental Scale Factor | 7.87 mV/μm (200 mV/mil) ±6.5% typical |
| Temperature Stability | -35°C to +177°C, scale factor deviation within ±10% |
| Frequency Response | 0 to 6.5 kHz, ±3 dB, up to 305 m field wiring |
| Probe Housing Material | AISI 304 Stainless Steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Probe Pressure Seal | Viton® O-ring, not pressure-tested |
| Minimum Target Size | 15.2 mm flat surface |
| Minimum Shaft Diameter | Recommended ≥ 76.2 mm (Min. 50.8 mm) |
| Minimum Cable Bend Radius | 25.4 mm |
| Operating Temperature | -51°C to +100°C (Sensor), -51°C to +177°C (XL Probe) |
| Relative Humidity | 100% condensing (with protected connectors) |
| Certifications | CSA/NRTL/C, BASEEFA, CENELEC, CE Mark |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the operating voltage range of the 330100-50-05 sensor?
A1: It operates from -17.5 Vdc to -26 Vdc. Operating above -23.5 Vdc may reduce the linear range.
Q2: What is the total system length supported?
A2: The system is designed for a total length of 5.0 meters, combining probe and extension cable.
Q3: What is the recommended gap for installation?
A3: A 1.27 mm (50 mils) gap is recommended for optimal linear response.
Q4: What is the minimum shaft diameter for proper operation?
A4: The recommended minimum is 76.2 mm. Smaller diameters can cause signal interference.
Q5: How stable is the sensor over temperature changes?
A5: Within -35°C to +177°C, the scale factor deviation remains within ±10%.
Q6: What certifications does this model carry?
A6: It complies with CE mark, CSA/NRTL/C, BASEEFA, and CENELEC hazardous area approvals.
Q7: What materials are used in the probe construction?
A7: The probe uses AISI 304 stainless steel housing and PPS tip, ensuring durability and chemical resistance.
Q8: Does the system require matched calibration between components?
A8: No individual matching or calibration is required; all parts are fully interchangeable.
