Technical Specifications
| Item | Specification |
|---|---|
| Model | 330101-00-08-05-02-05 |

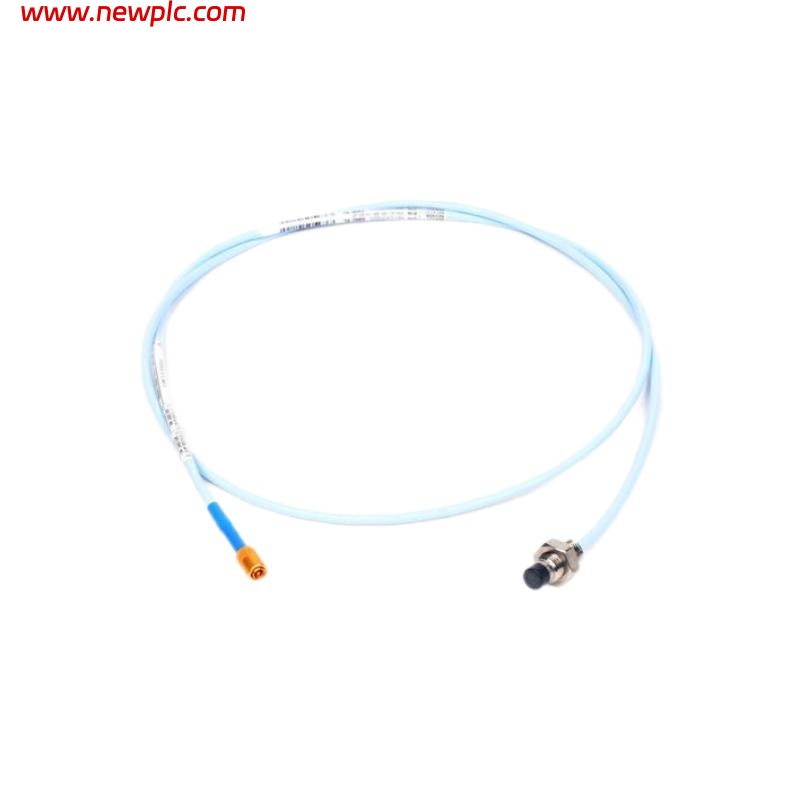

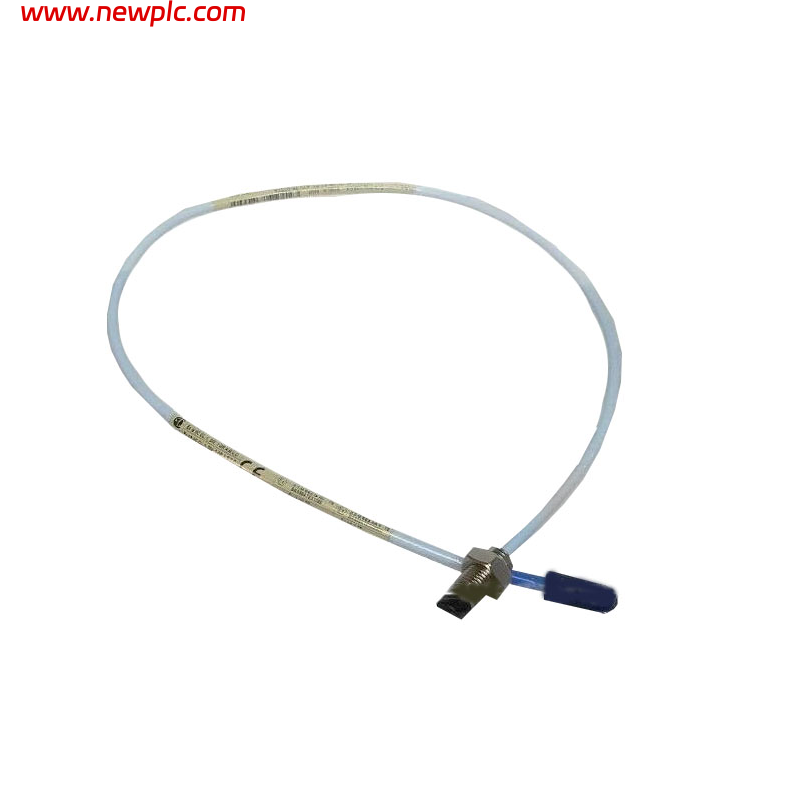

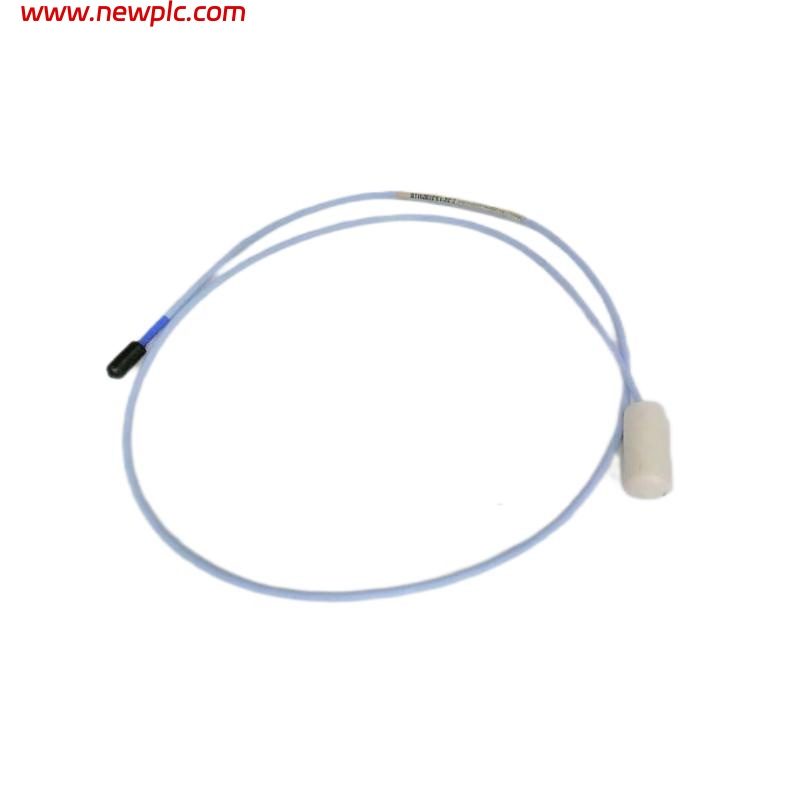

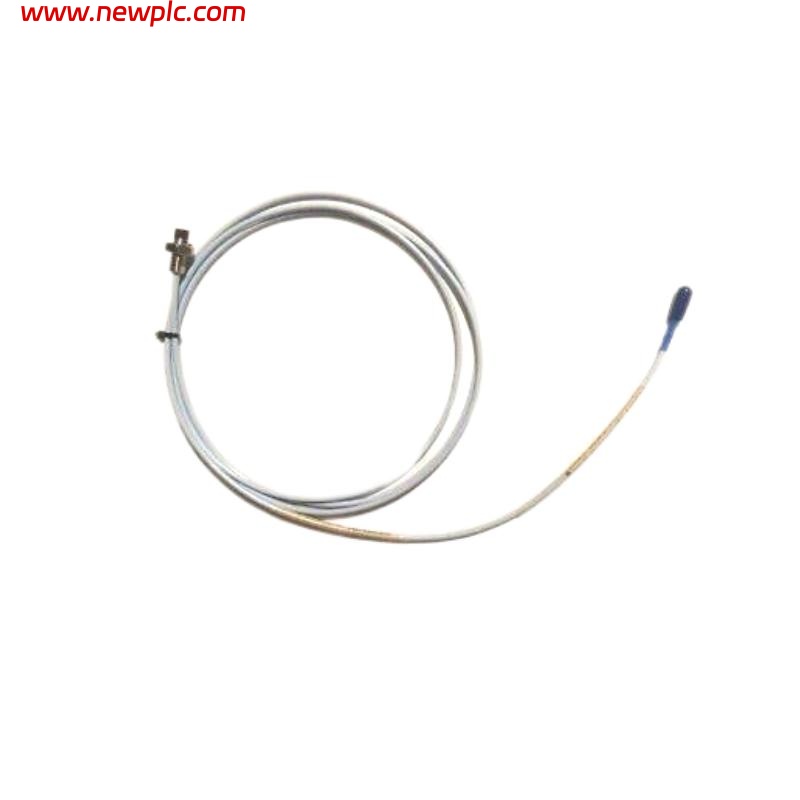

| Type | Bently Nevada 3300 XL 8 mm Proximity Probe |
| Measurement Principle | Eddy-current non-contact displacement measurement |
| Probe Tip Diameter | 8 mm (0.315 in) |
| Thread Size | M10 × 1 |
| Probe Length | 80 mm (nominal) |
| Cable Length | 5 m (integral probe cable) + 2 m (extension cable) |
| Sensitivity | 7.87 mV/µm (200 mV/mil) |
| Measurement Range | 2.0 mm (80 mils) |
| Frequency Response | DC to 10 kHz |
| Linearity | ±1% over the linear range |
| Material | Stainless steel probe body, PEEK insulated tip |
| Mounting Method | Threaded installation |
| Operating Temperature | -35°C to +177°C |
| Protection Rating | IP67 |
| Matching Components | 330130-0X-00 Extension Cable and 3300 XL Proximitor Sensor |
| Applications | Shaft vibration, radial position, and thrust position measurement |
| Dimensions | Probe tip diameter 8 mm, length 80 mm |
| Weight | ~0.27 kg |
FAQ
Click to rate this post!
[Total: 0 Average: 0]
Tags
Packing & Delivery
We will use wear-resistant cartons to seal the boxes, and take photos for your confirmation before sealing. We will pack the boxes only after confirmation.
For express delivery, we will use DHL, UPS, TNT, FedEx and EMS.
Please rest assured that we have a deep cooperation with express delivery companies and can ensure that your goods are delivered to you in good condition.
