Technical Specifications
| Parameter Category | Detailed Specification |
|---|---|

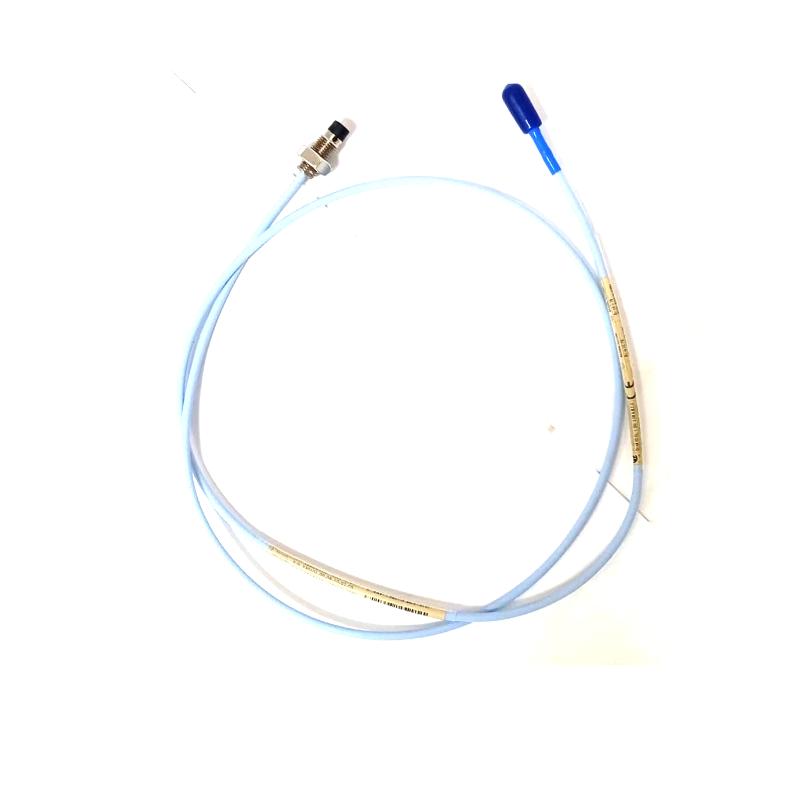

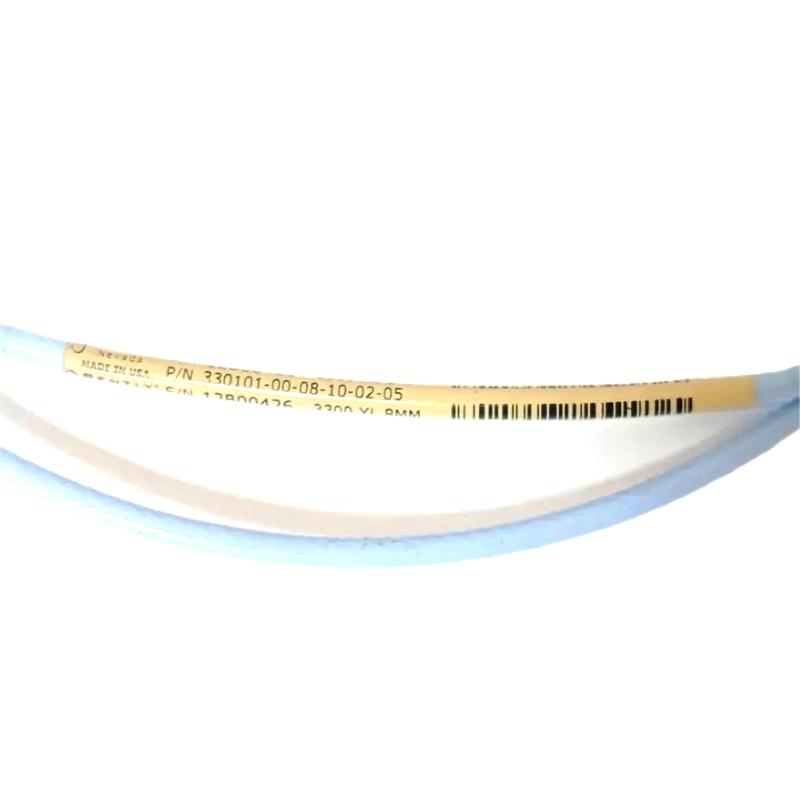

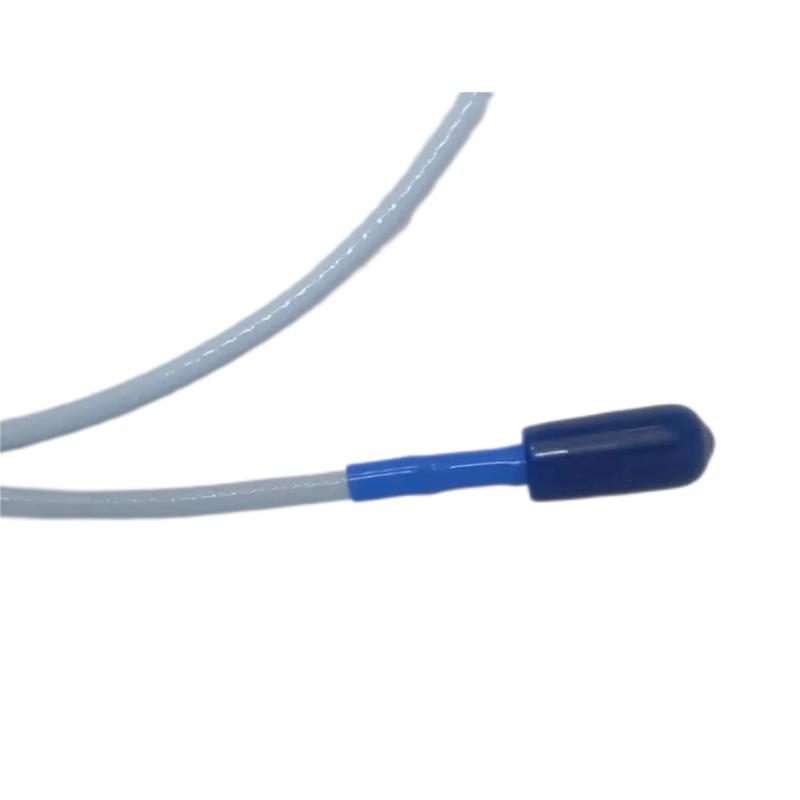

| Probe Model | Bently Nevada 330101-00-08-10-02-05 |
| System Composition | Includes one 3300 XL 8 mm probe, one extension cable, and one Proximitor sensor |
| Linear Range | 2 mm (80 mils), from 0.25 mm to 2.3 mm |
| Recommended Gap | -9 VDC (approximately 1.27 mm / 50 mils) |
| Incremental Scale Factor | 7.87 V/mm (200 mV/mil) ±5% (5 m system), ±6.5% (9 m system) |
| Best Fit Deviation | < ±0.025 mm (±1 mil, 5 m system); < ±0.038 mm (±1.5 mil, 9 m system) |
| Operating Temp Range | Probe: -52°C to +177°C; Cable: -52°C to +177°C; Sensor: -52°C to +100°C |
| Materials | Probe body: AISI 303/304 stainless steel; Connector: gold-plated brass or BeCu |
| Cable Type | 75Ω triaxial, FEP-insulated standard cable |
| Probe Torque | Max: 33.9 N•m (300 in•lbf); Recommended: 11.2 N•m (100 in•lbf) |
| Power Supply | -17.5 to -26 VDC, 12 mA max |
| Output Resistance | 50 Ω |
| Minimum Target Size | 15.2 mm (0.6 in) |
| Recommended Shaft Diameter | Minimum: 50.8 mm (2 in); Recommended: 76.2 mm (3 in) |
| Total Length | 1.0 meter (probe only) |
| Total Weight | 0.323 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the total length of the 330101-00-08-10-02-05 probe?
A1: The total probe length is 1.0 meter.
Q2: What is the maximum operating temperature supported by this probe?
A2: The standard probe supports up to +177°C.
Q3: What is the recommended gap for installation?
A3: The recommended gap is approximately 1.27 mm (corresponding to -9 VDC output).
Q4: What is the linear measurement range of the probe?
A4: It ranges from 0.25 mm to 2.3 mm.
Q5: What are the typical applications for this probe?
A5: It’s used for vibration and position monitoring on fluid-film bearing machinery and for Keyphasor and speed measurement.
Q6: Does the probe support high-frequency signal response?
A6: Yes, it supports up to 10 kHz frequency response (+0 / -3 dB).
Q7: Is this probe system compliant with API 670 standards?
A7: Yes, the full system complies with API 670 standards for mechanical configuration and measurement accuracy.
Q8: Are special tools needed for connector installation?
A8: No, ClickLoc connectors are tool-free and click when properly tightened.
