Technical Specifications
| Item | Specification |
|---|---|
| Model Number | 330101-00-09-10-02-05 |

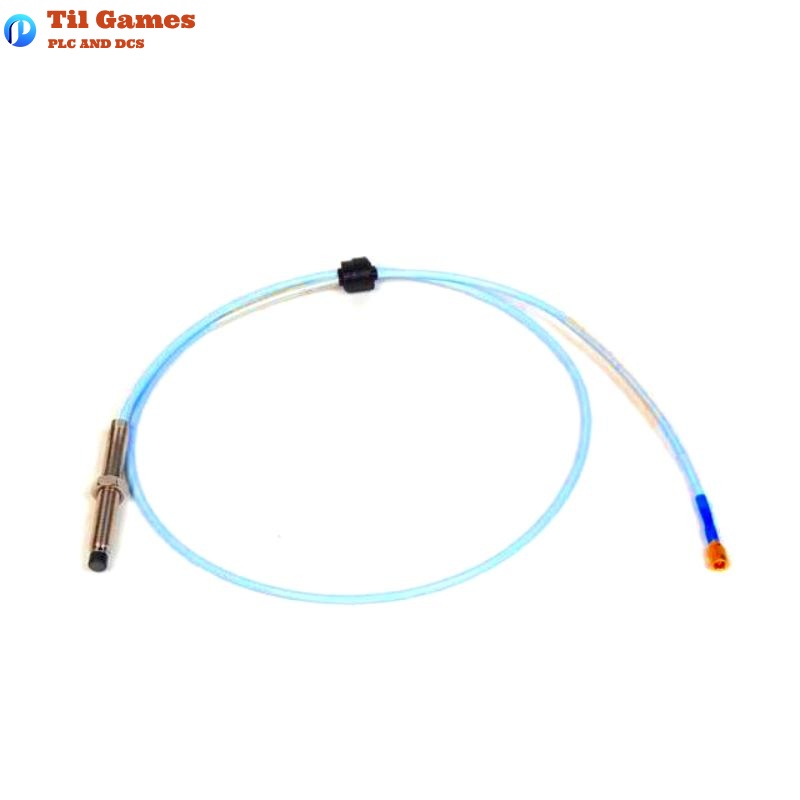

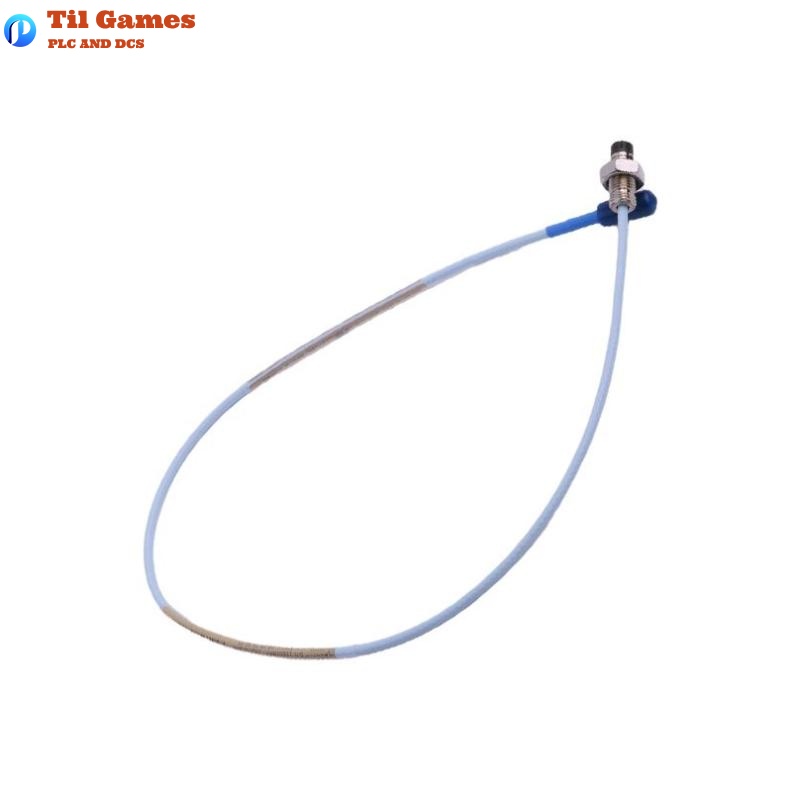

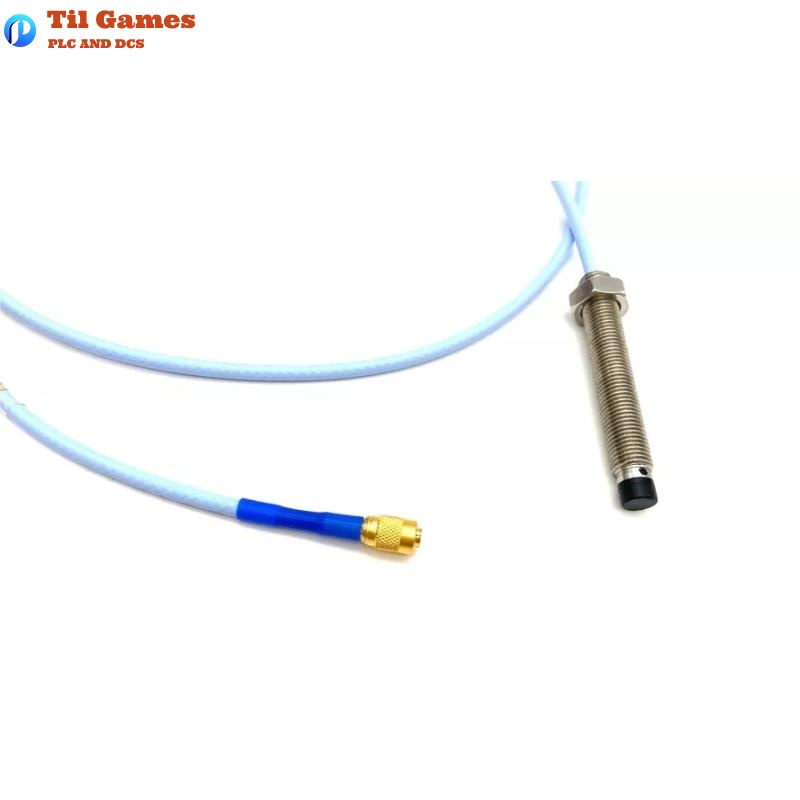

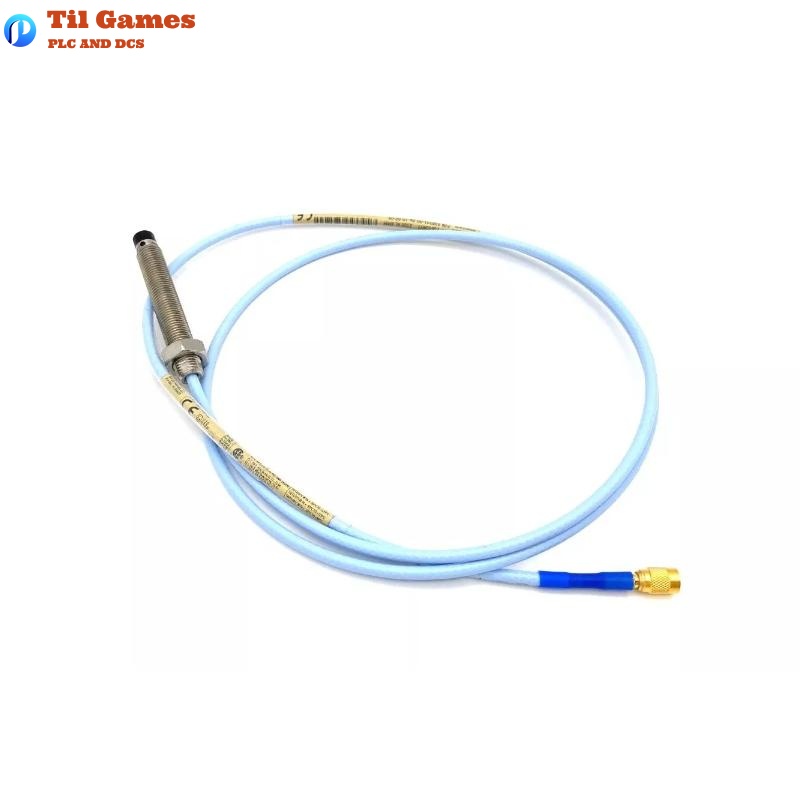

| System Type | 3300 XL 8 mm Proximity Transducer System |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 Stainless Steel |
| Cable Type | 75Ω triaxial, FEP insulated |
| Connector Type | Miniature coaxial ClickLoc |
| Total Length | 1.0 meter |
| Weight | 0.323 kg (Probe only) |
| System Weight | Approx. 0.7 kg (including extension and sensor) |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Output Scale Factor | 7.87 V/mm ±5% (Standard 5/1m system), ±6.5% (9m system) |
| Power Supply Requirement | -17.5 VDC to -26 VDC |
| Operating Temperature | -52°C to +177°C (Standard), -52°C to +218°C (ETR probe tip) |
| Storage Temperature | -52°C to +177°C |
| Humidity Resistance | ≤3% change in scale factor @ 93% RH (IEC 68-2-3, 56 days) |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Mounting Thread | 3/8-24 UNF (Thread Engagement: 0.563 in max) |
| Compliance | API 670, CE, FCC Part 15, SIL 2/3, CSA, ATEX, IECEx certified |
FAQ
FAQ
Q1: What is the primary function of the 330101-00-09-10-02-05 probe?
A1: It measures shaft vibration and position in fluid-film bearing machines using eddy current principles.
Q2: Is this probe compatible with older 3300 series systems?
A2: Yes, it’s both electrically and physically compatible with non-XL 3300 5 mm and 8 mm components.
Q3: Can this probe be used in high-temperature environments?
A3: Yes, the extended temperature version supports up to +218°C at the probe tip and +260°C on the cable.
Q4: What is the recommended gap voltage setting?
A4: The recommended DC gap voltage for radial vibration is -9 VDC, equivalent to ~1.27 mm (50 mils).
Q5: Is any calibration required before use?
A5: No. It comes factory calibrated for AISI 4140 steel. Custom calibrations are available upon request.
Q6: How should I install the probe for best reliability?
A6: Use the specified torque (11.2 N·m recommended for standard forward mount), observe bend radius, and install connector protectors.
Q7: What materials are used for connectors?
A7: Gold-plated brass or gold-plated beryllium copper ensures corrosion resistance.
Q8: Can this probe be used in hazardous environments?
A8: Yes, it holds ATEX, CSA, and IECEx certifications and supports intrinsically safe and non-incendive applications.
