Technical Specifications
| Item | Specification |
|---|---|
| Model | 330101-00-12-10-01-05 |

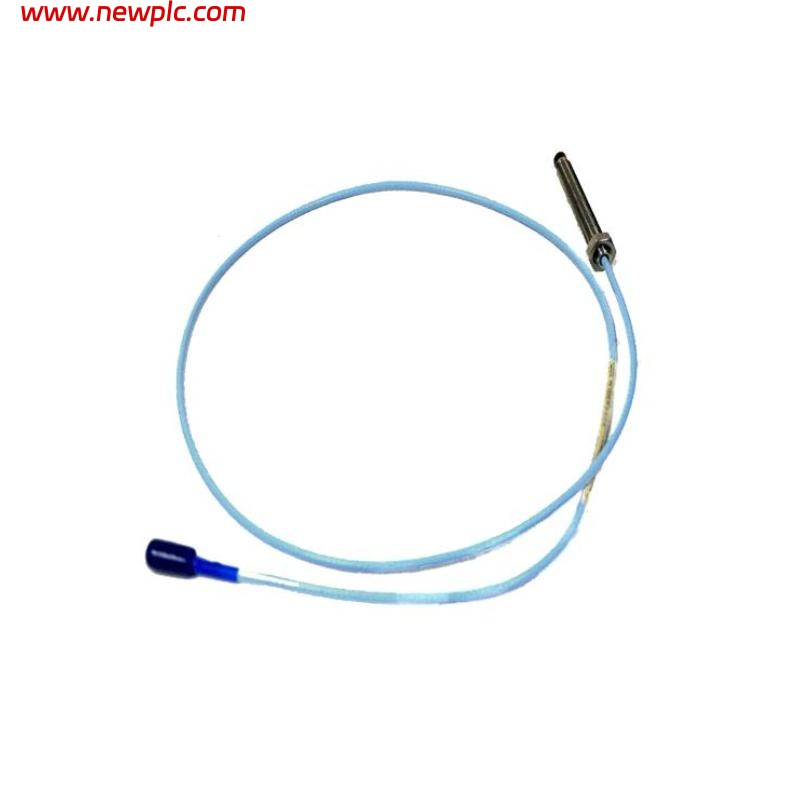

| Type | Bently Nevada 3300 XL 12 mm Proximity Probe |
| Measurement Principle | Eddy-current non-contact displacement measurement |
| Probe Tip Diameter | 12 mm (0.47 in) |
| Thread Size | M14 × 1.5 |
| Probe Length | 100 mm (nominal) |
| Cable Length | 10 m integral cable |
| Sensitivity | 7.87 mV/µm (200 mV/mil) |
| Measurement Range | 4.0 mm (160 mils) |
| Frequency Response | DC to 10 kHz |
| Linearity | ±1% of full scale |
| Housing Material | Stainless steel |
| Tip Material | PEEK (polyether ether ketone) |
| Mounting Method | Threaded installation |
| Operating Temperature | -35°C to +177°C |
| Protection Rating | IP67 |
| Matching Components | 330130-0X-00 Extension Cable and 3300 XL Proximitor Sensor |
| Applications | Shaft vibration, displacement, and phase reference monitoring |
| Dimensions | Probe tip diameter 12 mm, body length 100 mm |
| Weight | Approximately 0.38 kg |
FAQ
FAQ
Q1: What is the main purpose of the 330101-00-12-10-01-05 proximity probe?
It is used for monitoring shaft vibration, displacement, and position in rotating machinery such as turbines, compressors, and motors.
Q2: What technology is used for measurement?
The probe operates based on eddy-current technology, enabling accurate and non-contact displacement measurement of conductive surfaces.
Q3: What is the measurement range of this model?
It provides a linear measurement range of 4.0 mm (160 mils).
Q4: What is the cable length of this probe?
This model includes a 10-meter integral cable, ideal for long-distance installations.
Q5: What Proximitor sensor is compatible with this probe?
It is designed to work with the Bently Nevada 3300 XL Proximitor Sensor for accurate calibration and signal reliability.
Q6: What materials are used for the probe body and tip?
The housing is made of stainless steel, and the probe tip uses durable PEEK insulation for high mechanical and chemical resistance.
Q7: What temperature range can the probe withstand?
It can operate within a wide temperature range from -35°C to +177°C.
Q8: Where is this probe typically used?
It is widely applied in power generation, oil and gas, and heavy industrial equipment for vibration monitoring and machinery protection.
