Technical Specifications
| Item | Specification |
|---|---|
| Model | 330101-00-16-10-02-CN |

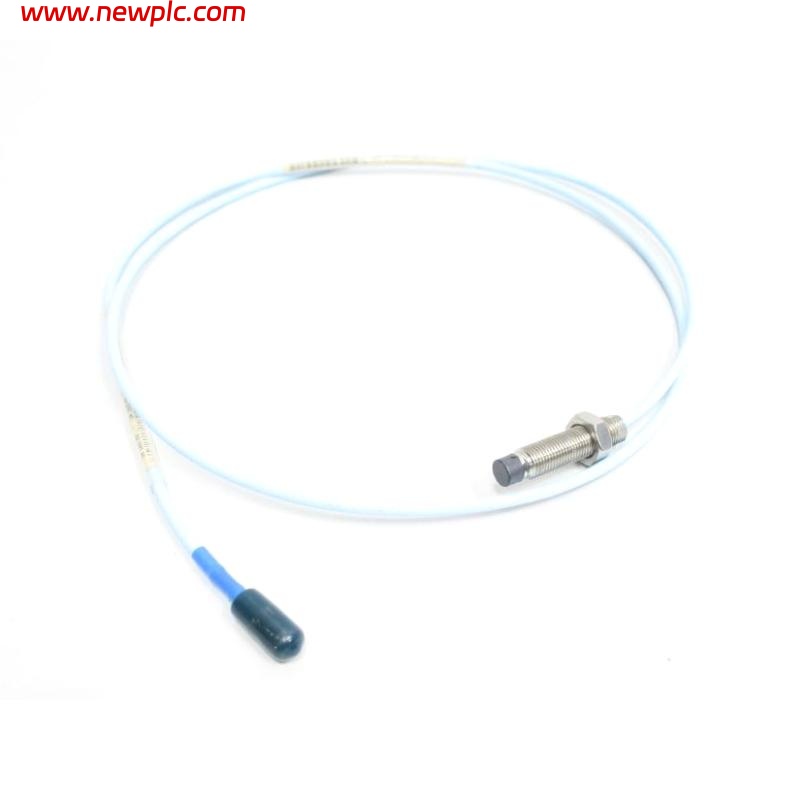

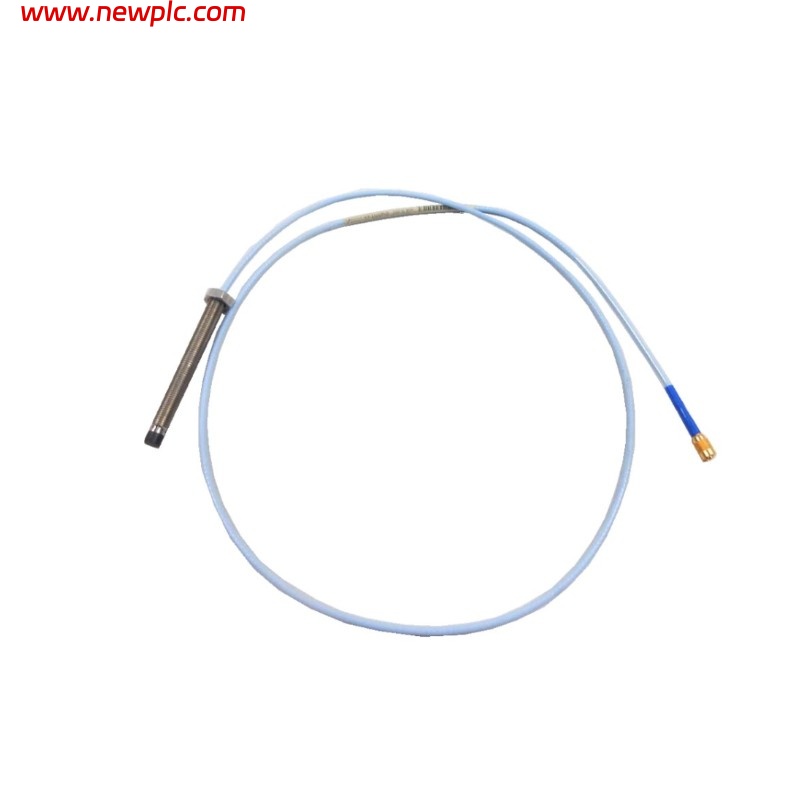

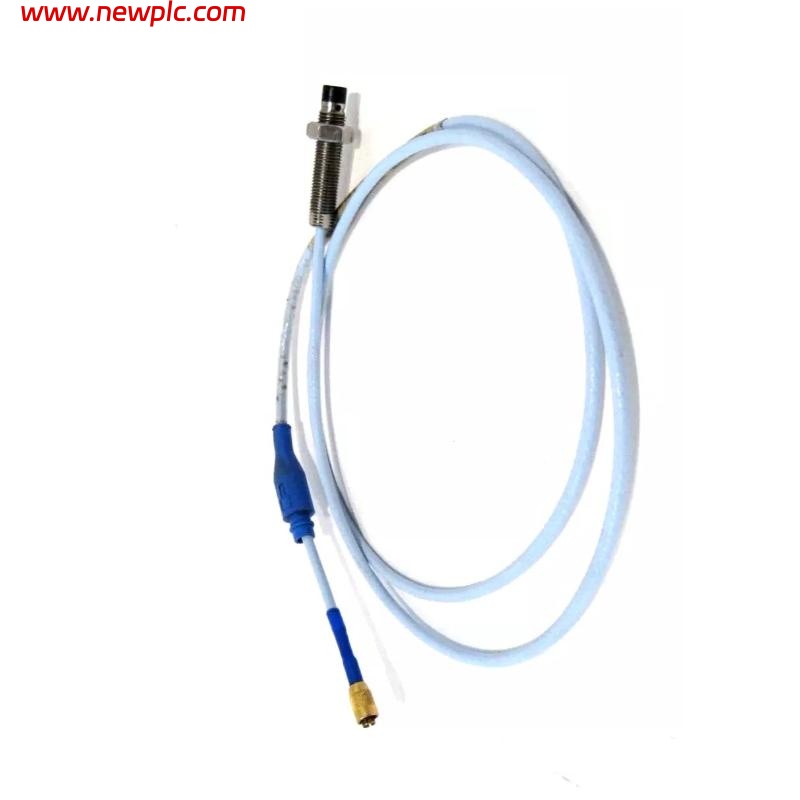

| Type | Bently Nevada 3300 XL 8 mm Proximity Probe |
| Measurement Principle | Eddy-current non-contact displacement measurement |
| Probe Tip Diameter | 8 mm (0.31 in) |
| Thread Size | M10 × 1 |
| Probe Length | 80 mm (nominal) |
| Cable Length | 10.0 m integral cable |
| Sensitivity | 7.87 mV/µm (200 mV/mil) |
| Measurement Range | 2.0 mm (80 mils) |
| Frequency Response | DC to 10 kHz |
| Linearity | ±1% of full scale |
| Housing Material | Stainless steel |
| Tip Material | PEEK (polyether ether ketone) |
| Mounting Method | Threaded installation |
| Operating Temperature | -35°C to +177°C |
| Protection Rating | IP67 |
| Matching Components | 330130-0X-00 Extension Cable and 3300 XL Proximitor Sensor |
| Applications | Shaft vibration, axial position, and displacement monitoring |
| Dimensions | Probe tip diameter 8 mm, body length 80 mm |
| Weight | Approximately 0.30 kg |
FAQ
FAQ
Q1: What is the function of the 330101-00-16-10-02-CN probe?
It measures shaft vibration, displacement, and position changes in rotating machinery such as turbines and compressors.
Q2: What sensing technology is used in this model?
The probe uses eddy-current technology, enabling precise, non-contact measurement of conductive surfaces.
Q3: What is the total cable length for this version?
This model includes a 10.0-meter integral cable for flexible installation in industrial setups.
Q4: What is its typical measurement range?
It provides a linear measurement range of up to 2.0 mm (80 mils).
Q5: Which Proximitor is compatible with this probe?
It is designed for use with the Bently Nevada 3300 XL Proximitor Sensor for optimal accuracy and calibration.
Q6: Can the probe operate in harsh environments?
Yes, the stainless-steel housing and IP67 rating make it resistant to oil, moisture, and mechanical vibration.
Q7: What temperature range does it support?
The probe is suitable for continuous operation between -35°C and +177°C.
Q8: In what industries is this model typically used?
It is commonly used in power generation, petrochemical, oil and gas, and other industrial machinery monitoring applications.
