Technical Specifications
| Item | Specification |
|---|---|
| Model | 330101-00-17-10-02-05 |

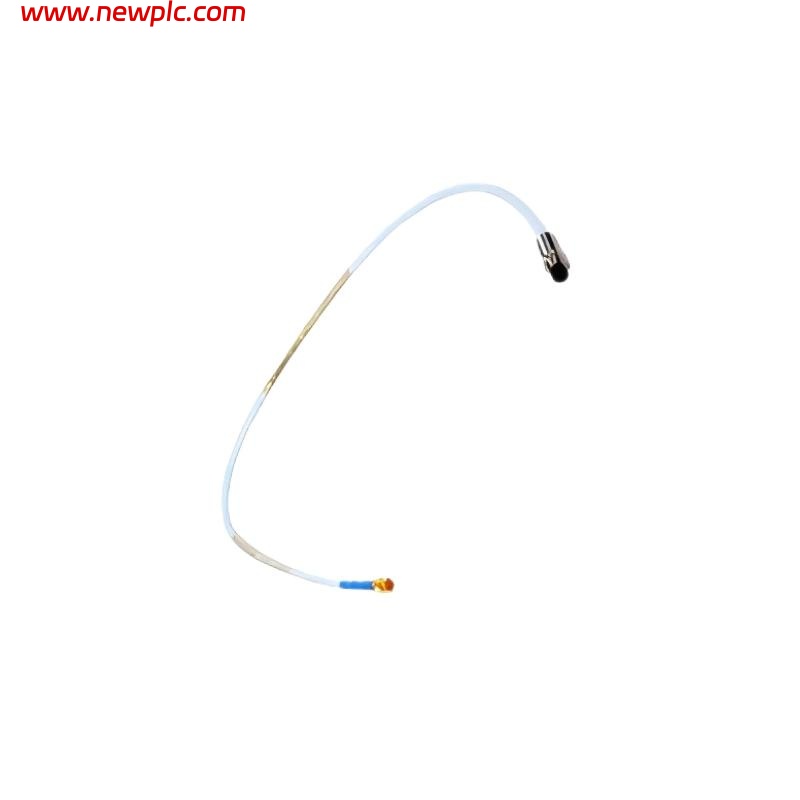

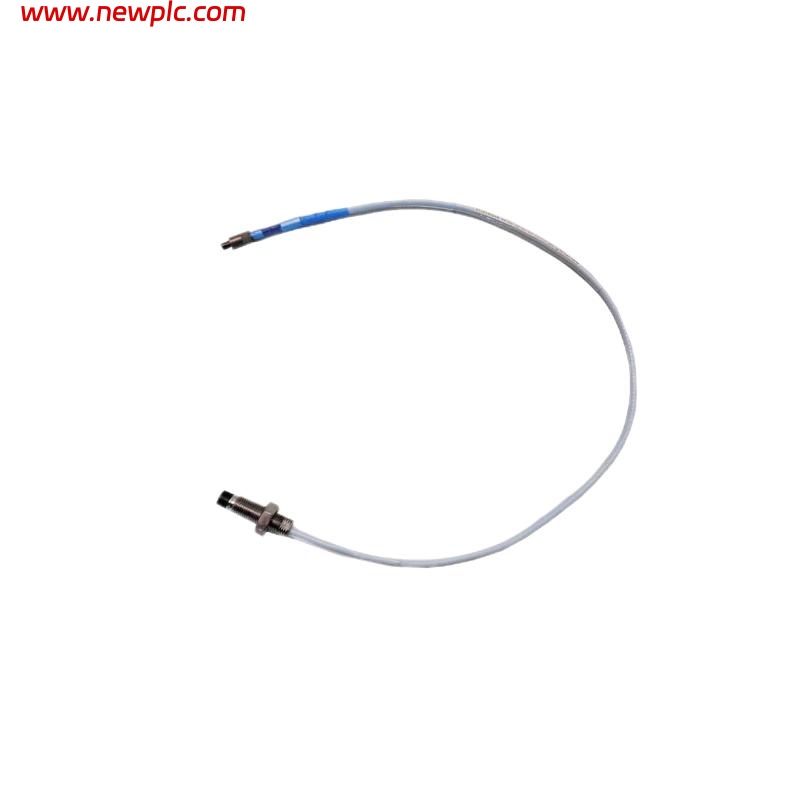

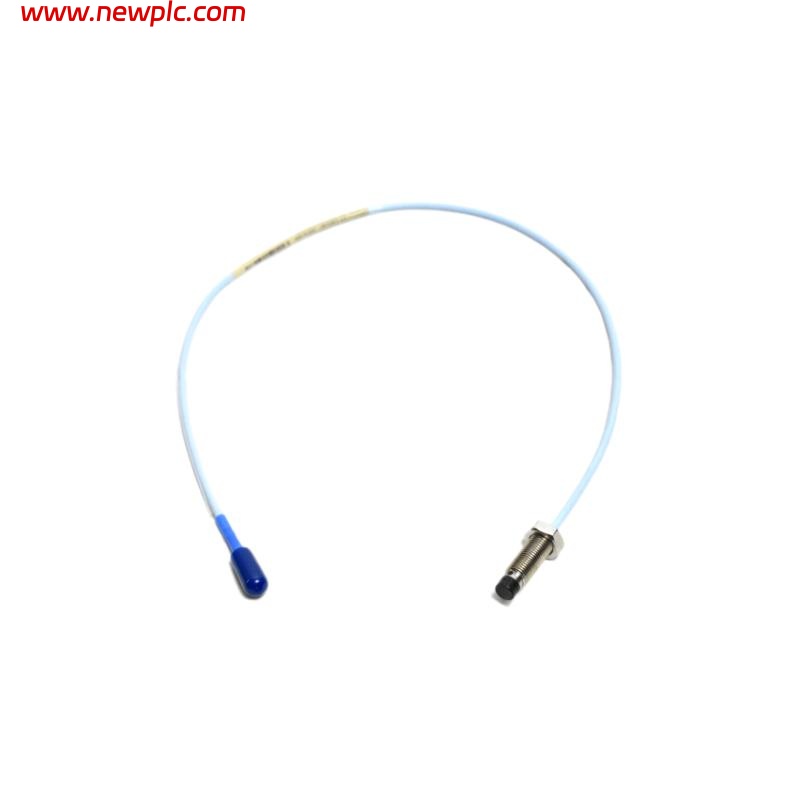

| Type | Bently Nevada 3300 XL 8 mm Proximity Probe |
| Measurement Principle | Eddy-current non-contact displacement measurement |
| Probe Tip Diameter | 8 mm (0.31 in) |
| Thread Size | M10 × 1 |
| Probe Length | 100 mm (nominal) |
| Cable Length | 10.0 m integral cable |
| Sensitivity | 7.87 mV/µm (200 mV/mil) |
| Measurement Range | 2.0 mm (80 mils) |
| Frequency Response | DC to 10 kHz |
| Linearity | ±1% of full scale |
| Housing Material | Stainless steel |
| Tip Material | PEEK (polyether ether ketone) |
| Mounting Method | Threaded installation |
| Operating Temperature | -35°C to +177°C |
| Protection Rating | IP67 |
| Matching Components | 330130-0X-00 Extension Cable and 3300 XL Proximitor Sensor |
| Applications | Shaft vibration, axial position, and displacement monitoring |
| Dimensions | Probe tip diameter 8 mm, body length 100 mm |
| Weight | Approximately 0.29 kg |
FAQ
FAQ
Q1: What is the main purpose of the 330101-00-17-10-02-05 probe?
It is used for precise monitoring of shaft vibration, displacement, and position in rotating machinery such as turbines, compressors, and motors.
Q2: What sensing principle does it use?
This probe operates using eddy-current technology, enabling non-contact, high-precision measurement of conductive targets.
Q3: What is the measurement range for this model?
The probe provides a linear measurement range of up to 2.0 mm (80 mils).
Q4: What is the total cable length included?
It comes with a 10.0-meter integral cable, ideal for long-distance installations.
Q5: Which Proximitor is compatible with this probe?
It is designed for use with the Bently Nevada 3300 XL Proximitor Sensor to ensure accurate signal calibration.
Q6: How durable is this probe in industrial environments?
The stainless-steel body and IP67 rating make it resistant to oil, vibration, and harsh environmental conditions.
Q7: What temperature range can it operate in?
It functions reliably between -35°C and +177°C, suitable for most heavy industrial applications.
Q8: In which industries is this probe commonly applied?
It is widely used in oil and gas, petrochemical, power generation, and heavy machinery condition monitoring systems.
