Technical Specifications
| Item | Specification |
|---|---|
| Model | 330101-00-18-20-02-05 |

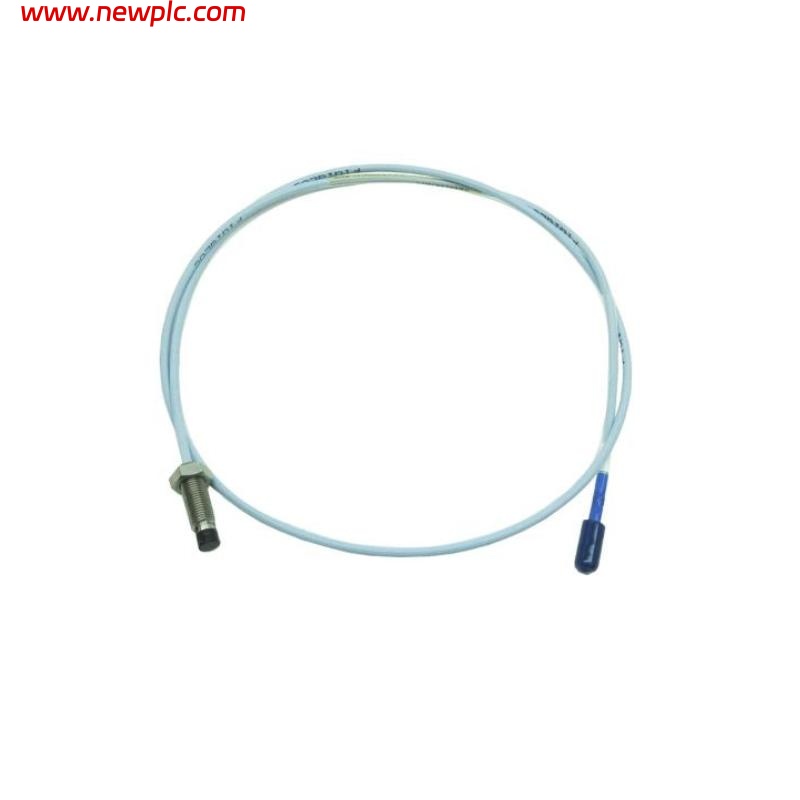

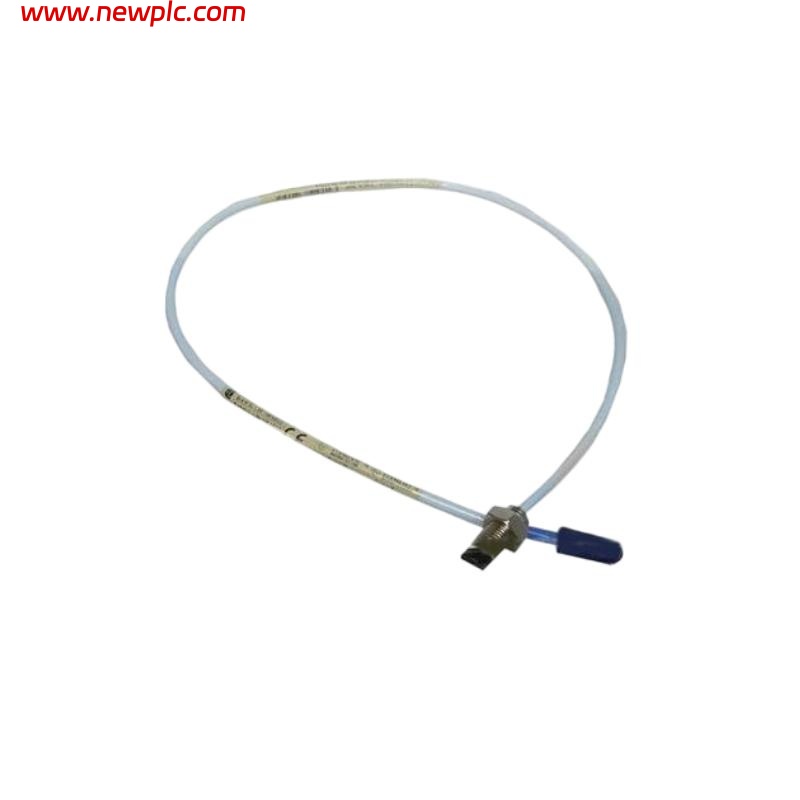

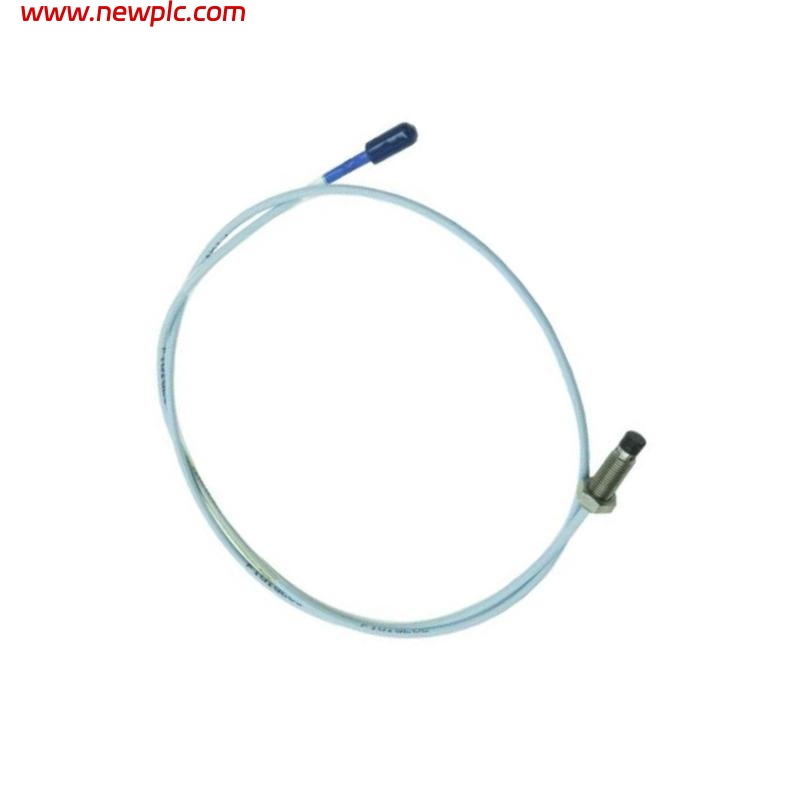

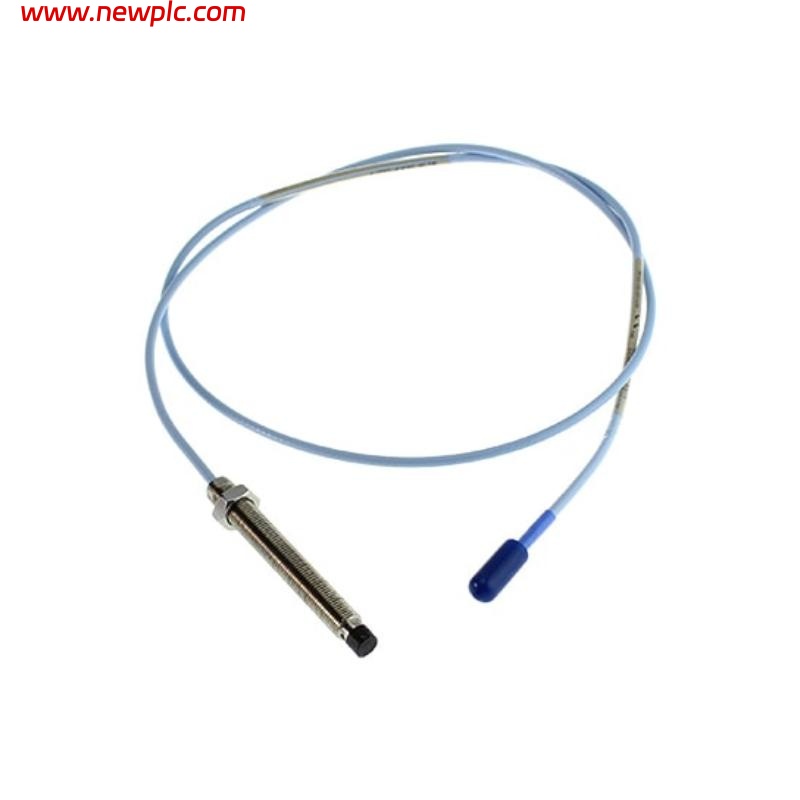

| Type | Bently Nevada 3300 XL 8 mm Proximity Probe |
| Measurement Principle | Eddy current, non-contact displacement measurement |
| Probe Tip Diameter | 8 mm |
| System Length | 18 meters (probe + extension cable + proximitor) |
| Calibration Target Material | AISI 4140 steel (standard) |
| Sensitivity | 7.87 mV/µm (±5%) |
| Linear Range | 2.0 mm (80 mils) |
| Frequency Response | DC to 10 kHz |
| Power Supply (via Proximitor) | -24 VDC nominal |
| Output Signal | -200 mV to -20 V, proportional to gap distance |
| Housing Material | Stainless steel |
| Cable Type | Low-noise, shielded coaxial cable |
| Connector Type | Miniature coaxial connector |
| Protection Rating | IP67 (dust and water-resistant) |
| Operating Temperature | -35°C to +177°C |
| Storage Temperature | -40°C to +200°C |
| Dimensions | Probe tip diameter 8 mm, total system length 18 m |
| Weight | 0.22 kg (approx.) |
| Regional Code | 05 – Region-specific calibration and compliance configuration |
| Applications | Shaft vibration, axial displacement, and speed monitoring in turbines, compressors, pumps, and other rotating machinery |
FAQ
FAQ
Q1: What is the primary function of the 330101-00-18-20-02-05 probe?
It measures shaft vibration, axial displacement, and speed in rotating machinery using non-contact eddy current technology.
Q2: What does “18-20” represent in the model number?
“18” refers to the total system length of 18 meters, and “20” indicates a specific calibration and probe configuration.
Q3: What does the “02-05” suffix signify?
It denotes a region-specific configuration with calibration and compliance tailored for industrial standards.
Q4: Which proximitor units are compatible with this probe?
It works with Bently Nevada 3300 XL Proximitor sensors, including models 3300/05 and 3300/15.
Q5: What is the probe’s measurement range and sensitivity?
The linear range is 2.0 mm (80 mils), with a sensitivity of 7.87 mV/µm (±5%).
Q6: Can this probe operate in high-temperature environments?
Yes, it operates from -35°C to +177°C and can be stored up to +200°C.
Q7: What is the environmental protection rating?
The probe is rated IP67, offering full protection against dust and temporary immersion in water.
Q8: What applications is this probe commonly used for?
It is used for continuous vibration, displacement, and shaft position monitoring in turbines, compressors, pumps, motors, and other industrial rotating machinery.
