Technical Specifications
| Item | Specification |
|---|---|
| Model | 330101-00-20-10-02 |

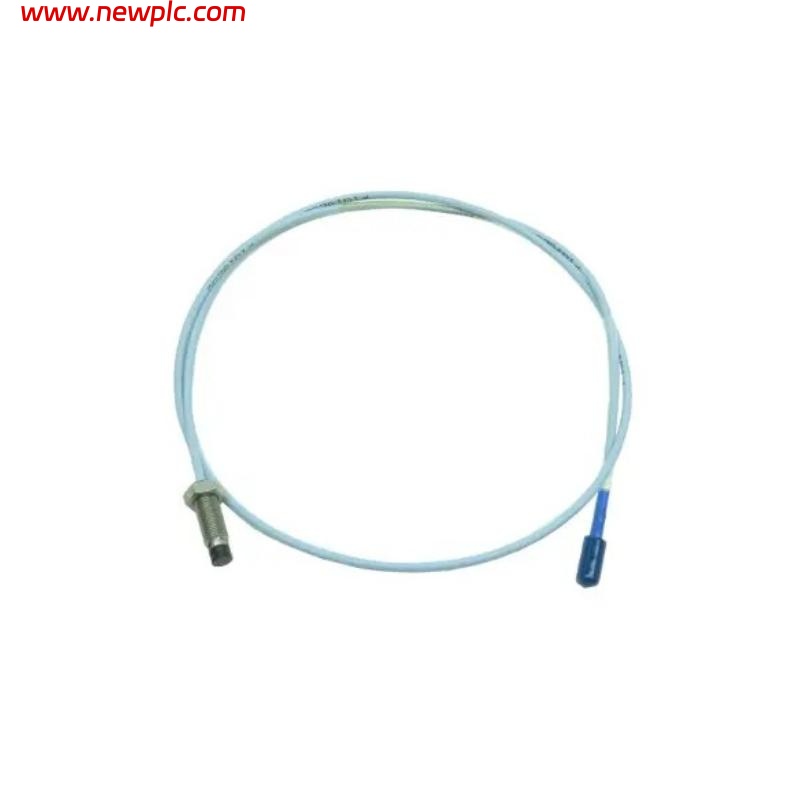

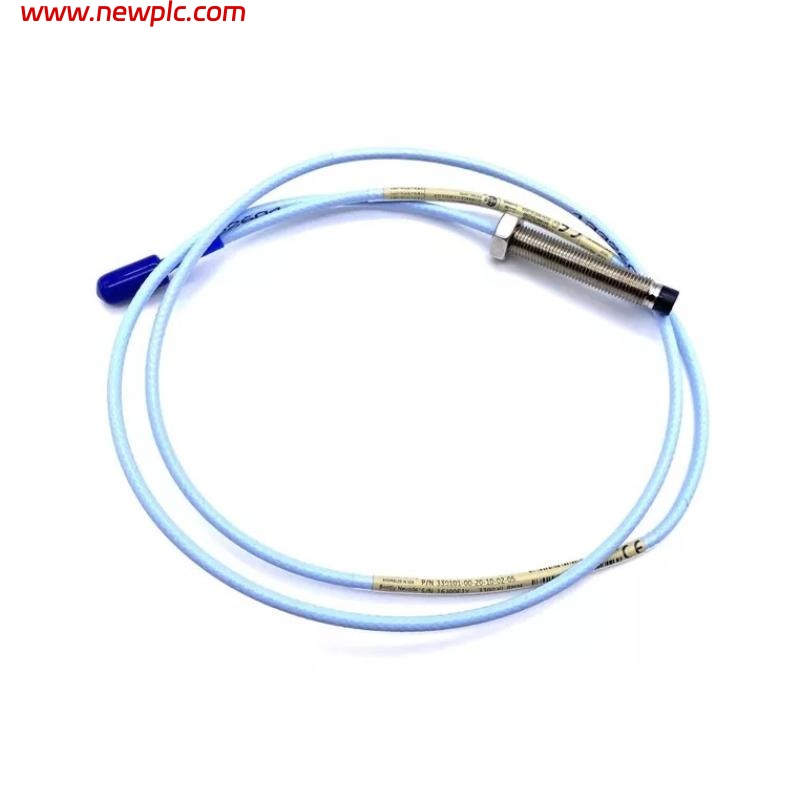

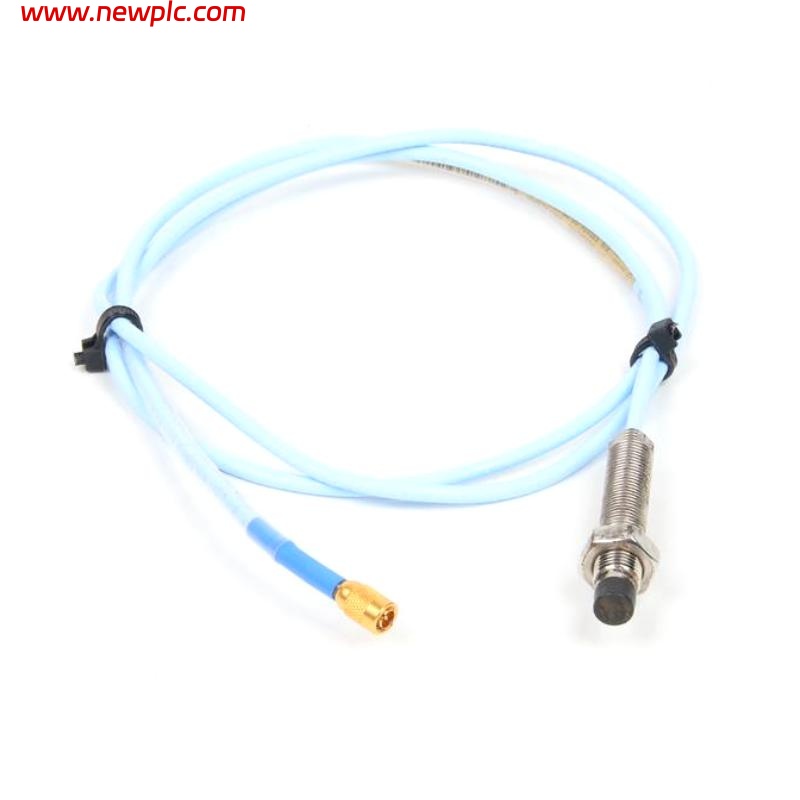

| Type | 8 mm Eddy-Current Proximity Probe (Bently Nevada 3300 XL series) |
| Measurement Principle | Eddy-current, non-contact displacement/vibration sensing |
| Probe Tip Diameter | 8 mm |
| Overall System Length | 20 m (probe + extension cable) |
| Sensitivity | ~7.87 mV/µm (≈200 mV/mil) |
| Linear Measurement Range | ~2.0 mm (80 mils) |
| Frequency Response | DC to ~10 kHz |
| Output Signal | –200 mV to –20 V (proportional to gap) |
| Cable & Connector Type | Miniature coaxial ClickLoc connector, standard cable |
| Housing Material | Stainless steel |
| Protection Rating | IP67 (sealed against dust and immersion) |
| Operating Temperature | –35 °C to +177 °C |
| Storage Temperature | –40 °C to +200 °C |
| Dimensions | Probe tip diameter 8 mm; overall system length ~20 m |
| Weight | Approximately 0.22 kg |
| Applications | Shaft vibration, axial displacement, and position monitoring in turbines, compressors, pumps, and industrial rotating machinery |
FAQ
FAQ
Q1: What is the function of the 330101-00-20-10-02 probe?
It provides non-contact measurement of machine shaft vibration and displacement through eddy-current sensing, feeding into protection and condition-monitoring systems.
Q2: What does the “20-10” portion of the model number indicate?
“20” refers to the total system length of 20 m; “10” designates a specific internal calibration/configuration of the probe module.
Q3: What is the meaning of “02” at the end of the model number?
It typically denotes the connector/cable option (e.g., miniature coaxial) and may include agency-approval or regional configuration codes.
Q4: Is this probe compatible with other 3300 XL system components?
Yes, it is part of the 3300 XL series and designed for full interchangeability with other probe, extension cable and Proximitor sensor components of the same family.
Q5: What is the linear measurement range and why does it matter?
The linear range is approximately 2.0 mm (80 mils); staying within this ensures the measurement output remains proportional and accurate.
Q6: Can this probe be used in harsh industrial environments?
Yes, with an IP67 rating, wide temperature operating range and rugged stainless-steel construction it is suitable for demanding conditions typical of heavy machinery.
Q7: What installation considerations should be taken into account?
Ensure correct gap set-up between probe tip and target, proper grounding/shielding of cable, and compatibility with the matching Proximitor sensor and system length.
Q8: What industries commonly use this probe model?
It is widely used in sectors such as power generation, oil & gas, petrochemical and manufacturing for monitoring turbines, compressors, pumps and other high-speed rotating equipment.
