Technical Specifications
| Item | Specification |
|---|---|
| Model | 330101-00-20-10-02-CN |

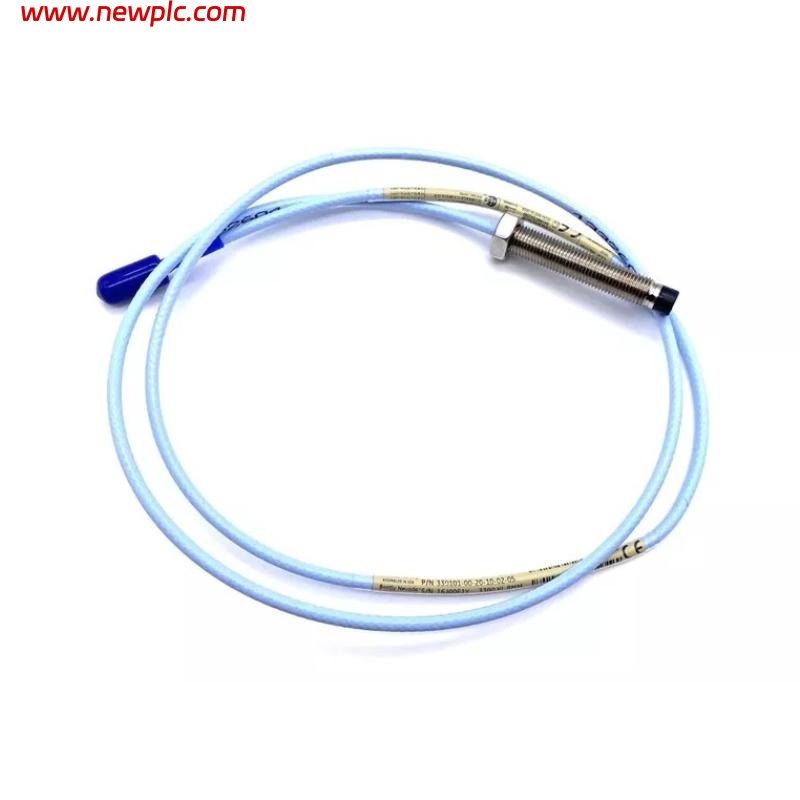

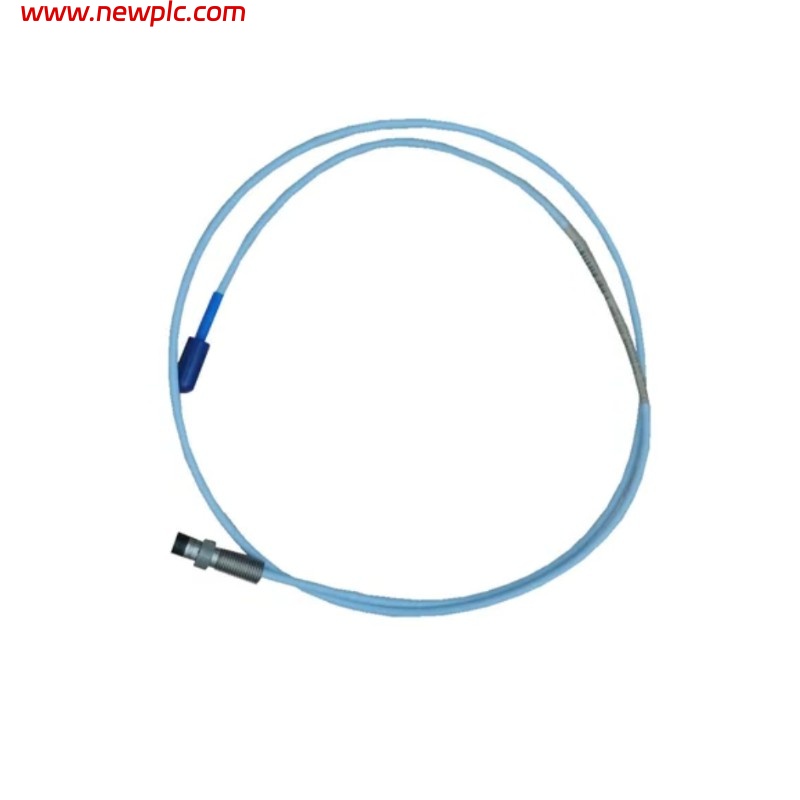

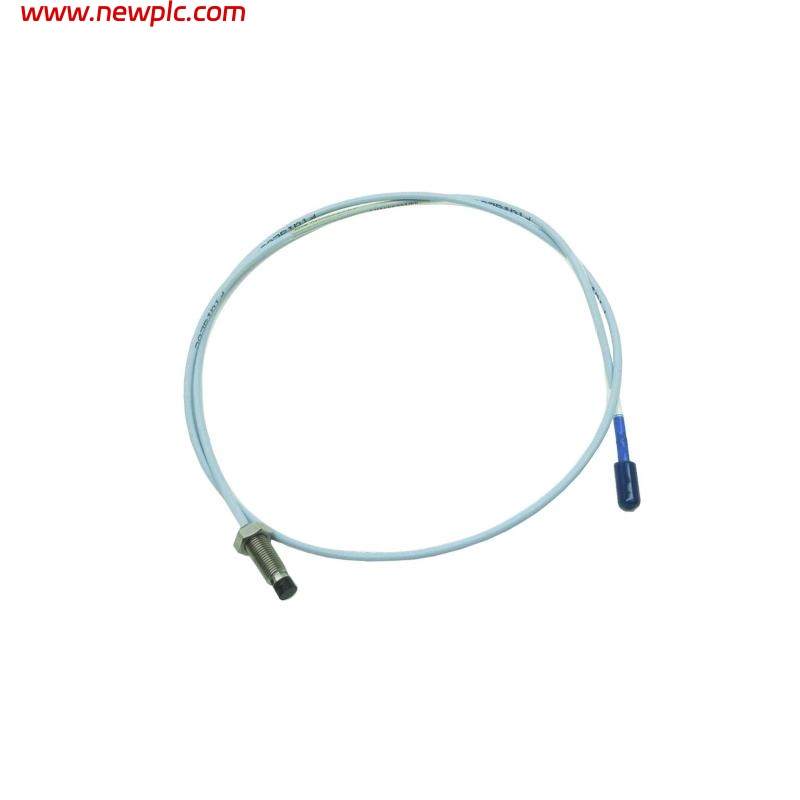

| Type | Bently Nevada 3300 XL 8 mm Proximity Probe |
| Measurement Principle | Eddy-current non-contact displacement and vibration measurement |
| Probe Tip Diameter | 8 mm |
| Total System Length | 20 m (probe + extension cable) |
| Sensitivity | Approximately 7.87 mV/µm (≈ 200 mV/mil) |
| Linear Measurement Range | 0–2.0 mm (80 mils typical) |
| Frequency Response | DC to 10 kHz |
| Housing Material | Stainless steel |
| Protection Rating | IP67 |
| Mounting Method | Threaded installation |
| Operating Temperature | –51 °C to +177 °C |
| Storage Temperature | –55 °C to +200 °C |
| Cable Type | Low-noise coaxial cable with ClickLoc™ connector |
| Matching Components | 3300 XL Proximitor Sensor and Extension Cable |
| Application Environment | Industrial, oil-resistant, vibration-resistant |
| Applications | Shaft vibration, axial displacement, and position monitoring |
| Dimensions | Probe tip diameter: 8 mm; system length: 20 m |
| Weight | Approximately 0.32 kg |
FAQ
FAQ
Q1: What is the function of the 330101-00-20-10-02-CN probe?
It measures the vibration and displacement of rotating shafts using a non-contact eddy-current method for precise machinery condition monitoring.
Q2: What does the suffix “-CN” mean?
“CN” identifies a regional or certified version manufactured for use in China, typically with local compliance or approvals.
Q3: What does “20-10” represent in the model number?
“20” refers to a 20 m system length (probe + cable), and “10” denotes a 1.0 m probe length configuration.
Q4: What is the linear measurement range and sensitivity of this probe?
It has a linear range of about 2.0 mm (80 mils) and a sensitivity of approximately 7.87 mV/µm (≈ 200 mV/mil).
Q5: Can this probe operate in harsh environments?
Yes, it is rated IP67 and designed to operate from –51 °C to +177 °C, suitable for harsh industrial and oilfield environments.
Q6: What materials are used in its construction?
The probe is made of stainless steel to ensure durability and corrosion resistance in industrial conditions.
Q7: What are common applications for this probe?
It is used for shaft vibration, axial position, and phase reference measurements in turbines, compressors, pumps, and motors.
Q8: Is this probe interchangeable with other 3300 XL components?
Yes. The 330101 probe is fully compatible with other 3300 XL Proximitor systems, ensuring easy replacement and integration without recalibration.
