Technical Specifications
| Item | Specification |
|---|---|
| Model | 330101-00-20-15-02-05 |

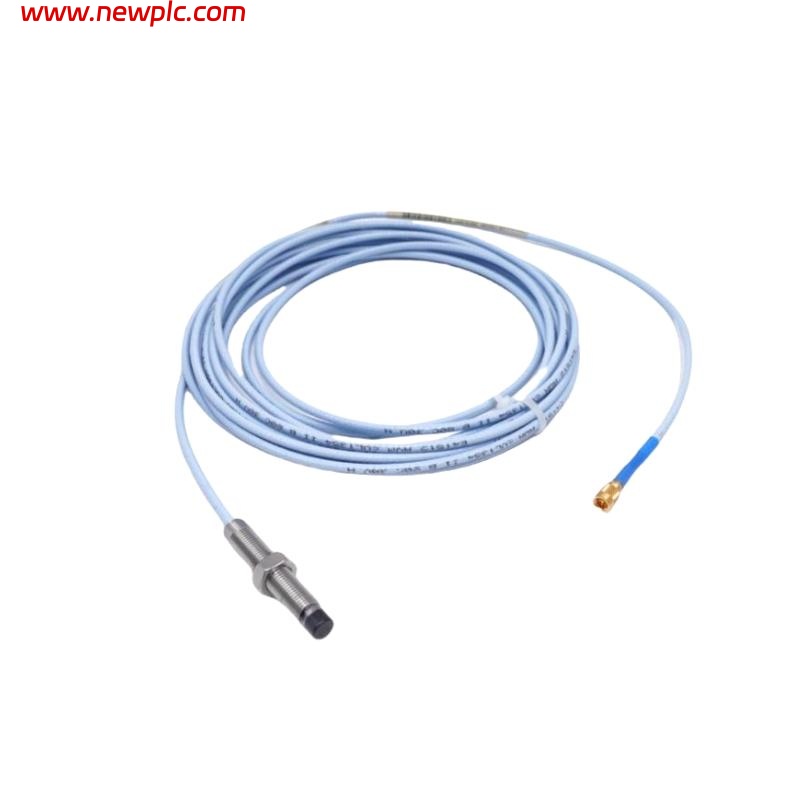

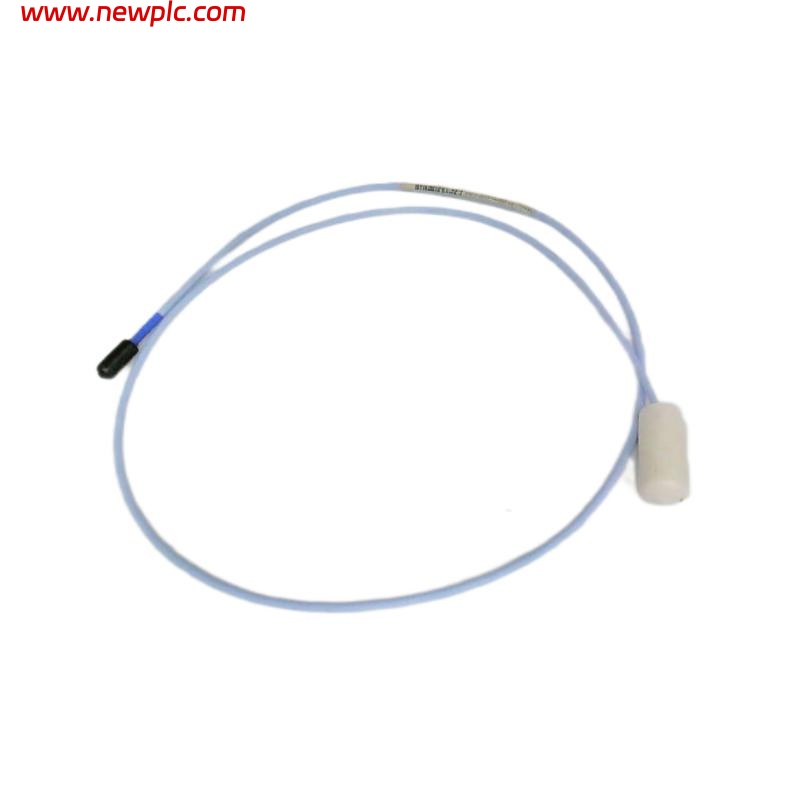

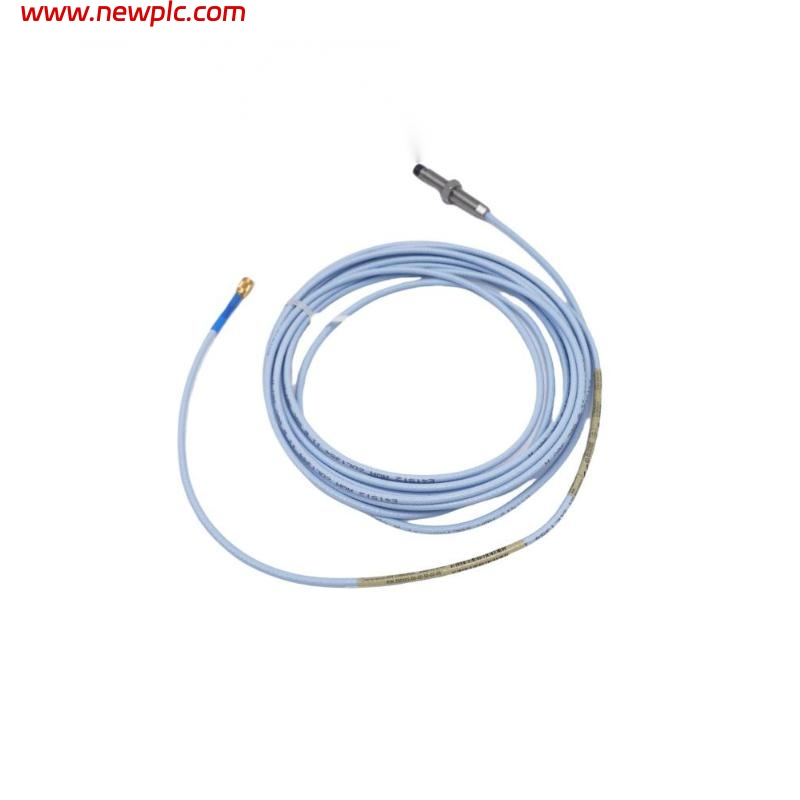

| Series | 3300 XL 8 mm Proximity Probe |
| Measurement Principle | Eddy-current (non-contact) displacement sensing |
| Linear Range | 0–2 mm typical |
| Sensitivity | 7.87 mV/µm (nominal) |
| Frequency Response | Up to ~10 kHz |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | Stainless steel |
| Operating Temperature Range | –52 °C to +177 °C |
| Connector Type | ClickLoc™ miniature coaxial |
| Probe Length Code | “20” = 200 mm probe case length |
| Cable Code | “15” = 1.5 m integrated cable |
| Approval Code | “02” = Standard industrial approval |
| Safety Certification | “05” = CSA / ATEX / IECEx hazardous-area approval |
| Dimensions | Probe tip diameter: 8 mm；Probe body length: 200 mm；Cable length: 1.5 m |
| Weight | Approx. 0.55–0.58 kg |
FAQ
FAQ
Q1: What does the model 330101-00-20-15-02-05 represent?
It identifies an 8 mm 3300 XL probe with a 200 mm body, 1.5 m cable, standard industrial approval, and full hazardous-area certification.
Q2: What does the “20” in the part number mean?
It indicates a probe case length of 200 mm.
Q3: What does the “15” code specify?
It means the probe has an integrated cable length of 1.5 m.
Q4: What does the “02” approval code indicate?
It denotes a standard industrial approval suitable for general machinery monitoring.
Q5: What does the “05” suffix represent?
It signifies CSA, ATEX, and IECEx hazardous-area certification for use in explosive environments.
Q6: What type of sensing technology does this probe use?
It uses eddy-current non-contact sensing to measure shaft displacement and vibration.
Q7: Is this probe compatible with 3300 XL Proximitor® units?
Yes, it is designed to work with 3300 XL extension cables and Proximitor® sensors as a calibrated system.
Q8: Can this probe withstand harsh operating conditions?
Yes, its stainless-steel construction, chemical-resistant PPS tip, and hazardous-area approvals make it suitable for oil, heat, and high vibration environments.
