Technical Specifications
| Item | Specification |
|---|---|
| Model | 330101-00-28-05-02-05 |

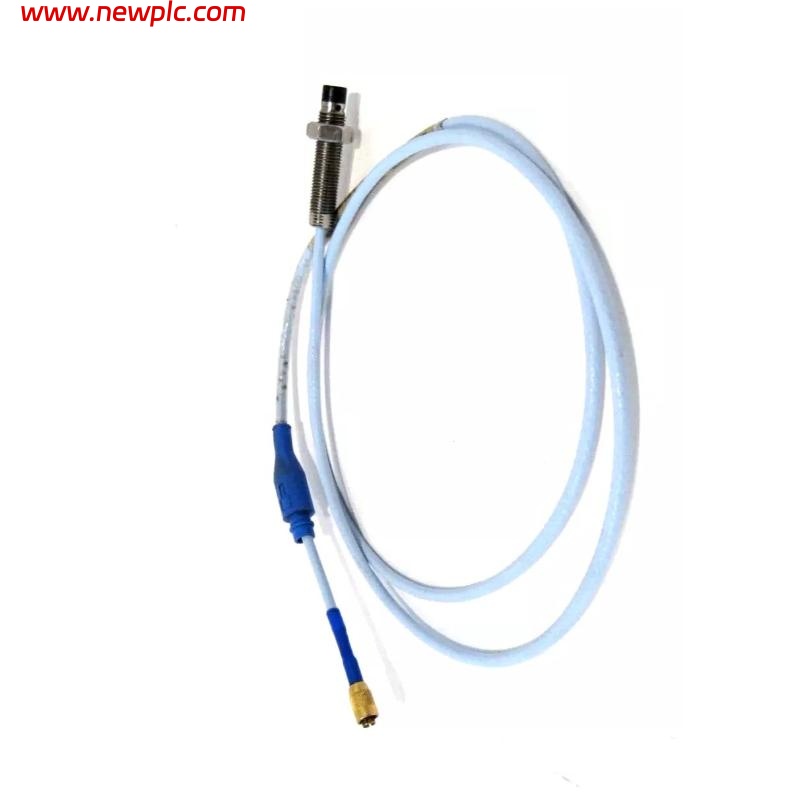

| Type | 8 mm Eddy-Current Proximity Probe (3300 XL Series) |
| Thread Size | 3/8-24 UNF |
| Unguarded Length | 0 in (Code “00”) |
| Probe Case Length | 2.8 in (Code “28”) |
| Cable Length | 0.5 m (Code “05”) |
| Connector Type | 02 – ClickLoc Mini-Coax Connector |
| Approval Option | 05 – Special certification/approval version |
| Measurement Principle | Non-contact eddy-current displacement measurement |
| Linear Measurement Range | 0.25 mm to 2.3 mm (typical) |
| Sensitivity | 7.87 V/mm (≈200 mV/mil typical) |
| Recommended Gap | –9 V nominal (≈1.27 mm) |
| Front-End Material | PPS engineering polymer |
| Housing Material | Stainless steel |
| Operating Temperature | –52 °C to +177 °C |
| System Length Capability | Up to 305 m (1000 ft) with extension cable and Proximitor |
| Compatible Proximitor | 3300 XL Proximitor Sensor |
| Applications | Shaft vibration, rotor displacement and position monitoring |
| Dimensions | Probe tip diameter 8 mm; probe case length 2.8 in |
| Weight | Approx. 0.22–0.28 kg |
FAQ
FAQ
Q1: What is the main function of the 330101-00-28-05-02-05 probe?
It measures shaft vibration, rotor position, and displacement in rotating machinery.
Q2: What does the “28” in the model number indicate?
It specifies a probe case length of 2.8 inches.
Q3: What does the “05” at the end of the model number represent?
It designates a special certification or approval variant.
Q4: What connector type is used for this probe?
It uses the ClickLoc mini-coax connector, which provides secure locking and stable signal integrity.
Q5: Which Proximitor is compatible with this probe?
It pairs with the 3300 XL Proximitor Sensor for calibrated system performance.
Q6: Can this probe be used in high-temperature industrial environments?
Yes, it operates reliably from –52 °C to +177 °C.
Q7: What is the typical linear measurement range of this probe?
It delivers accurate displacement measurement from 0.25 mm to 2.3 mm.
Q8: Is the probe suitable for long cable system configurations?
Yes, the complete system can support lengths up to 305 m (1000 ft).
