Technical Specifications
| Item | Specification |
|---|---|
| Model | 330101-00-30-10-11-CN |

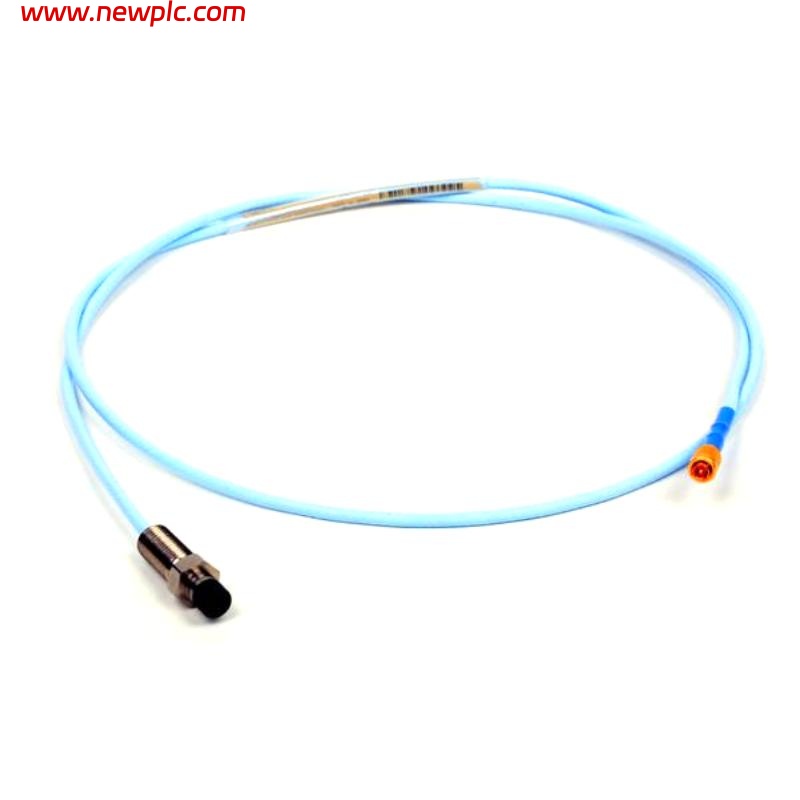

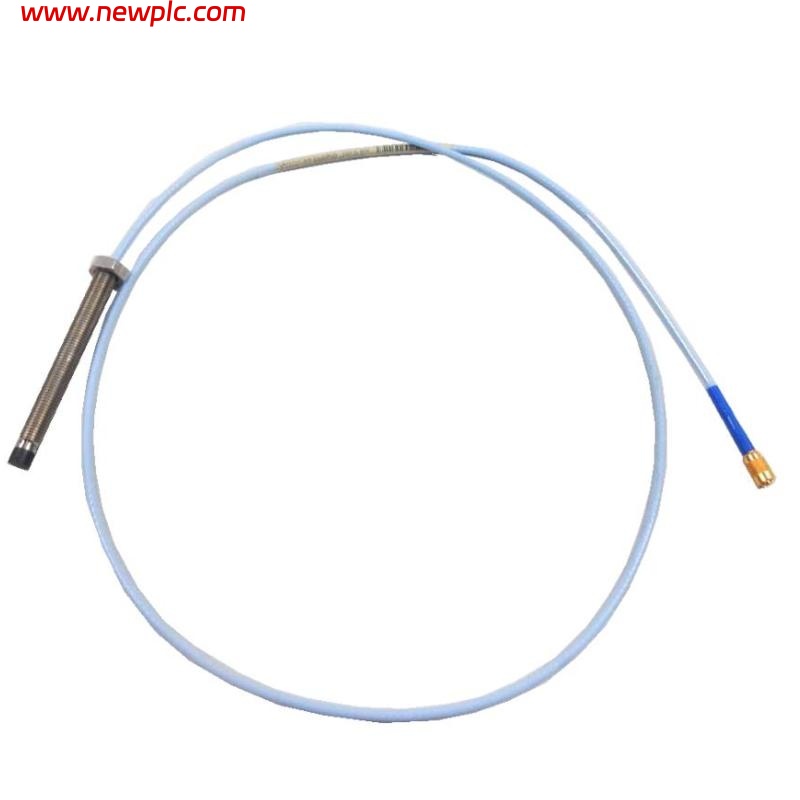

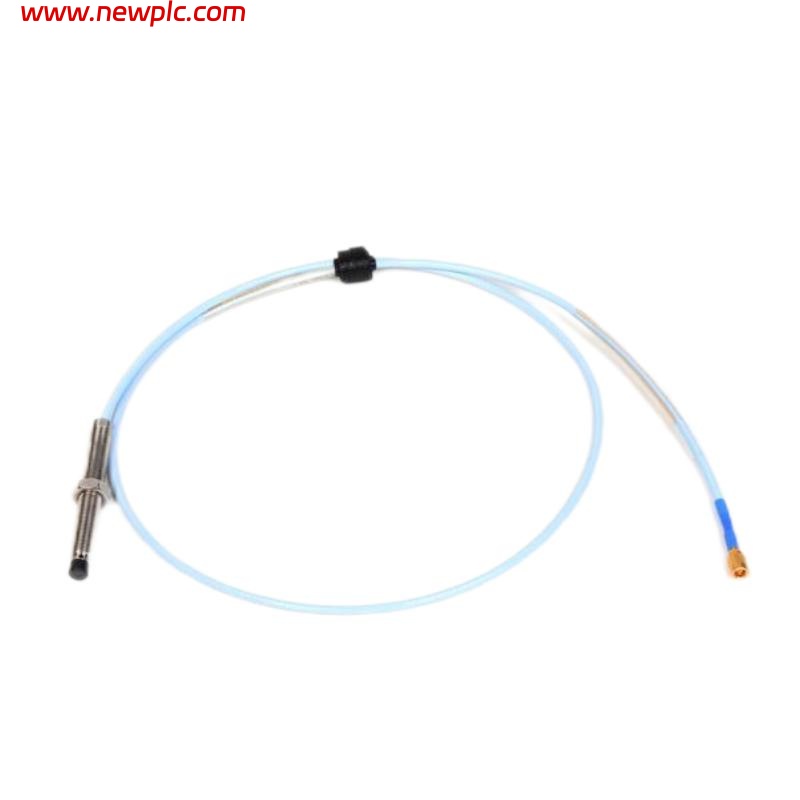

| Type | 8 mm Eddy-Current Proximity Probe (3300 XL Series) |
| Thread Size | 3/8-24 UNF |
| Unguarded Length | 0 in (Code “00”) |
| Probe Case Length | 3.0 in (Code “30”) |
| Cable Length | 1.0 m (Code “10”) |
| Connector Type | 11 – Special or alternative connector option |
| Approval Option | CN – China-specific certification/label version |
| Measurement Principle | Non-contact eddy-current displacement measurement |
| Linear Measurement Range | 0.25 mm to 2.3 mm (typical) |
| Sensitivity | 7.87 V/mm (≈200 mV/mil typical) |
| Recommended Gap | –9 V nominal (≈1.27 mm) |
| Front-End Material | PPS engineering polymer |
| Housing Material | Stainless steel |
| Operating Temperature | –52 °C to +177 °C |
| System Length Capability | Up to 305 m (1000 ft) with extension cable and Proximitor |
| Compatible Proximitor | 3300 XL Proximitor Sensor |
| Applications | Shaft vibration, rotor displacement, and position monitoring |
| Dimensions | Probe tip diameter 8 mm; probe case length 3.0 in |
| Weight | Approx. 0.36 kg |
FAQ
FAQ
Q1: What is the primary function of the 330101-00-30-10-11-CN probe?
It measures shaft vibration, rotor position, and displacement in rotating machinery.
Q2: What does the “30” in the model number indicate?
It specifies a probe case length of 3.0 inches.
Q3: What does the “10” indicate in the model number?
It represents a 1.0-meter integral cable length.
Q4: What does the connector code “11” signify?
It denotes a special or alternative connector configuration for specific system requirements.
Q5: What does the “CN” suffix mean?
It indicates a China-market version with corresponding labeling or compliance.
Q6: Which Proximitor is compatible with this probe?
It is fully compatible with 3300 XL Proximitor Sensors.
Q7: What is the linear measurement range?
Approximately 0.25 mm to 2.3 mm.
Q8: Can this probe operate in harsh industrial environments?
Yes, the stainless-steel housing and PPS tip allow reliable performance in oil, vibration, and high-temperature conditions.
