Technical Specifications
| Parameter | Value |
|---|---|

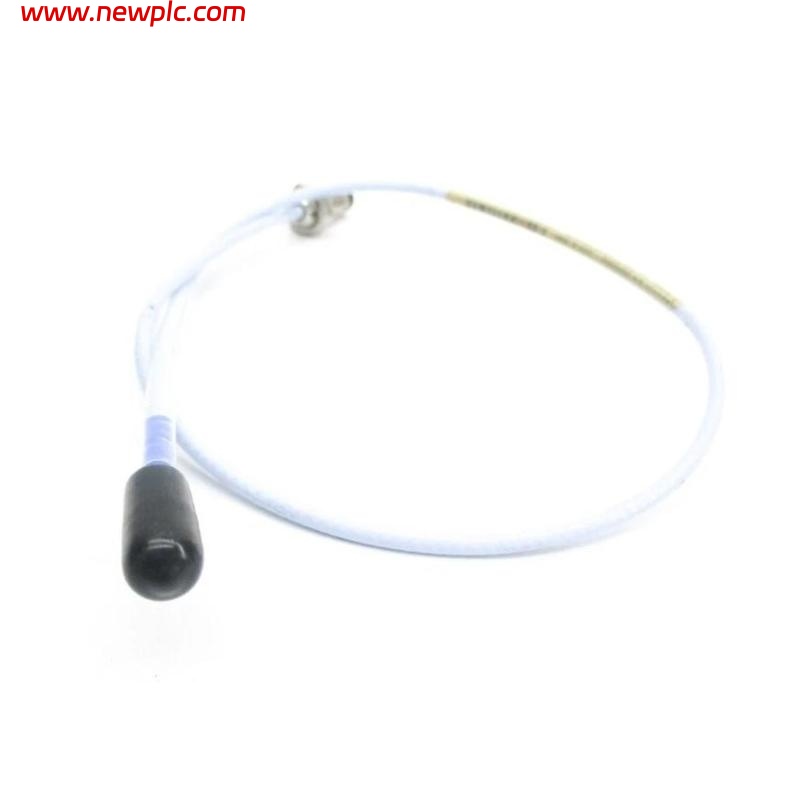

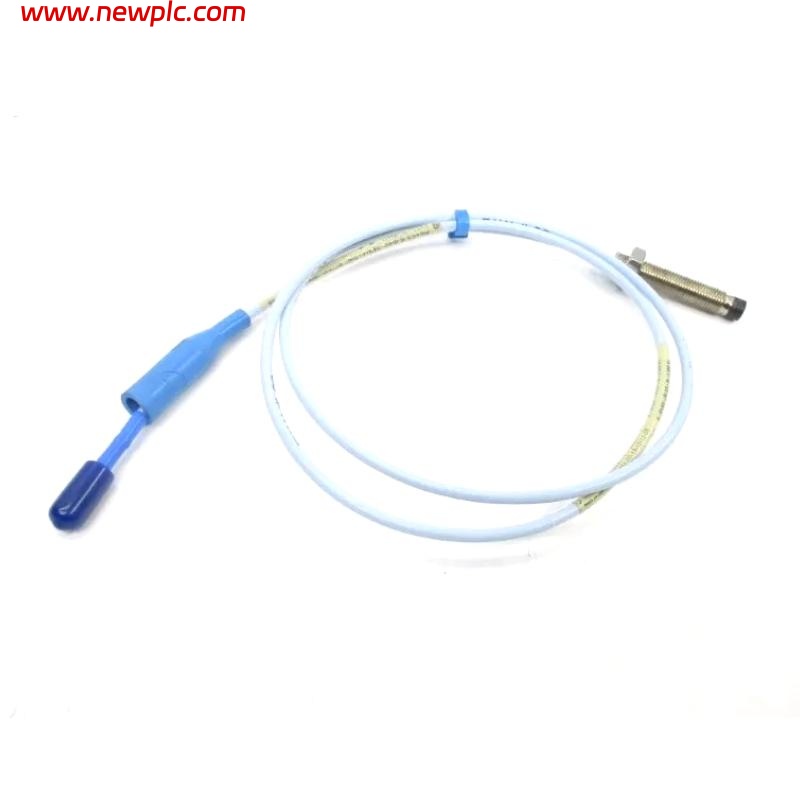

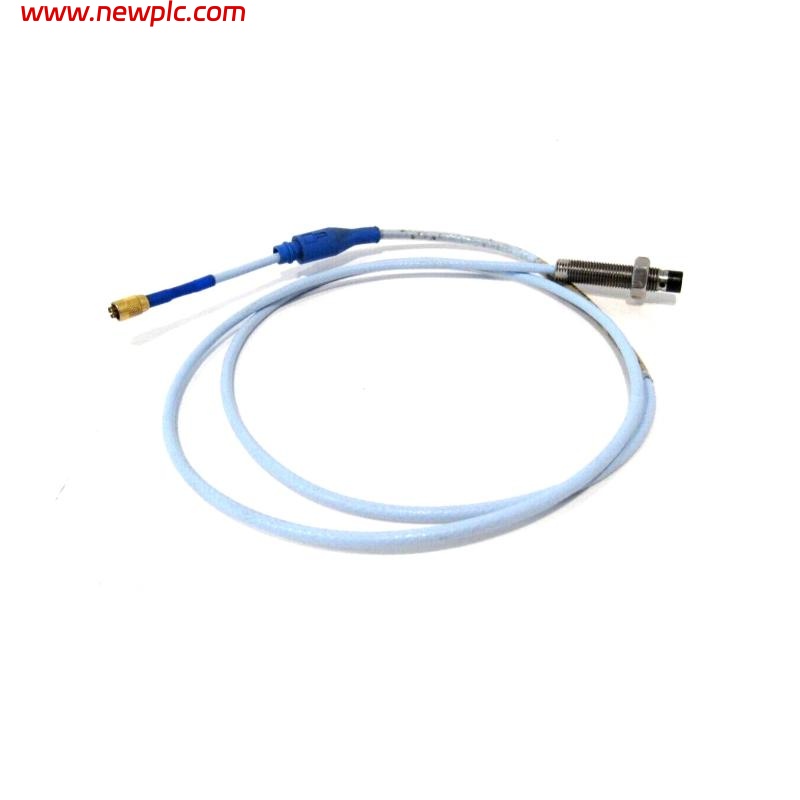

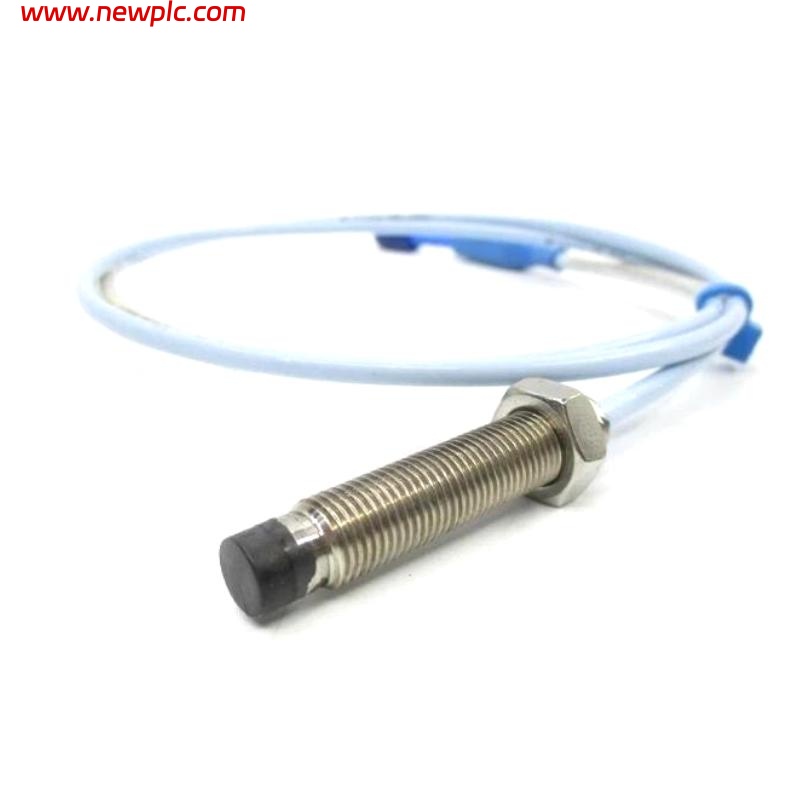

| Model | Bently Nevada 330101-00-36-10-02-05 3300 XL 8 mm Proximity Probe |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Probe Tip Diameter | 8.0 mm |
| Probe Case Material | AISI 303 or 304 Stainless Steel |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Cable Type | 75Ω triaxial, FEP insulated |
| Connector Type | Miniature coaxial ClickLoc |
| Maximum Temperature | +177°C (standard) / +218°C (ETR probe tip) |
| Minimum Temperature | -52°C |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Output Scale Factor | 7.87 V/mm ±5% |
| Frequency Response | 0–10 kHz (+0, -3 dB) |
| Recommended Shaft Diameter | ≥76.2 mm (3 in) |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Tensile Strength | 330 N (probe case to lead) |
| Approvals | CSA, ATEX, IECEx |
FAQ
FAQ
Q1: What is the total length of this probe?
A1: The total length is 1.0 meter.
Q2: What is the weight of the probe?
A2: The probe weighs approximately 0.323 kg.
Q3: What is the recommended gap setting?
A3: The recommended gap is 1.27 mm (50 mils).
Q4: What is the linear measurement range?
A4: The linear range is 2 mm (80 mils).
Q5: What is the maximum operating temperature of the probe?
A5: The standard probe can withstand up to 177°C, and the ETR version up to 218°C.
Q6: What is the output scale factor of the probe?
A6: The output scale factor is 7.87 V/mm (200 mV/mil) with ±5% error.
Q7: What type of cable does the probe use?
A7: It uses a 75Ω triaxial FEP insulated cable.
Q8: What is the recommended minimum shaft diameter?
A8: The recommended minimum shaft diameter is 76.2 mm (3 inches).
