Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 330101-00-48-10-02-RU |

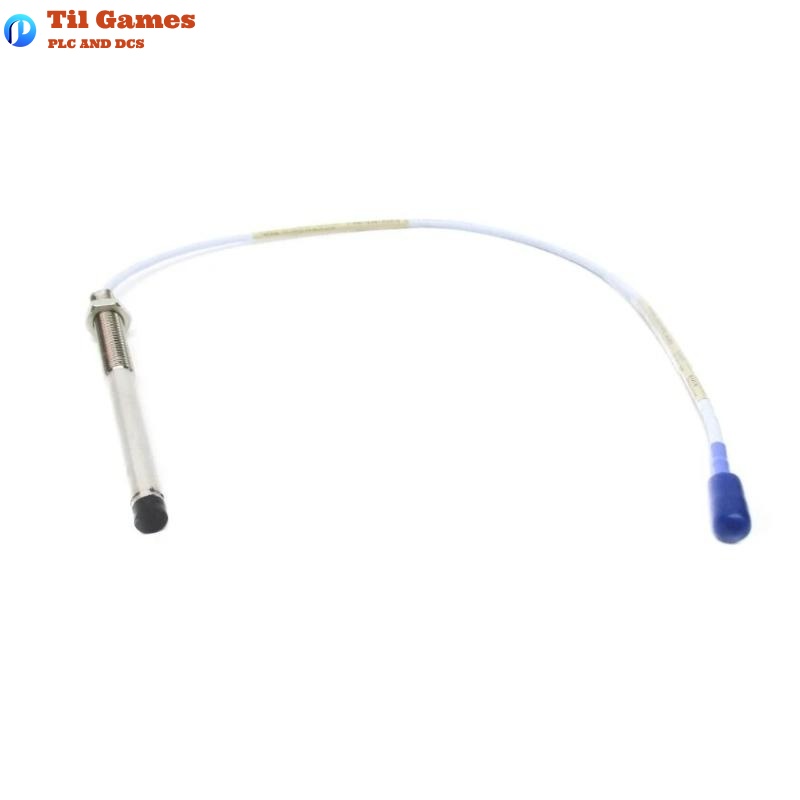

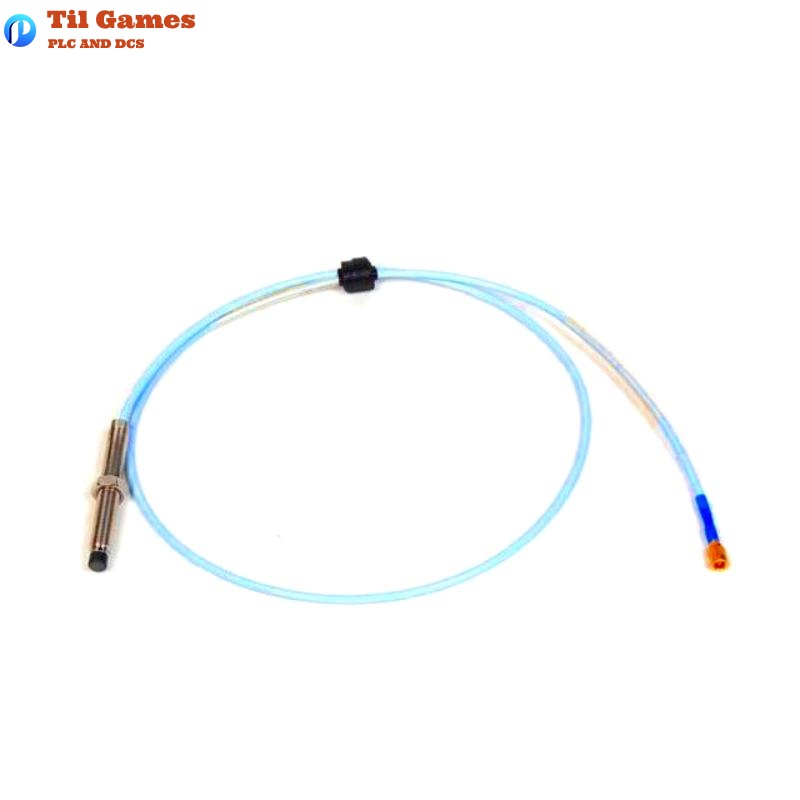

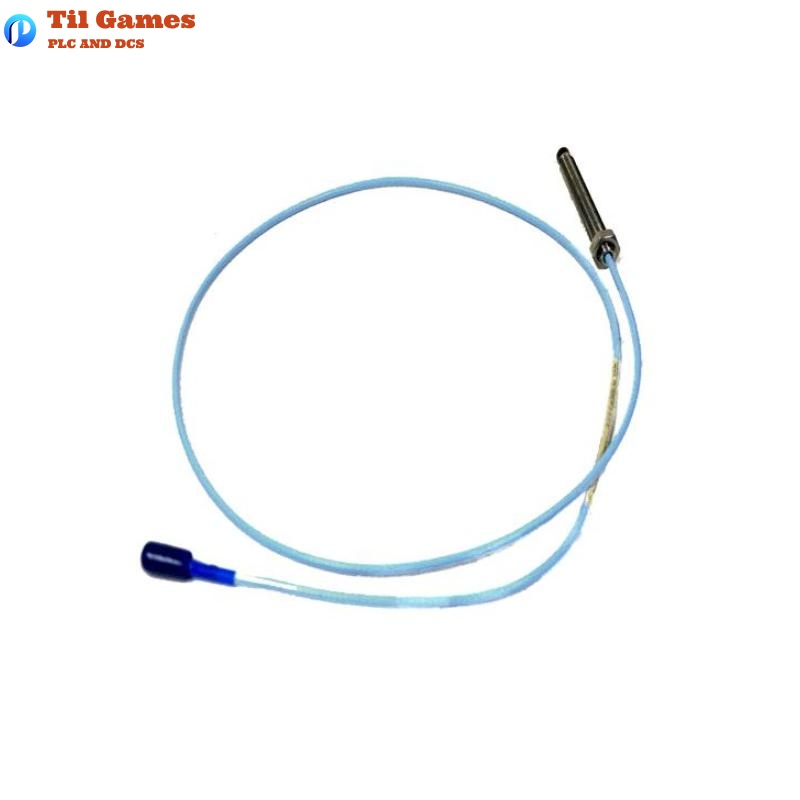

| Probe Type | 3300 XL 8 mm Proximity Probe |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Probe Tip Diameter | 8.0 mm (0.31 in) |
| Case Thread | 3/8-24 UNF |
| Recommended Gap | 1.27 mm (50 mils) |
| Linear Range | 0.25 to 2.3 mm (10 to 90 mils) |
| Incremental Scale Factor | 7.87 V/mm ±5% (200 mV/mil) for standard 1m system |
| DSL (Deviation Straight Line) | ±0.025 mm (±1 mil) |
| Frequency Response | 0–10 kHz, +0/-3 dB |
| Minimum Shaft Diameter | 50.8 mm (2 in), recommended ≥ 76.2 mm (3 in) |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Probe Case Material | AISI 303 or 304 stainless steel |
| Cable Type | 75Ω triaxial, FEP insulated |
| Cable Connector Type | ClickLoc miniature coaxial, gold-plated brass or beryllium copper |
| Maximum Tensile Strength | 330 N (probe body to lead), 270 N (lead to connector) |
| Operating Temperature (Probe) | -52°C to +177°C |
| Storage Temperature (Probe) | -52°C to +177°C |
| Relative Humidity | <3% ASF variation in 93% RH over 56 days |
| Extension Cable Capacitance | 69.9 pF/m |
| Minimum Cable Bend Radius | 25.4 mm (1 in) |
| Environmental Rating | Complies with API 670, CE certified, RoHS compliant |
FAQ
FAQ
Q1: What is the main application of this probe?
A1: It is primarily used for vibration and position measurements on fluid-film bearing machines, and for Keyphasor reference and speed measurements.
Q2: Is the 330101 probe compliant with API 670?
A2: Yes, the 3300 XL 8 mm system fully complies with the API 670 standard in terms of mechanical configuration, linear range, accuracy, and temperature stability.
Q3: Does the connector require special tools for installation?
A3: No, the ClickLoc connector is finger-tight with an audible click and requires no special tools.
Q4: Can this probe be used in high-temperature environments?
A4: The standard probe supports up to 177°C. For higher temperatures, the ETR version supports up to 218°C.
Q5: Are the probe, extension cable, and Proximitor sensor interchangeable?
A5: Yes, all 3300 XL system components are fully interchangeable without the need for bench calibration.
Q6: What is the maximum supported total length of the probe and extension cable?
A6: The system supports configurations up to 9 meters in total length.
Q7: What is the weight of the 330101 probe?
A7: The typical weight of the 1.0-meter probe is 0.323 kg.
Q8: Does the probe provide electromagnetic interference immunity?
A8: Yes, it has excellent RFI/EMI immunity and meets CE mark compliance without special shielding.
