Technical Specifications
| Parameter | Specification |
|---|---|

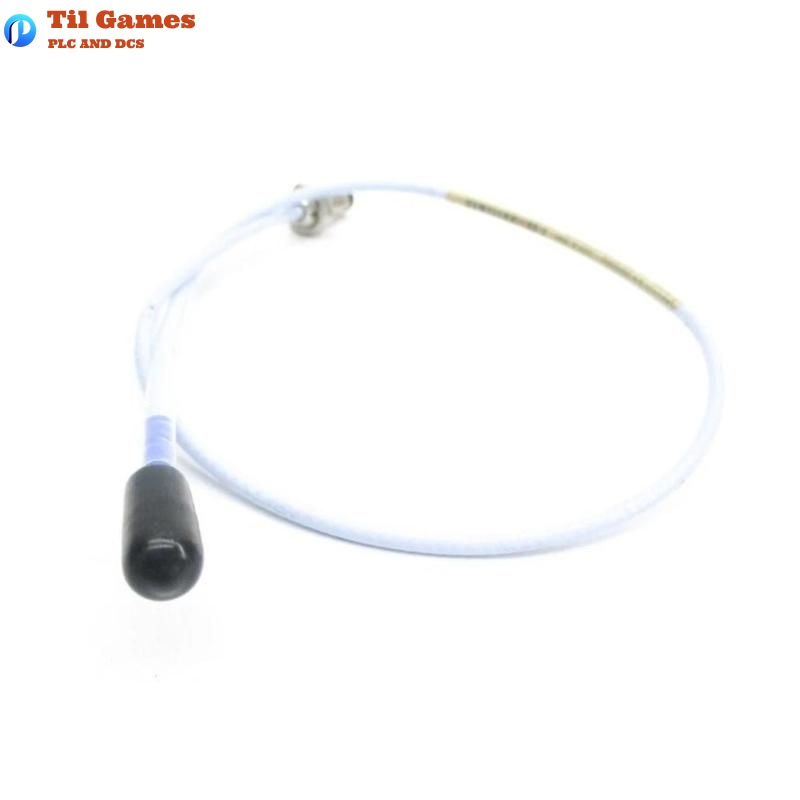

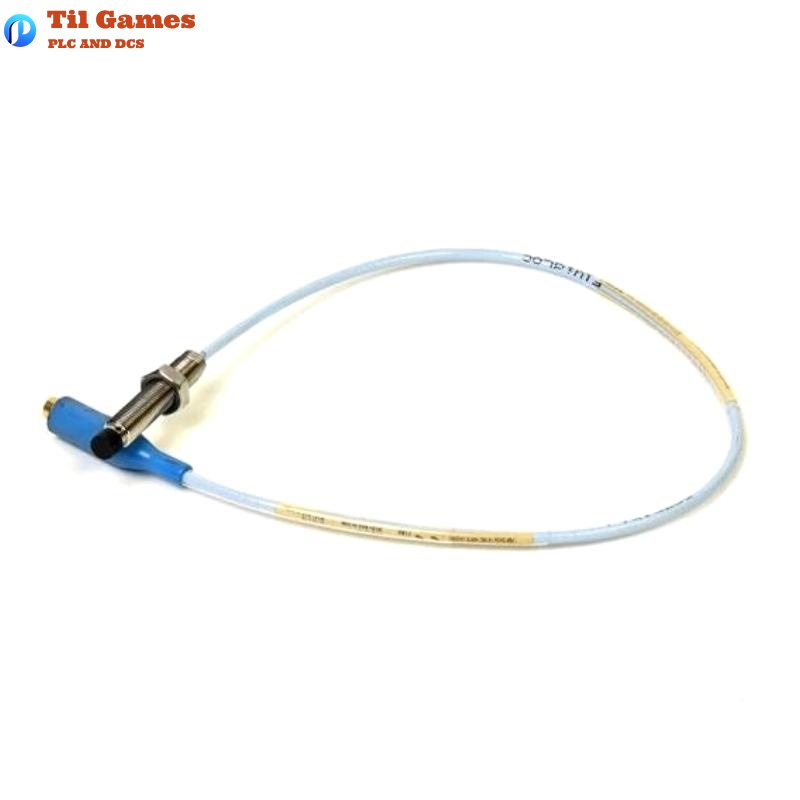

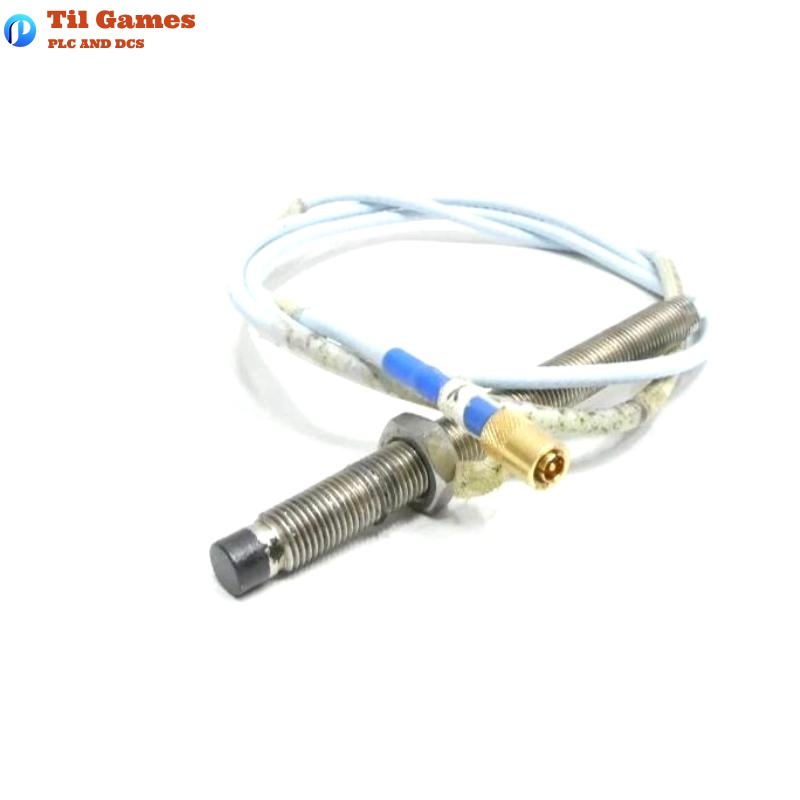

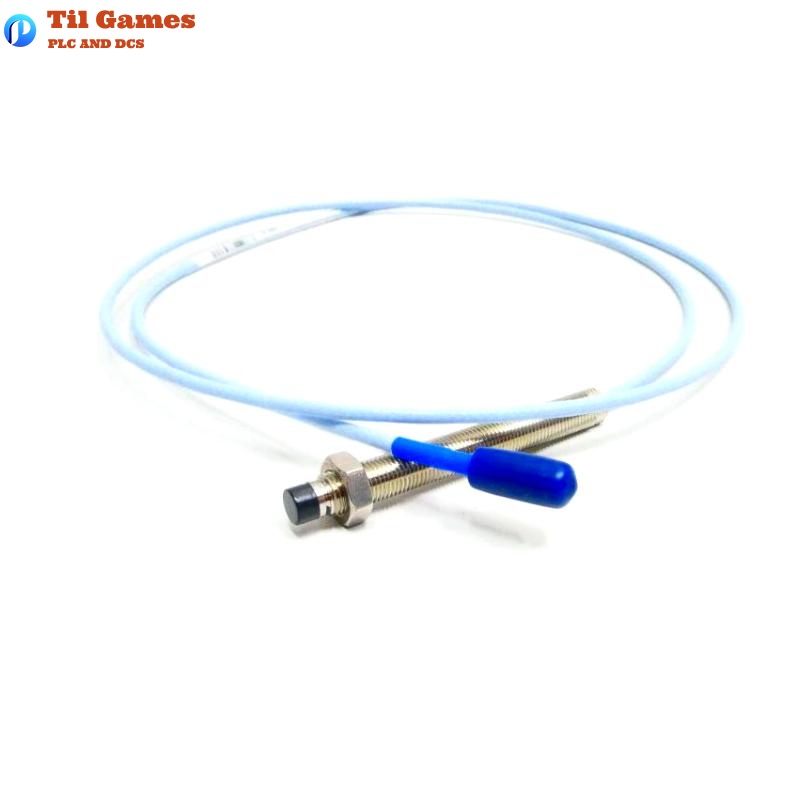

| Model Number | 330101-00-49-90-02-05 |
| Probe Diameter | 8 mm |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Linear Range | 2.0 mm (80 mils) |
| Recommended Gap Voltage | -9 VDC (approx. 1.27 mm / 50 mils) |
| Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) ±5% (1 m / 5 m systems), ±6.5% (9 m system) |
| Frequency Response | 0–10 kHz (+0, –3 dB) with up to 305 m field wiring |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 303/304 Stainless Steel |
| Cable Type | 75 Ω triaxial FEP-insulated (FluidLoc optional) |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Connector Type | Miniature coaxial ClickLoc (gold-plated brass or beryllium copper) |
| Power Supply (Proximitor Sensor) | –17.5 VDC to –26 VDC, 12 mA max |
| Operating Temp (Probe) | –52°C to +177°C (standard) / up to +218°C (ETR) |
| Operating Temp (Extension Cable) | –52°C to +177°C (standard) / up to +260°C (ETR) |
| Operating Temp (Proximitor Sensor) | –52°C to +100°C |
| Minimum Target Size | 15.2 mm (0.6 in) diameter (flat target) |
| Recommended Shaft Diameter | ≥ 76.2 mm (3 in) |
| System Compliance | API 670, CE, FCC Part 15, SIL 2/3, RoHS, ATEX, IECEx, cNRTLus approved |
FAQ
FAQ
Q1: What are the primary applications of the 330101-00-49-90-02-05 probe?
A1: This probe is used for shaft vibration, axial displacement, and Keyphasor signal monitoring in fluid-film bearing machines.
Q2: Is this probe compliant with API 670 standards?
A2: Yes, it fully meets the mechanical configuration, linear range, accuracy, and temperature stability requirements of API 670.
Q3: Are the 3300 XL components interchangeable with older systems?
A3: Yes, all 3300 XL 8 mm components are electrically and physically interchangeable with non-XL 3300 series 5 mm and 8 mm components.
Q4: How does the probe output relate to the measured distance?
A4: The output voltage is linearly proportional to the distance between the probe tip and the conductive surface.
Q5: Can the probe be used in high-temperature environments?
A5: Yes, the ETR version supports up to +218°C for the probe tip and +260°C for the cable.
Q6: Are special tools required for installation?
A6: No, the ClickLoc connectors are designed for finger-tight installation and do not require tools.
Q7: Does the probe cable feature leak protection?
A7: Yes, the optional FluidLoc cable prevents oil and fluid leakage through the cable.
Q8: What is the minimum target size for accurate measurements?
A8: The minimum flat target diameter is 15.2 mm (0.6 in), with a recommended shaft diameter of ≥76.2 mm (3 in).
