Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330101-00-52-10-02-CN |

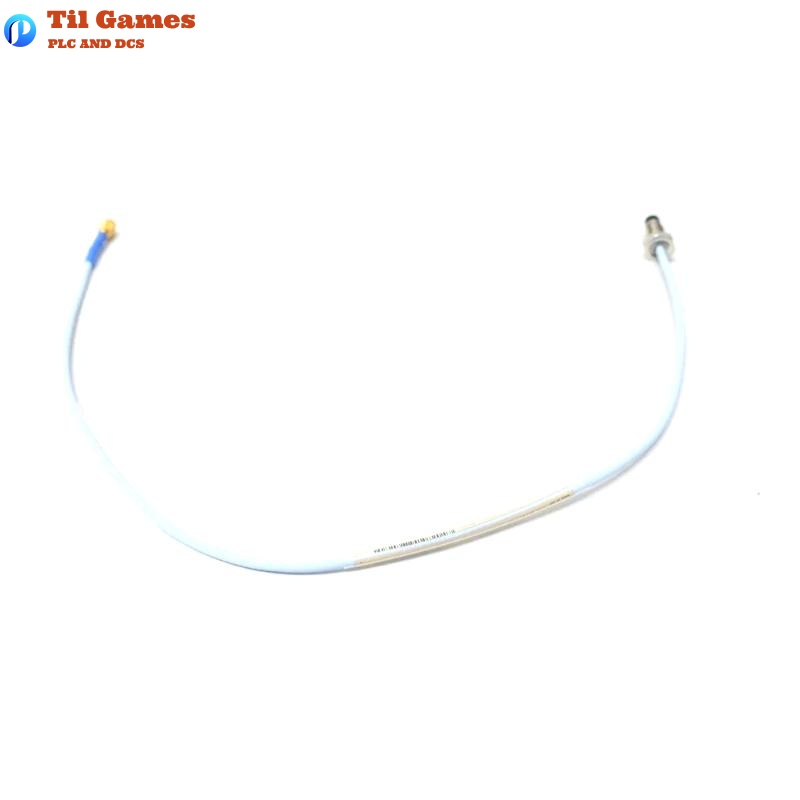

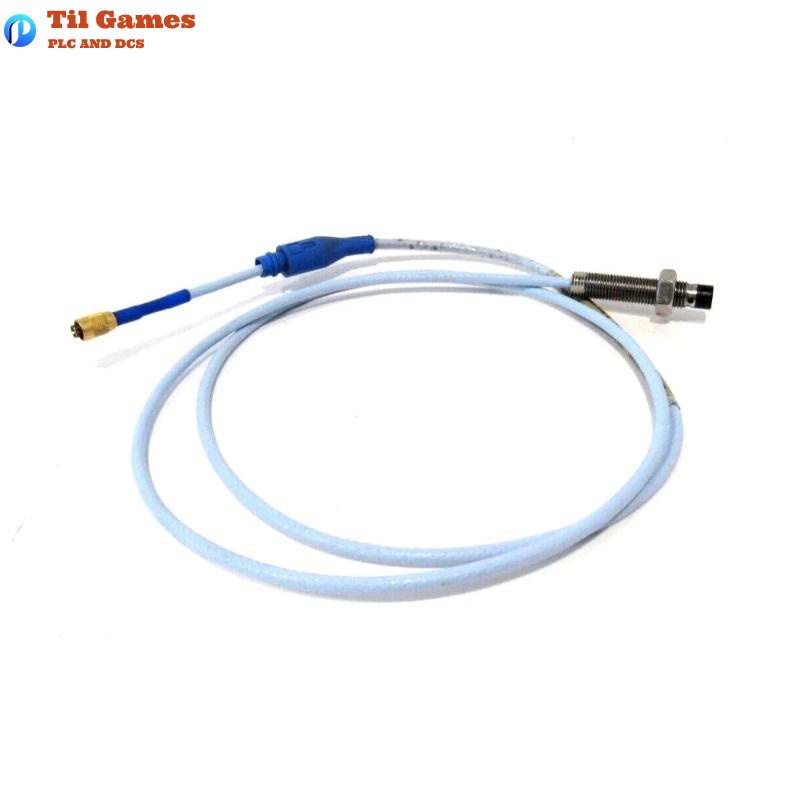

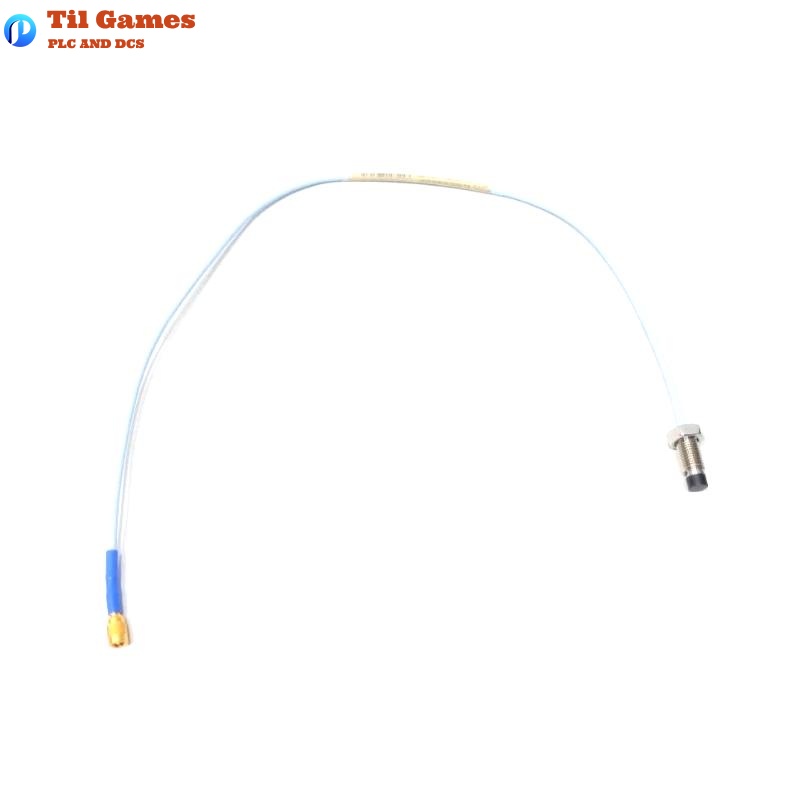

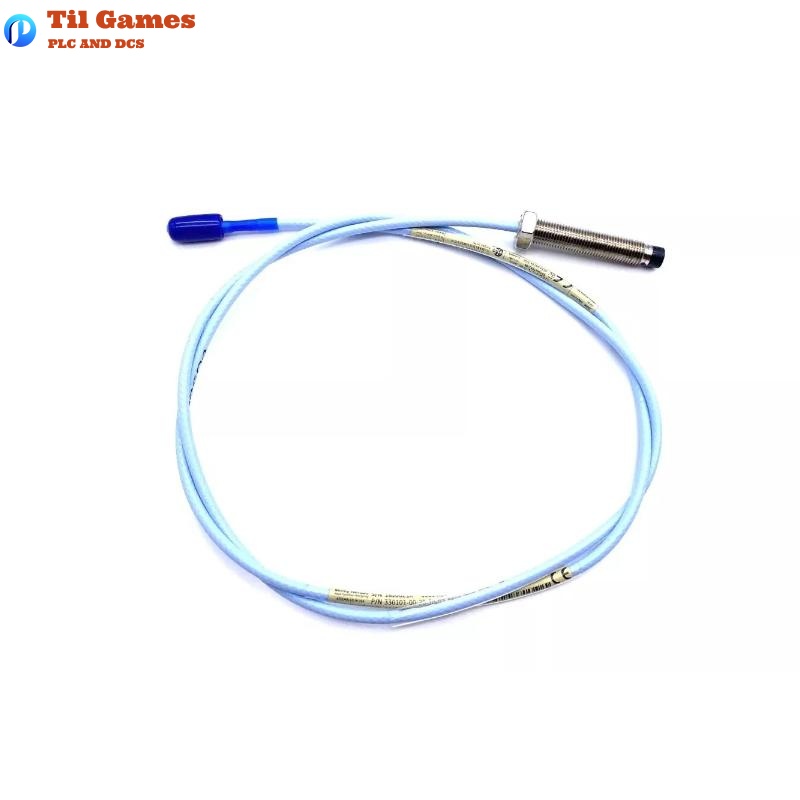

| Product Type | 3300 XL 8 mm Proximity Probe |
| Total Length | 1.0 meter |
| Total Weight | 0.323 kg |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel |
| Cable Type | 75Ω triaxial, FEP insulated |
| Connector Type | Miniature coaxial ClickLoc connector |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils), -9 Vdc |
| Output Scale Factor | 7.87 V/mm (200 mV/mil) ±5% (1m system) |
| Deviation from Straight Line (DSL) | < ±0.025 mm (±1 mil) (1m system) |
| Operating Temperature (Probe) | -52°C to +177°C |
| Storage Temperature (Probe) | -52°C to +177°C |
| Min. Target Size | 15.2 mm diameter |
| Recommended Shaft Diameter | ≥ 76.2 mm |
| Pressure Seal | Viton® O-ring |
| Humidity Resistance | <3% ASF change in 93% RH for 56 days |
| EMI/RFI Immunity | CE compliant, shielded conduit not required |
| Installation Torque (Recommended) | 11.2 N·m (100 in·lbf) for standard forward-mount probes |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Certifications | SIL 2, SIL 3, CSA, ATEX, IECEx, FCC, EMC, RoHS compliant |
FAQ
FAQ
Q1: What are the typical applications of the 330101-00-52-10-02-CN proximity probe?
A1: This probe is primarily used for vibration and position measurements on fluid-film bearing machines. It also supports Keyphasor reference and speed monitoring.
Q2: What is the linear measurement range of this probe?
A2: The linear range is from approximately 0.25 mm to 2.3 mm (10 mils to 90 mils), totaling 2 mm (80 mils).
Q3: What certifications does this product comply with?
A3: It complies with API 670, SIL 2/3, CSA, ATEX, IECEx, FCC, EMC, and RoHS standards.
Q4: What is the operating temperature range for the probe?
A4: The standard operating and storage temperature range for the probe is -52°C to +177°C.
Q5: Can the probe be used in environments with high electromagnetic interference?
A5: Yes, it has excellent RFI/EMI immunity and is CE compliant without the need for special shielding or metallic conduit.
Q6: Can individual components be replaced or do they require full system replacement?
A6: The 3300 XL system allows full interchangeability of probes, extension cables, and Proximitor sensors—no need for matched sets.
Q7: Does the product provide any leak prevention features?
A7: Yes, an optional FluidLoc cable design is available to prevent fluid leakage through the cable.
Q8: What installation precautions should be taken with this probe?
A8: Ensure the recommended torque is applied (11.2 N·m), maintain a minimum cable bend radius of 25.4 mm, and avoid placing probes too close to each other to minimize crosstalk.
