Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Bently Nevada 330101-00-53-10-02-CN |

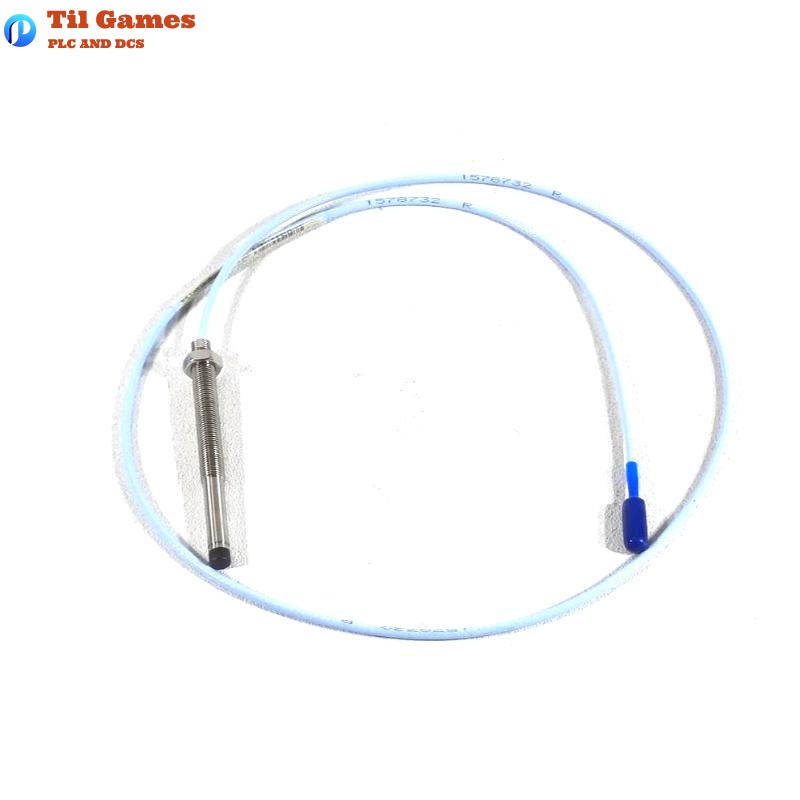

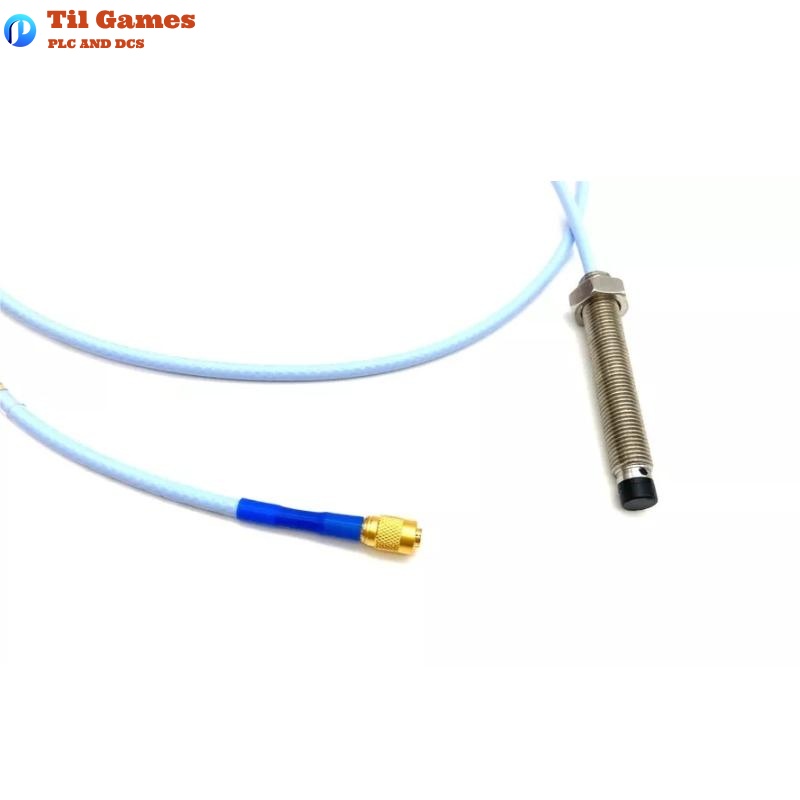

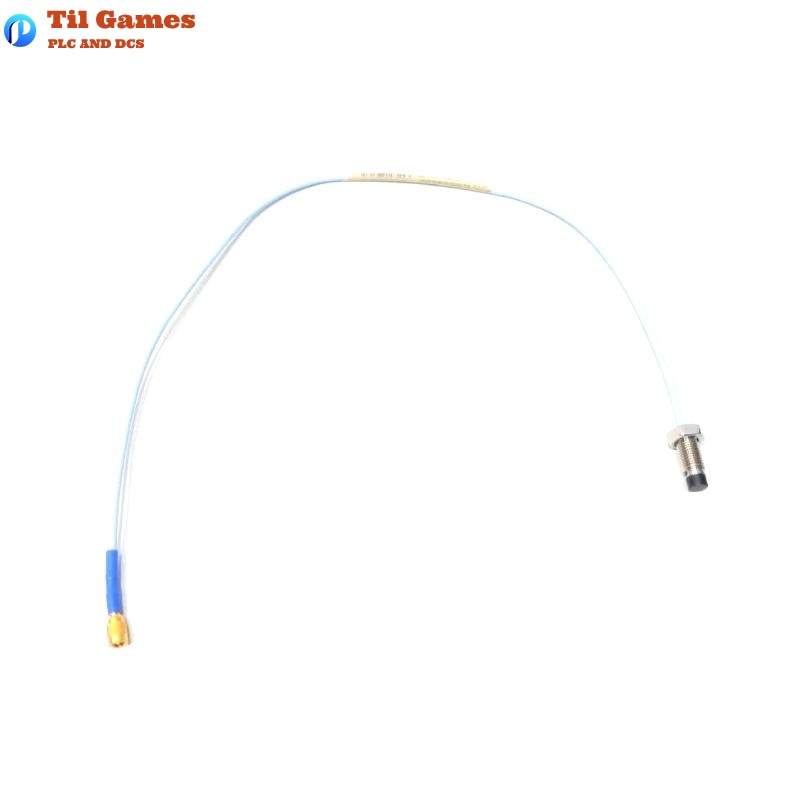

| System Type | 3300 XL 8 mm Proximity Probe |
| Total Length | 1.0 meter |
| Weight | 0.323 kg (approx. 11.4 oz) |
| Probe Tip Diameter | 8.0 mm (0.31 in) |
| Cable Type | 75Ω triaxial FEP insulated |

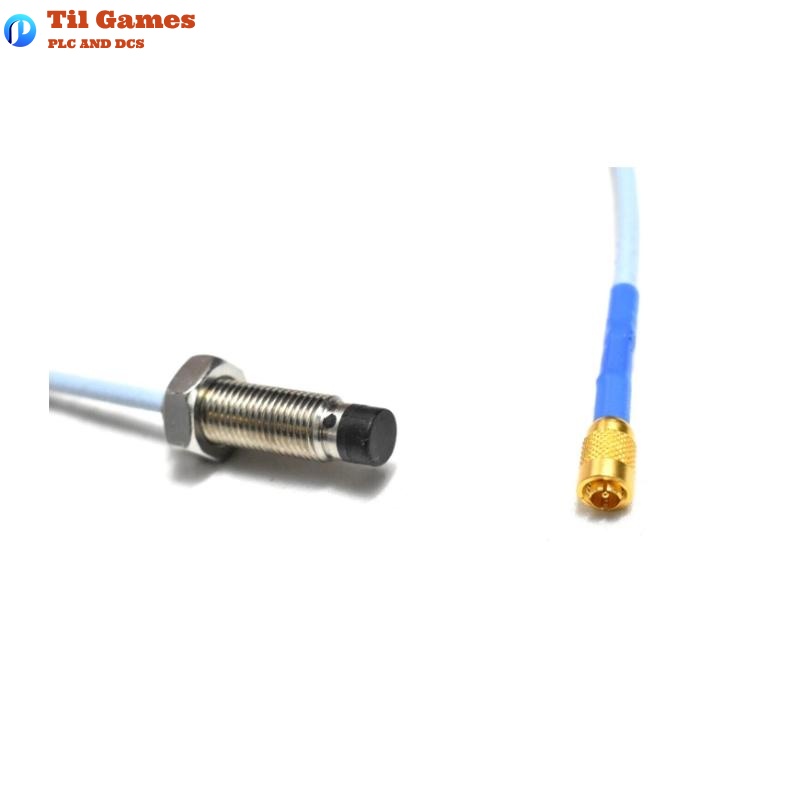

| Connector | Miniature coaxial ClickLoc, gold-plated brass |
| Probe Material | AISI 303/304 stainless steel |
| Tip Material | Polyphenylene sulfide (PPS) |
| Operating Temperature (Probe) | -52°C to +177°C (-62°F to +350°F) |
| Storage Temperature (Probe) | -52°C to +177°C (-62°F to +350°F) |
| Pressure Sealing | Viton® O-ring between probe tip and case |
| Probe Mounting Thread | 3/8-24 UNF-2A |
| Max Thread Engagement | 0.563 in (14.3 mm) |
| Maximum Torque (Standard Probe) | 33.9 N·m (300 in·lbf) |
| Recommended Torque | 11.2 N·m (100 in·lbf) |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Probe Output Sensitivity | 7.87 V/mm (200 mV/mil) ±5% (1m system) |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Recommended Gap Setting | -9 Vdc (approx. 1.27 mm or 50 mils) |
| Frequency Response | 0–10 kHz, +0, –3 dB |
| Probe Cable Tensile Strength | 330 N (75 lbf) |
| Vibration Measurement | Radial and axial vibration on fluid-film bearing machinery |
| Certifications | CE, RoHS, FCC Part 15, SIL2/SIL3, ATEX, IECEx |
FAQ
FAQ
Q1: What type of measurements is this probe suitable for?
A1: It is suitable for both static (position) and dynamic (vibration) measurements, including Keyphasor reference and speed detection.
Q2: Is this probe model interchangeable with other series?
A2: Yes, the 3300 XL 8 mm probe is fully interchangeable with non-XL 3300 5 mm and 8 mm components.
Q3: Can this probe operate in high-temperature environments?
A3: The standard version operates up to 177°C. For higher temperatures, the Extended Temperature Range (ETR) version supports up to 218°C for the probe and 260°C for the cable.
Q4: Does this probe comply with API 670?
A4: Yes, the 3300 XL 8 mm 5-meter system meets all API 670 mechanical configuration, linear range, accuracy, and temperature stability requirements.
Q5: What should be noted during installation?
A5: Use 3/8-24 UNF threads, observe a max thread engagement of 14.3 mm, and apply 11.2 N·m recommended torque for proper installation.
Q6: What is the tensile strength of the probe cable?
A6: The probe case to cable junction supports 330 N; the lead to extension cable connector supports up to 270 N.
Q7: What is the recommended spacing for installation?
A7: At least 40 mm spacing for axial and 38 mm for radial measurements is recommended to reduce cross-talk.
Q8: Is the probe suitable for high humidity environments?
A8: Yes, it passes IEC 68-2-3 tests with less than 3% ASF change at 93% humidity for 56 days.
