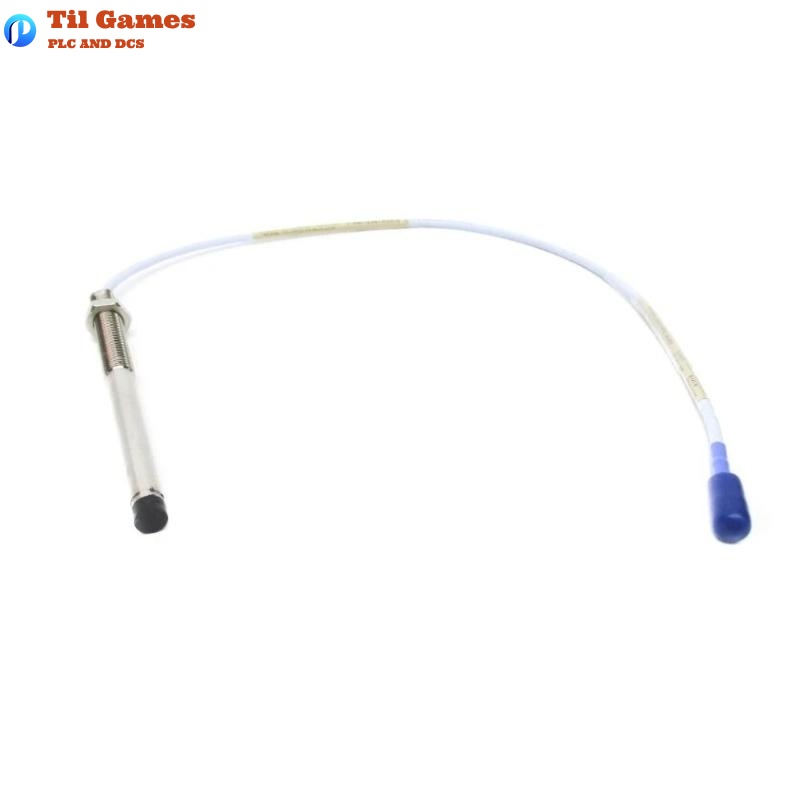

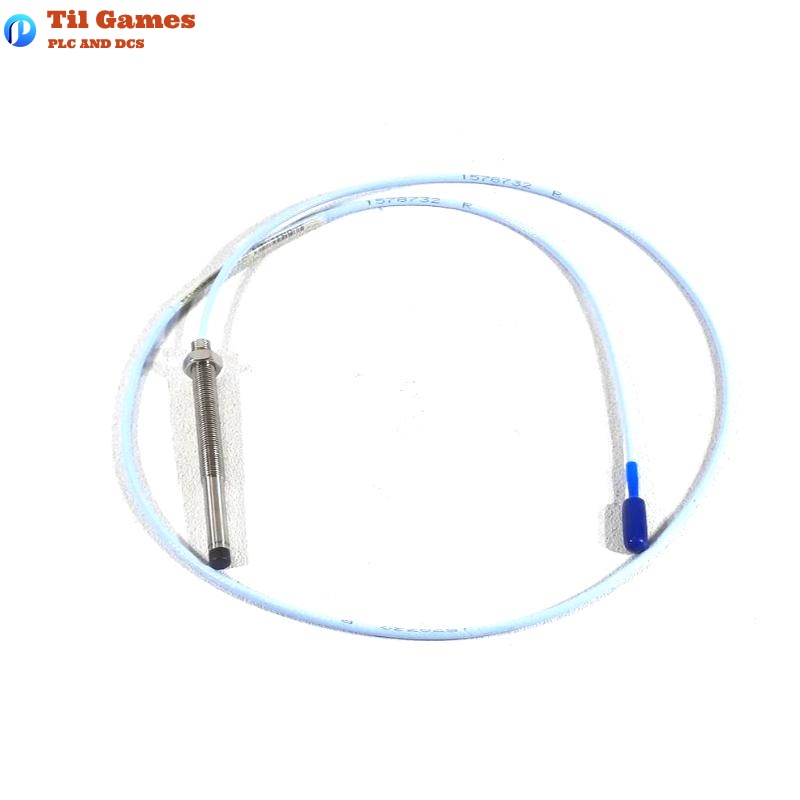

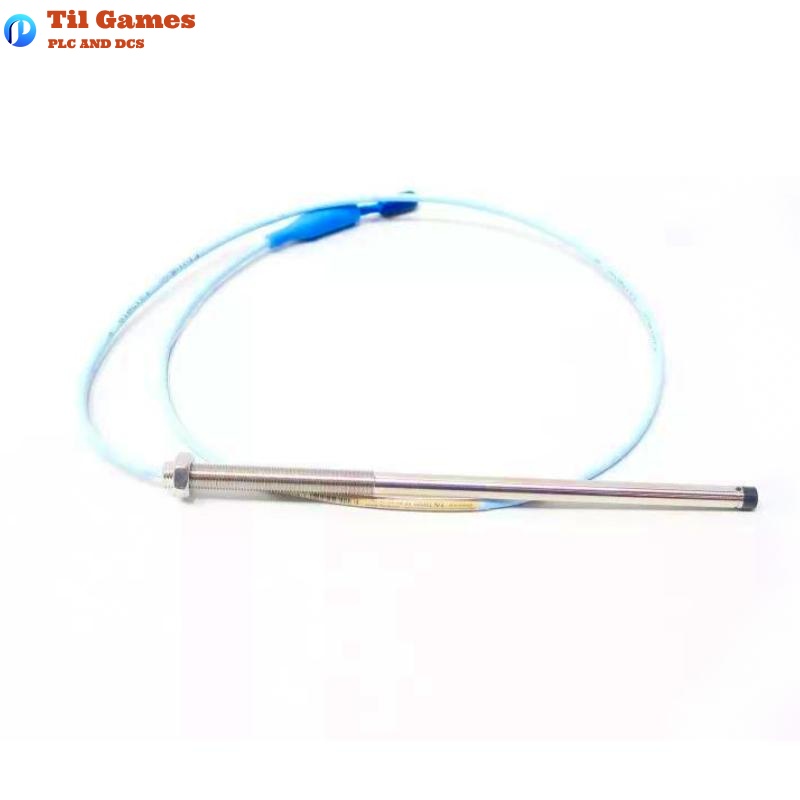

Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330101-00-63-20-12-05 |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel |
| Probe Cable Type | 75Ω triaxial, FEP insulated |
| Connector Type | Miniature coaxial ClickLoc (gold-plated) |
| Cable Total Length | 2.0 meters |
| Total System Weight | 0.646 kg (approx.) |
| Recommended Gap Setting | -9 VDC (approx. 1.27 mm or 50 mils) |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) ±5% to ±6.5% depending on system length |
| Deviation from Best Fit Line | ≤ ±0.025 mm (1 mil) or ±0.038 mm (1.5 mil) |
| Frequency Response | 0 to 10 kHz, +0/-3 dB |
| Minimum Shaft Diameter | 50.8 mm (2 in), recommended ≥ 76.2 mm (3 in) |
| Environmental Temp. Range (Probe) | -52°C to +177°C (Standard) / up to +218°C (ETR tip), +260°C (ETR cable) |
| Proximitor Sensor Operating Temp | -52°C to +100°C |
| Cable Minimum Bend Radius | 25.4 mm (1 in) |
| Humidity Tolerance | ≤3% change in ASF in 93% RH over 56 days |
| Probe Pull Strength | 330 N (75 lbf) tip-to-case, 270 N (60 lbf) case-to-extension |
| Electrical Input | -17.5 VDC to -26 VDC, max 12 mA |
| Output Resistance | 50 Ω |
FAQ
FAQ
Q1: What types of measurements is this proximity probe suitable for?
A1: It is suitable for both static (position) and dynamic (vibration) measurements, especially on fluid-film bearing machines such as turbines and compressors.
Q2: Is the 330101-00-63-20-12-05 model interchangeable with other probe models?
A2: Yes, it is electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm system components.
Q3: What is the recommended minimum shaft diameter for installation?
A3: The minimum shaft diameter is 50.8 mm (2 inches), with a recommended minimum of 76.2 mm (3 inches) to reduce signal cross-talk.
Q4: Is the total length of the probe fixed?
A4: This specific model has a total length of 2.0 meters, but other lengths from 0.5 to 9 meters are available depending on the configuration.
Q5: Can this model be used in high-temperature environments?
A5: Yes. The standard probe supports up to +177°C, and the Extended Temperature Range (ETR) version can operate up to +218°C for the tip and +260°C for the cable.
Q6: Does this product meet the API 670 standard?
A6: Yes, the 3300 XL 8 mm system complies with the API 670 standard in terms of mechanical design, linear range, accuracy, and temperature stability.
Q7: Do I need to calibrate the probe and extension cable together?
A7: No, all components in the 3300 XL system are fully interchangeable and factory calibrated, eliminating the need for matching or bench calibration.
Q8: What are the power supply requirements for the Proximitor Sensor?
A8: It requires a -17.5 VDC to -26 VDC power supply with a maximum current consumption of 12 mA.
