Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 330101-00-96-05-02-00 |

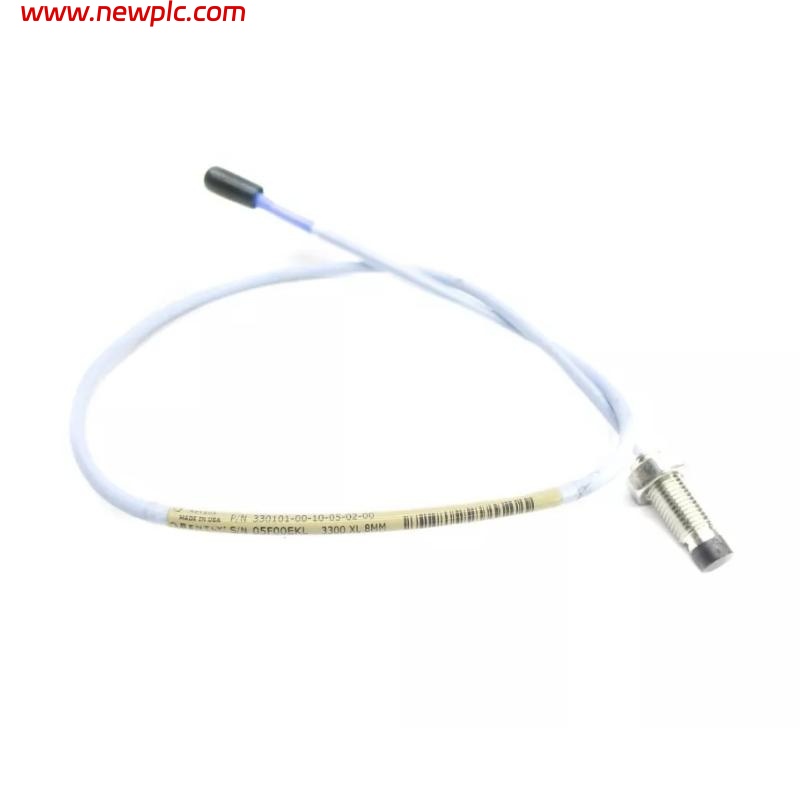

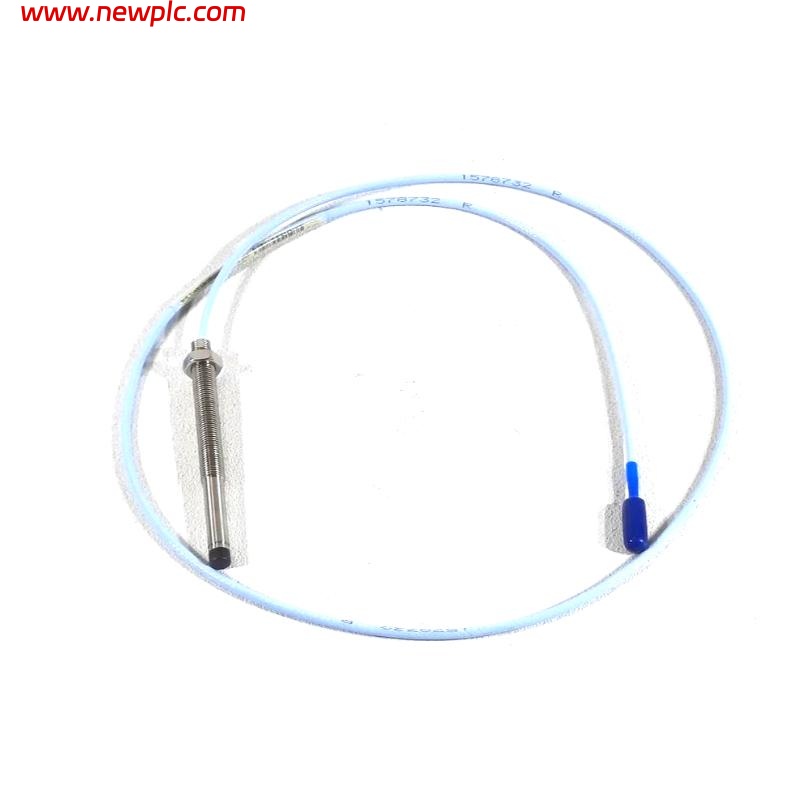

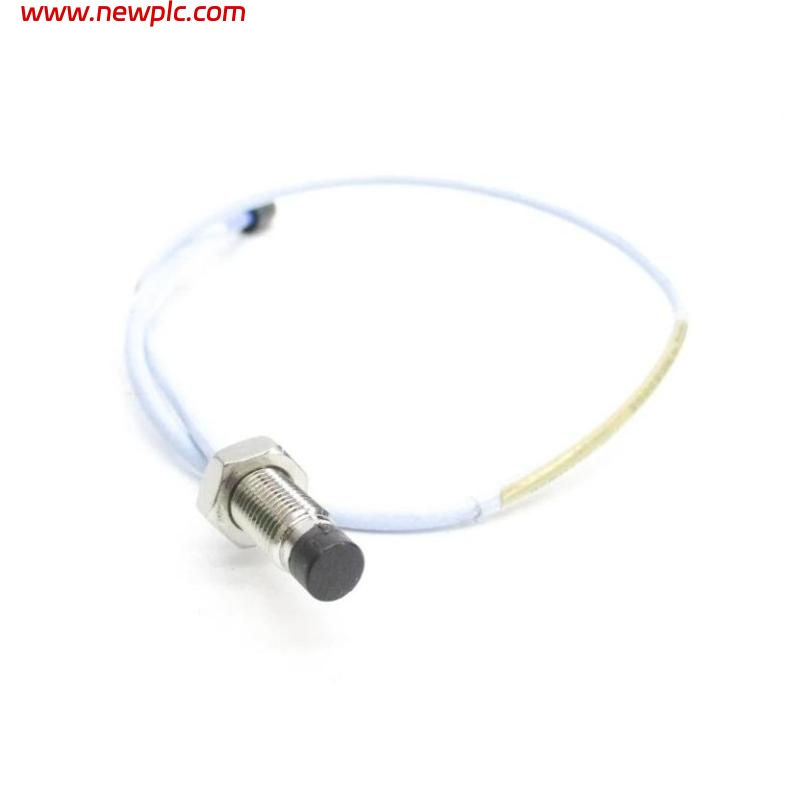

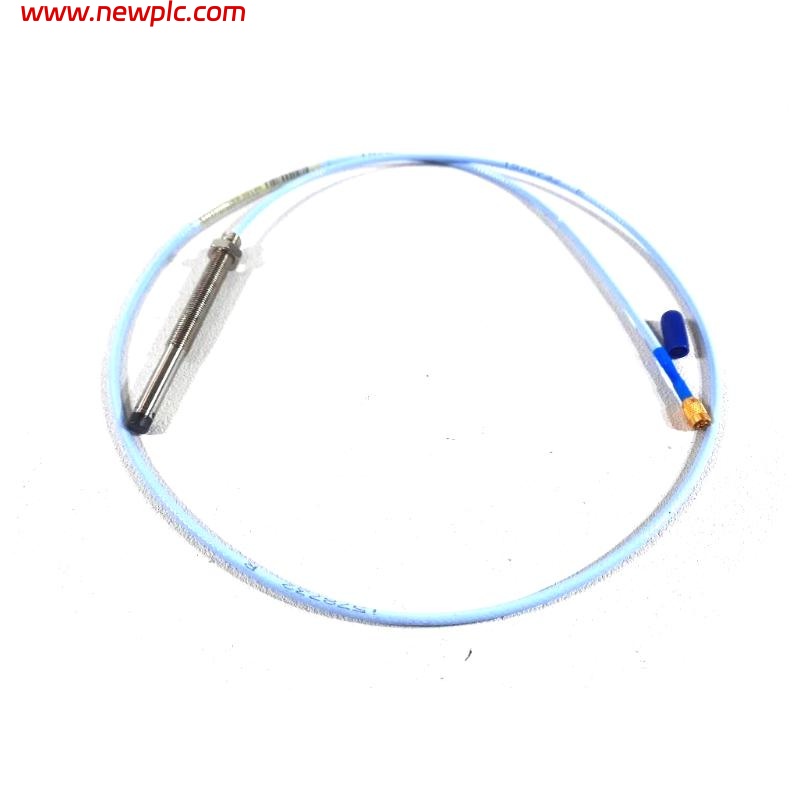

| Product Name | Bently Nevada 3300 XL 8 mm Proximity Probe |
| Probe Type | Non-armored, 3/8-24 UNF thread type |
| Dimensions | Probe tip diameter: 8 mm ; Overall case length: 9.6 in ; Total length: 0.5 metre |
| Connector & Cable-Type Option | Miniature coaxial ClickLoc connector, standard cable |
| Agency Approval Option | Not required |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Incremental Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | Up to 10 kHz typical |
| Operating Temperature Range | -52 °C to +177 °C (-62 °F to +350 °F) |
| Storage Temperature Range | -52 °C to +177 °C (-62 °F to +350 °F) |
| Weight | ≈ 0.65 kg |
| Shipping Weight | ≈ 3.0 kg |
| Case Material | AISI 303 or 304 stainless steel |
FAQ
FAQ
Q1: What is the purpose of the 330101-00-96-05-02-00 probe?
It measures shaft vibration, position, and displacement in rotating machinery with high precision.
Q2: What does “96-05” in the model number signify?
“96” represents the overall case length of 9.6 inches, and “05” indicates the total probe assembly length of 0.5 metre.
Q3: What does the “02-00” at the end of the part number indicate?
“02” specifies the ClickLoc connector and cable configuration, while “00” means no agency approval is required.
Q4: Which proximitor sensor is compatible with this probe?
It is designed to work with the Bently Nevada 3300 XL Proximitor Sensor for accurate and stable measurements.
Q5: Can this probe be used in harsh environments?
Yes, the stainless-steel housing ensures resistance to oil, dust, and vibration in demanding industrial settings.
Q6: What type of output does the probe provide?
It provides a voltage output proportional to shaft vibration and displacement.
Q7: What is the operating temperature range?
It operates reliably from -52 °C to +177 °C (-62 °F to +350 °F).
Q8: What are the physical dimensions and weight of this probe?
Probe tip diameter: 8 mm ; Overall case length: 9.6 in ; Total length: 0.5 metre ; Weight: ≈ 0.65 kg.
