Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 330101-02-12-10-02-00 |

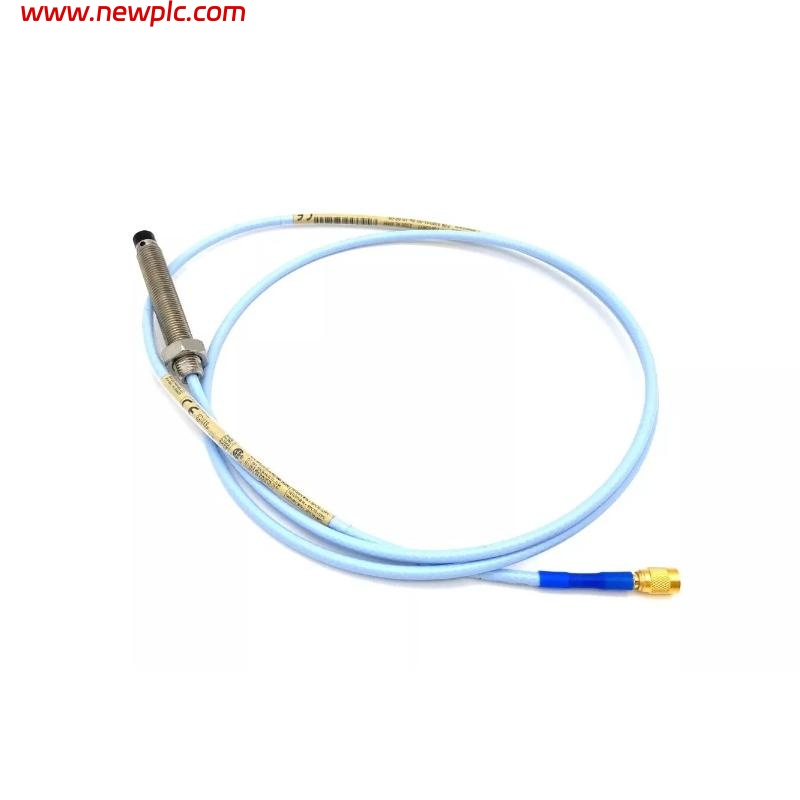

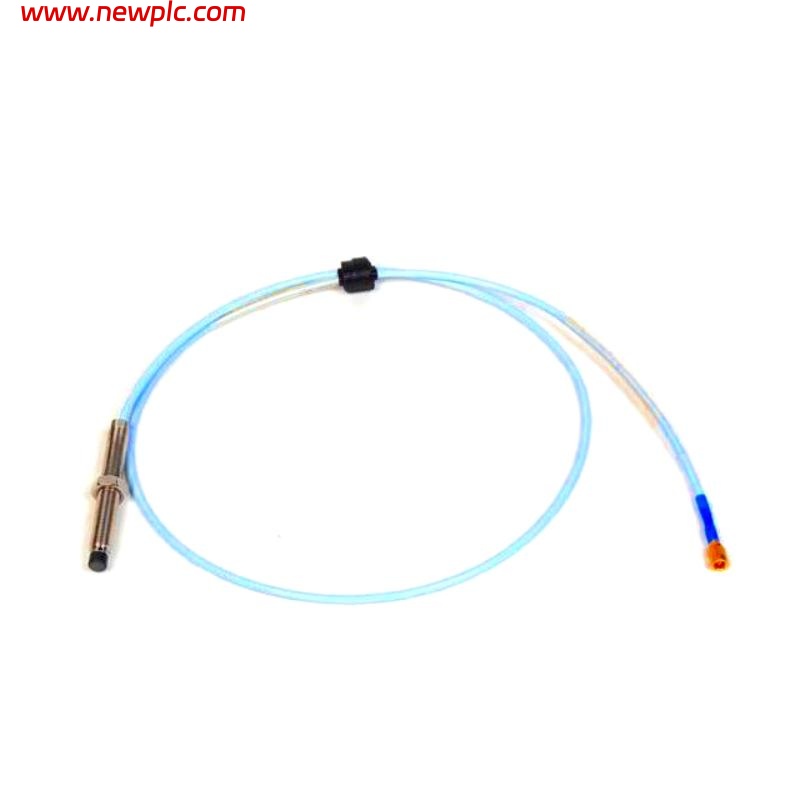

| Product Name | Bently Nevada 3300 XL Proximity Probe |
| Probe Tip Diameter | 8 mm |
| Dimensions | Probe tip diameter: 8 mm ; Overall case length: 12 in ; Total length: 1.0 metre |
| System Length Code | 12 = 12-inch case length |
| Cable Length Code | 10 = 1.0-metre total cable length |
| Connector Option | 02 = Reverse-polarity coaxial connector |
| Agency/Region Code | 00 = Standard global version |
| Linear Range | ±2.0 mm (±80 mils) |
| Sensitivity | 3.94 V/mm (100 mV/mil) |
| Frequency Response | 0–10 kHz typical |
| Operating Temperature Range | –35 °C to +177 °C |
| Weight | ≈ 0.40 kg |
| Housing Material | Stainless steel probe body |
FAQ
FAQ
Q1: What is the purpose of the 330101-02-12-10-02-00 probe?
It measures shaft vibration, displacement, and position using an 8 mm probe tip within the 3300 XL monitoring system.
Q2: What does “12-10” indicate in the model number?
“12” identifies a 12-inch probe case length, while “10” specifies a total cable length of 1.0 metre.
Q3: What does the “02” connector option mean?
It denotes a reverse-polarity coaxial connector compatible with matching proximitor sensors.
Q4: What is the function of the reverse-polarity connector?
It prevents mismatched connections and ensures correct sensor–proximitor pairing.
Q5: What does the “00” at the end of the model number represent?
It indicates the standard, globally available version with no regional customisation.
Q6: Is this probe compatible with 3300 XL Proximitor Sensors?
Yes, provided that the proximitor version is designed for 8 mm probes with reverse-polarity connectors.
Q7: Can the probe withstand harsh industrial environments?
Yes, the stainless-steel body and –35 °C to +177 °C temperature range make it suitable for demanding locations.
Q8: What are the physical dimensions and weight of the probe?
Probe tip diameter: 8 mm ; Overall case length: 12 in ; Total length: 1.0 metre ; Weight: ≈ 0.40 kg.
