Technical Specifications
| Parameter | Specification |
|---|---|

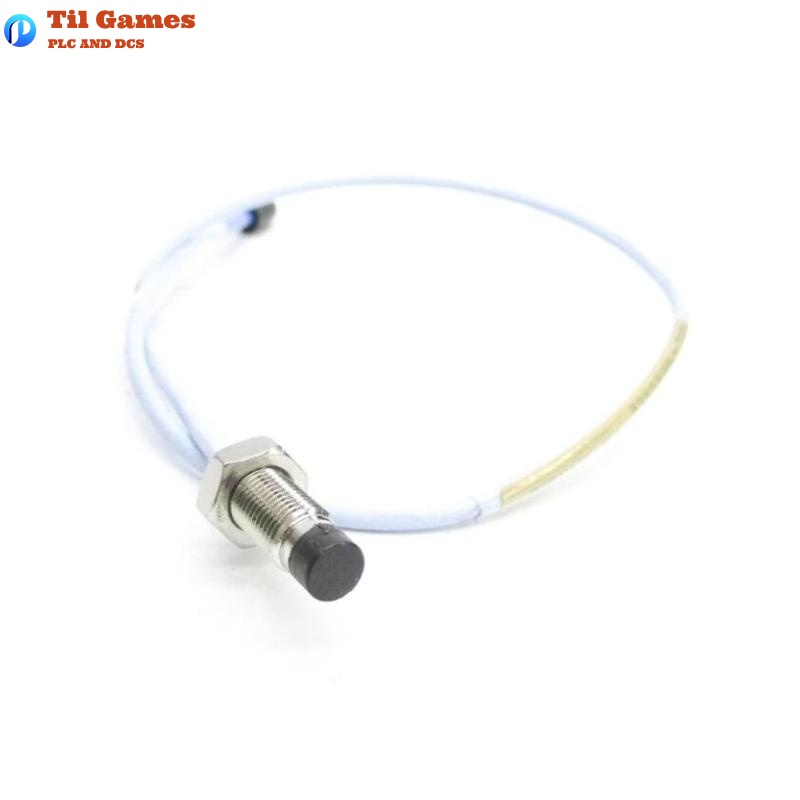

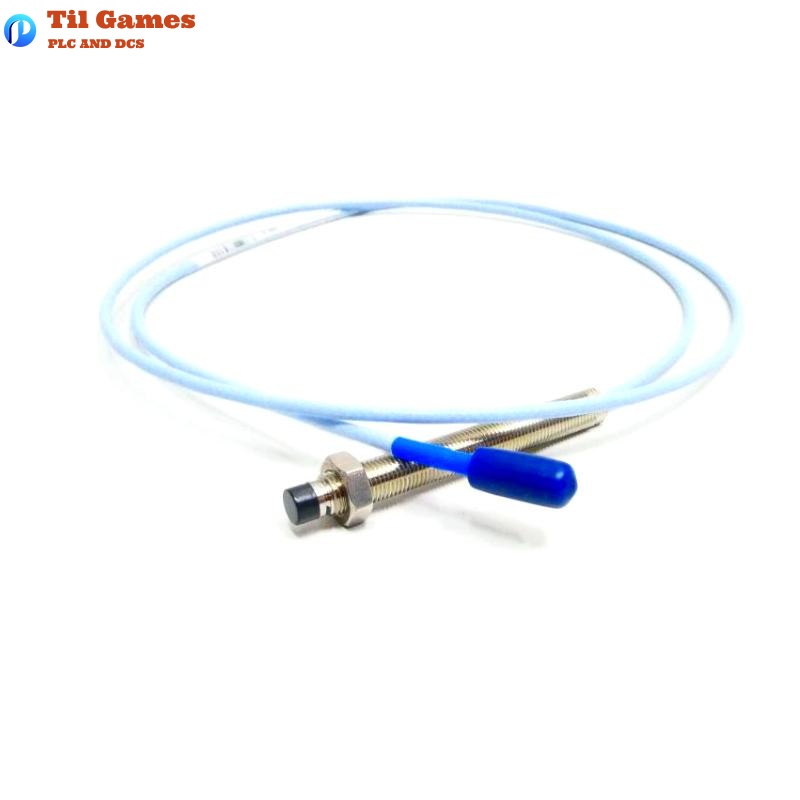

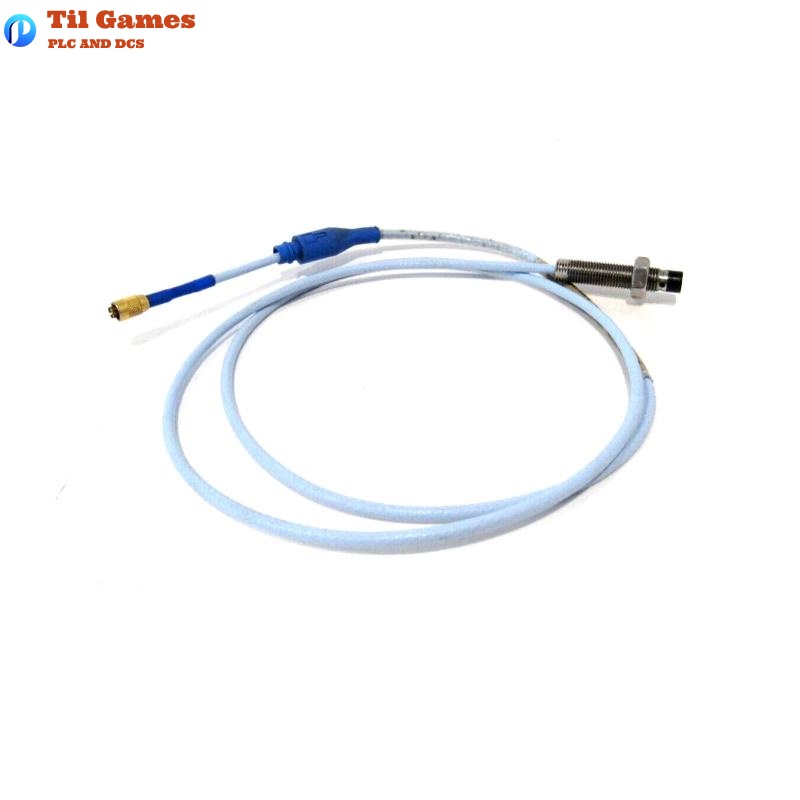

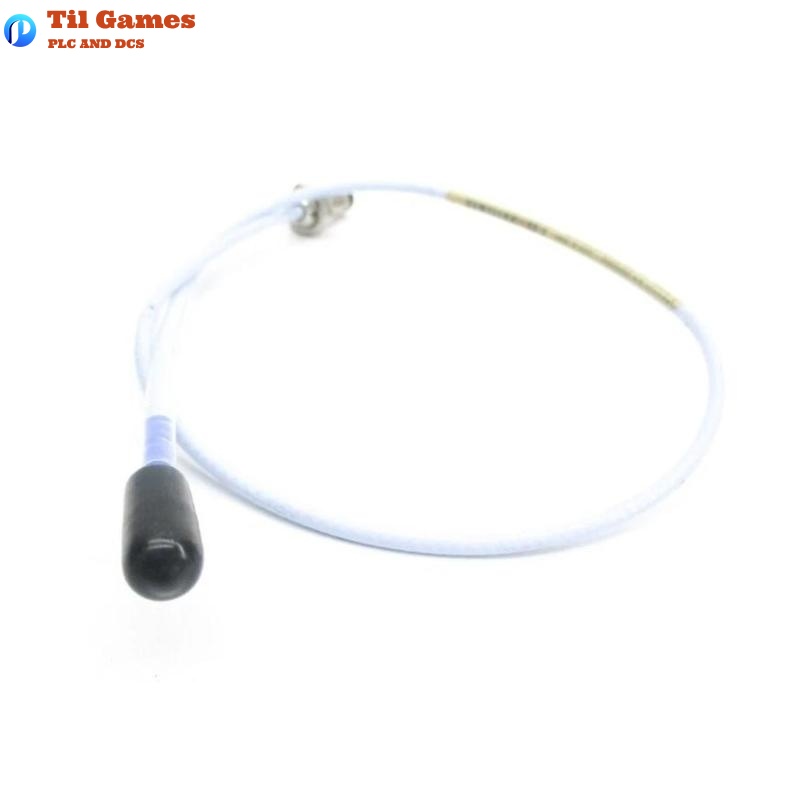

| Model | Bently Nevada 330101-12-30-10-02-05 |
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | AISI 303 or 304 stainless steel |
| Cable Type | 75Ω triaxial, FEP insulated |
| Connector | Miniature coaxial ClickLoc (gold-plated brass or beryllium copper) |
| Linear Range | 2 mm (80 mils), -1 to -17 VDC |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5% (1 m/5 m system), ±6.5% (9 m system) |
| Recommended Gap Voltage | -9 VDC (~1.27 mm or 50 mils) |
| Output Resistance | 50 Ω |
| Power Supply Requirement | –17.5 VDC to –26 VDC, 12 mA max |
| Temperature Range (Probe) | –52°C to +177°C (Standard), up to +218°C (ETR) |
| Temperature Range (Cable) | –52°C to +177°C (Standard), up to +260°C (ETR) |
| Temperature Range (Sensor) | Operating: –52°C to +100°C; Storage: –52°C to +105°C |
| Frequency Response | 0–10 kHz (±3 dB), up to 305 m field wiring |
| Minimum Shaft Diameter | 50.8 mm (2 in), recommended: 76.2 mm (3 in) |
| Minimum Target Size | 15.2 mm (0.6 in) diameter |
| Cable Bend Radius | 25.4 mm (1.0 in) minimum |
| Probe Pressure Seal | Viton® O-ring (not pressure tested by default) |
| Relative Humidity (Probe) | <3% change in ASF at 93% RH for 56 days |
| EMC/Compliance | CE, FCC Part 15, RoHS, SIL 2/3, ATEX, IECEx, CSA |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
FAQ
FAQ
Q1: What are the main applications for this probe?
A1: It is mainly used for vibration and position monitoring in fluid-film bearing machines, as well as Keyphasor reference and speed detection.
Q2: Does this probe comply with API 670 standard?
A2: Yes, the standard 3300 XL 8 mm system complies with the mechanical, linear range, accuracy, and thermal stability requirements of API 670.
Q3: Is the probe interchangeable with other Bently components?
A3: Yes, it is fully interchangeable with non-XL 3300 5 mm and 8 mm system components, eliminating the need for component matching.
Q4: Can the probe be used in high-temperature environments?
A4: Yes. The standard version supports up to 177°C, while the ETR version supports up to 218°C for the probe and 260°C for the cable.
Q5: How is the probe connected to the extension cable?
A5: Using ClickLoc connectors that provide tool-free, secure connections. The connector “clicks” when properly tightened.
Q6: Is fluid leakage protection available?
A6: Yes. Optional FluidLoc cable technology prevents oil and fluid from leaking through the cable interior.
Q7: What is the linear measurement range of the probe?
A7: It supports a linear range of 2 mm (0.25 mm to 2.3 mm), equivalent to 10 to 90 mils.
Q8: Is the sensor resistant to electromagnetic interference?
A8: Yes. The 3300 XL Proximitor Sensor offers enhanced RFI/EMI immunity and is CE compliant without requiring shielded conduit.
